|Place of Origin:||CHINA|
|Model Number:||Z1 2 / 2 - Way|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Closed|
|Temperature:||0 ~ 65 ℃||Connection:||Thread|
|Action:||Direct Acting||Body:||Forged Brass , Stainless Steel|
|Pressure:||0 - 8kgf / Cm ²||Port Size:||1 / 8 " ,1 / 4" ,3 / 8 " ,1 / 2 "|

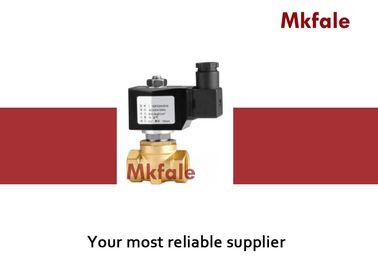

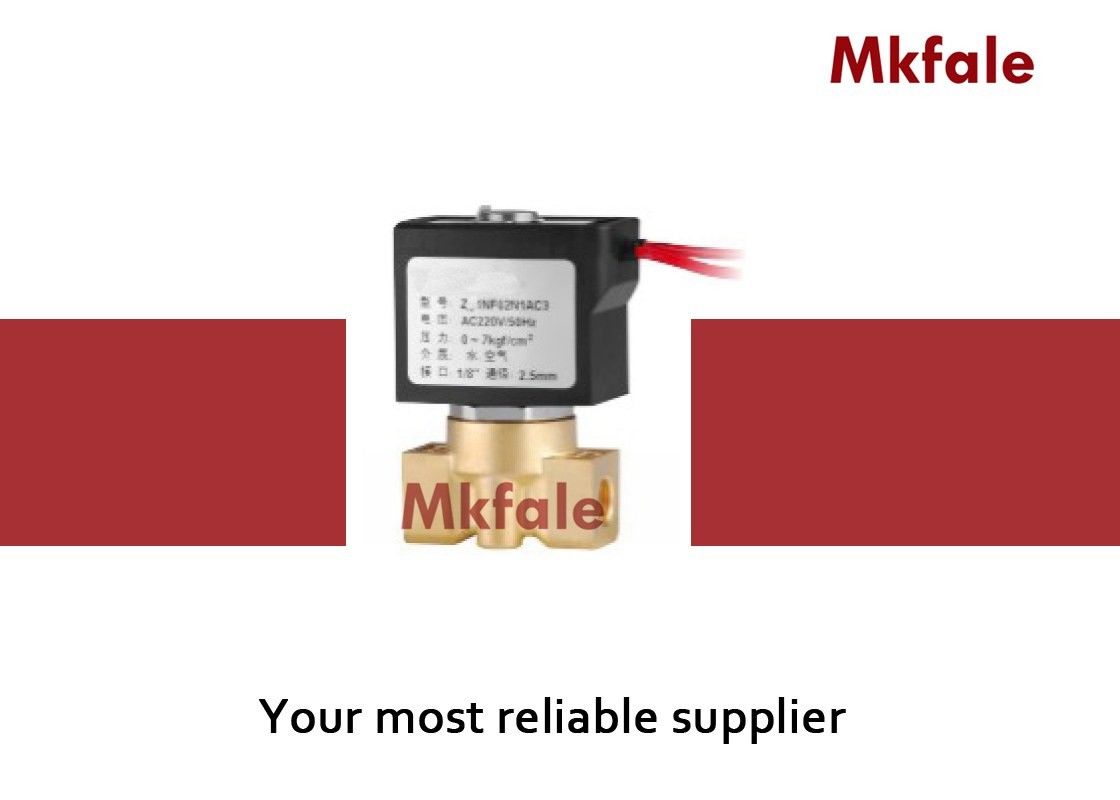

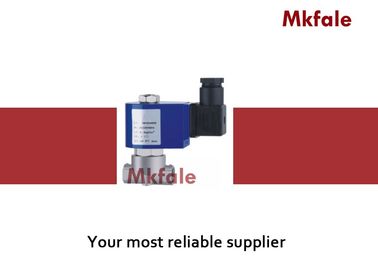

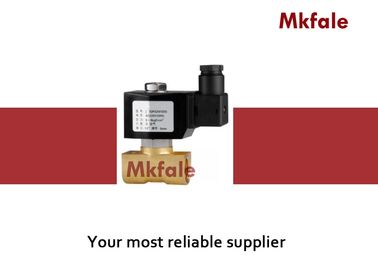

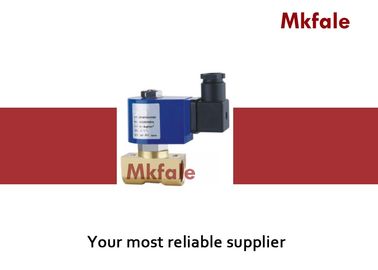

Z1 Compact Series 2 Way Solenoid Valve Direct Acting Normally Closed , Anti - Explosion
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions
permit , please install bypass pipe , easy maintenance ; When there is water drain to customize
solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
Ction time is very short at high frequency generally choose directly acting , large diameter
choose fast series .
General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure
in the pipeline , otherwise life will shorten or other unexpected circumstances .
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
1 : 2 - Way normally closed solenoid valve , Closed when de - energized , Open when energized . Body material : brass
2 : Max . Allowable pressure 16kgf / cm2 ; Fluids Temp : 0 ℃ ~ 120 ℃
3 : Serialized products , small in size , large flow rate , widely use
4 : Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction .
5 : Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC / 50 / 60HZ 24VDC / 12VDC / ; Voltage Tolerance : + 10 % to - 10 % applicable voltage
6 : Coil can fix Germany Nass Coil , For orifice under DN25 only .
7 : This series valves are offered NBR , VITON , EPDM etc for Seals and diaphragm to provide on - off control of various fluids .
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
