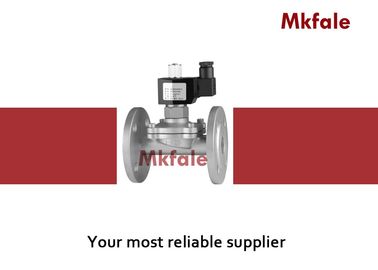

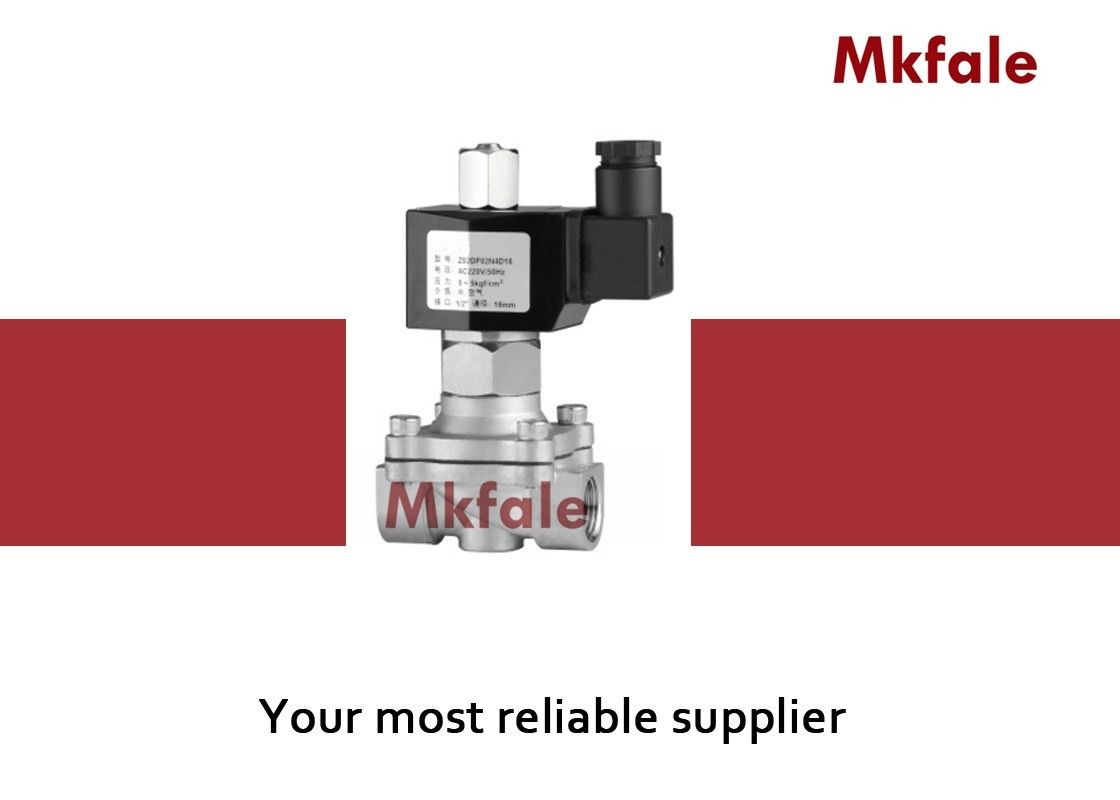

High Performance Water Solenoid Valve With 304 / 316 Stainless Steel Body
Applicability :
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . About the working pressure difference , the pipeline high - pressure difference less than
0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of
solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
Reliability
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
Security
General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure
in the pipeline , otherwise life will shorten or other unexpected circumstances .
Details
1: Two Way normally open solenoid valve , open when de - energized , Closed when energized .
2: Body material : SS304 ( Standard ) , SS316 ( Special Made )
3: Max. Allowable pressure 10kgf / cm ² , Ambient Temp . 0 ℃ ~ 65 ℃
4: Serialized products , small in size , large flow rate , widely use .
5: Flow sa the arrow , mounts in any position ; Best position is Solenoid Vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VVDC / 12VDC
7: This series Valves are offered NBR ` VITON ` EPDM ect for Seals and diaphragm to provide on - off control of various fluids
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
FAQ
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
