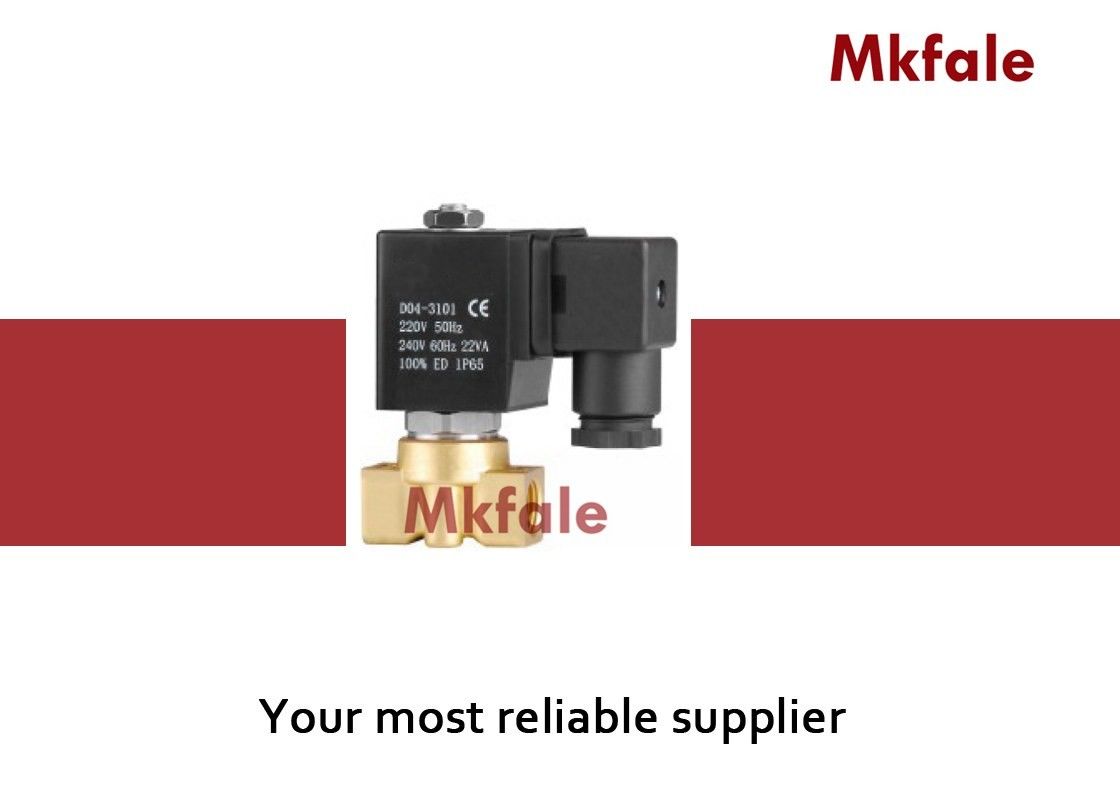

P1 Compact Series 2 / 2 Way Water Solenoid Valve , Brass Solenoid Valve For Water

P1 Compact Series 2 / 2 Way Water Solenoid Valve , Brass Solenoid Valve For Water

P1 Compact Series 2 / 2  Way Water Solenoid Valve , Brass Solenoid Valve For Water

Product Details:

Place of Origin: CHINA
Brand Name: Mkfale
Model Number: P1 2 / 2 Way Brass Vlave

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000Pcs / Year
Contact Now
Detailed Product Description
Medium: Water , Hot Water , Air , Gas , Oil Etc Type: Normally Closed
Temperature: 0 ~ 65 ℃ Connection: Thread
Action: Direct Acting Body: Forged Brass , Stainless Steel 316
Pressure: 0 ~ 13 Kgf / Cm ² Port Size: 1 / 8 " ,1 / 4" ,3 / 8 " ,1 / 2 "
High Light:

two way solenoid valve

,

direct acting solenoid valve

P1 Compact Series 2 / 2 Way Water Solenoid Valve , Brass Solenoid Valve For Water



Applicability


1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
4 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .

5 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness

Reliability


Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .


Security


1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2. Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

Economy


There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products


Details

1: 2 Way normally closed solenoid valve , Closed when de - energized , open when energized .
2: Serialized products , small in size , large flow rate , widely use .
3: Body material : forged brass . 316 stainless steel .
4: Ambient Temp . 0 ℃ ~ 65 ℃ , Fluids Temp 0 ℃ ~ 130 ℃
5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC ; Voltage Tolerance : + 10 % to - 10 % applicable voltage .
7:This series valves are offered NBR ` VITON ` EPDM etc for Seals and diaphragm to provide on - off control of various fluids .
8: Coil can fix SM Coil . AC220V / AC110 / AC24V / DC24V




Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .


FAQ

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
