|Place of Origin:||CHINA|
|Model Number:||P5 2 / 2 Way Direct Acting|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Closed|
|Temperature:||0 ~ 65 ℃||Connection:||Thread|
|Action:||Direct Acting||Body:||Forged Brass , Stainless Steel 316|
|Pressure:||0 ~ 16 Kgf / Cm ²||Port Size:||1 / 4" ,3 / 8 " ,1 / 2 "|

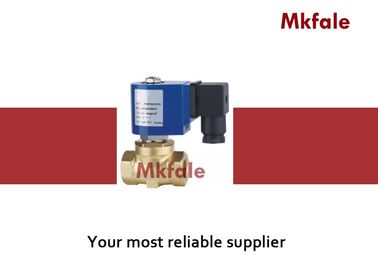

5 Port Solenoid Water Shut Off Valve Normally Closed , 0 -16 Kgf / Cm ² Pressure
1 . Fluid temperature must be less than the marked temperature .
2 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness
3 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
4 . Pay attention to the environmental temperature on the influence of solenoid valve .
5 . Power supply current and power consumption should be selected according to the output capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .
Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .
1 . Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
2 . Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
1: 2 Way normally closed solenoid valve , Closed when de - energized , open when energized .
2: Serialized products , small in size , large flow rate , widely use

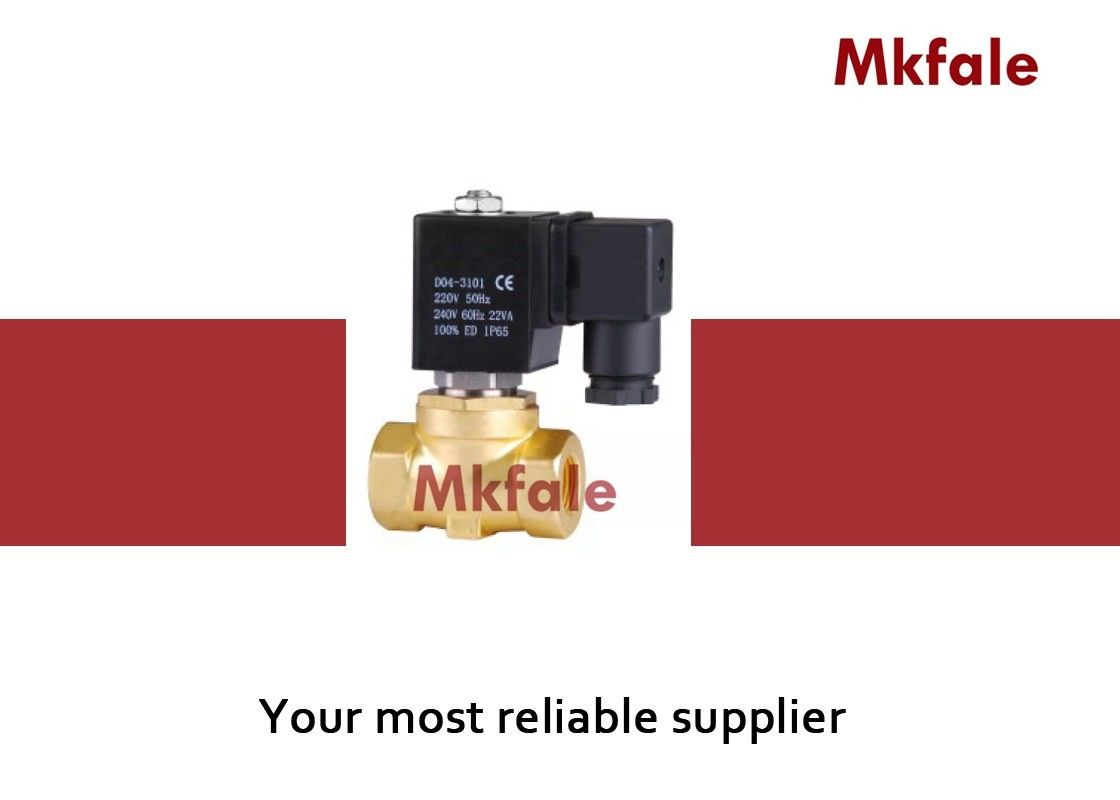

3: Body material : forged brass . Orifice : Φ 10 . 5mm
4: Ambient Temp. 0 ℃ ~ 65 ℃ , Fluids Temp : 0 ℃ ~ 130 ℃ .
5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction .
6: Voltage: 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC ;
Voltage Tolerance : + 10 % to - 10 % applicable voltage
7: This series valves are offered NBR , VITON , EPDM , etc . For Seals and diaphragm to provide on - off control of various fluids .
1: 2 Way Normally closed solenoid valve , closed when de - energized , open when energized .
2: Serialized produvts , small in size , large flow rate , widely use

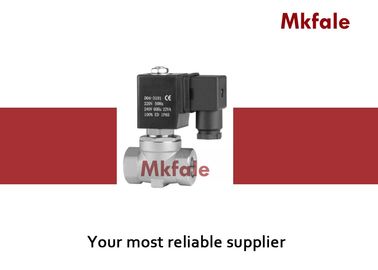

3: Body material : SS316 Orifice Φ 8mm
4: Ambient Temp 0 ℃ ~ 65 ℃ Fluids Temp . : 0 ℃ ~ 130 ℃
5: Flows as the arrow , mounts in any position ; best position is solenoid valve vertical and upright direction .
6: Voltage : AC24V / 110V / 220V / 230V / 240V 50 / 60HZ DC24V / 12V /
Voltage Tolerance : + 10 % ~ - 10 % applicable voltage
7: This series valves are offered NBR , VITON , EPDM Etc , Forseals and diaphragm to provide on / off control of various fluids .
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: 12-18month quality guarantee
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
