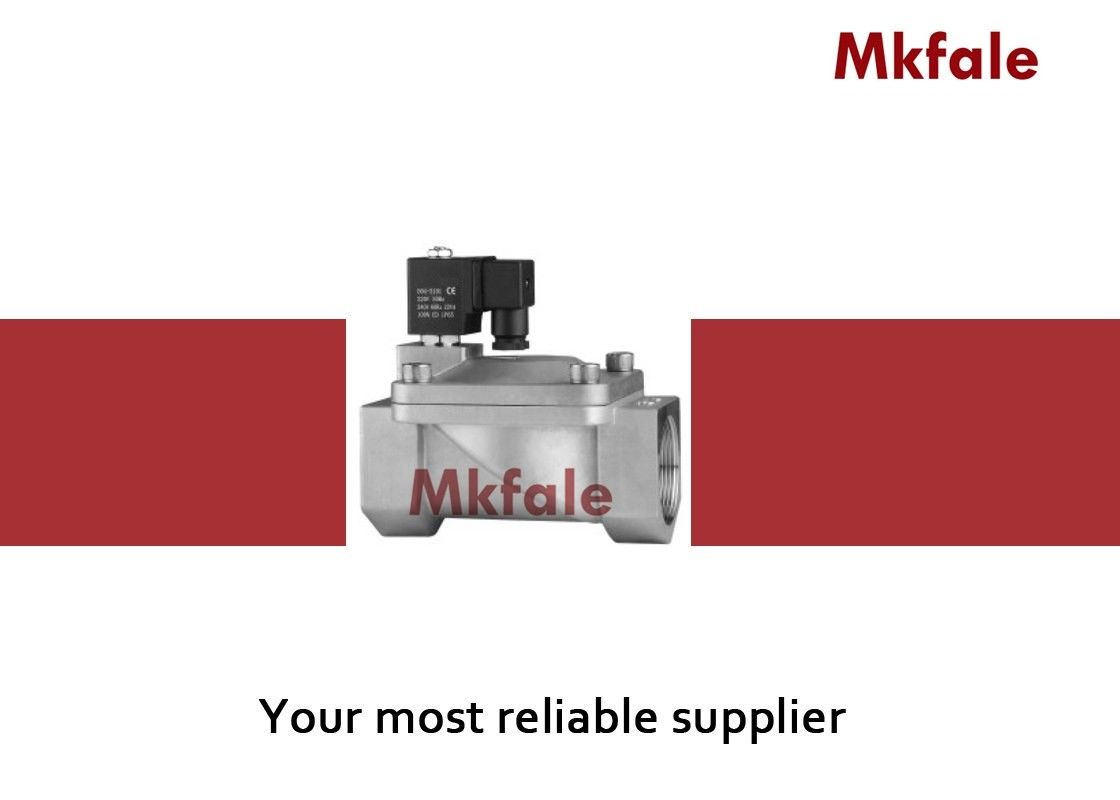

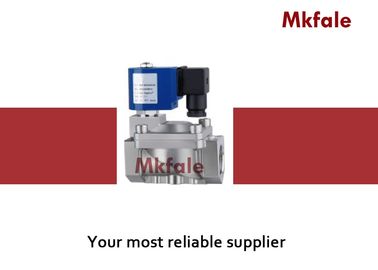

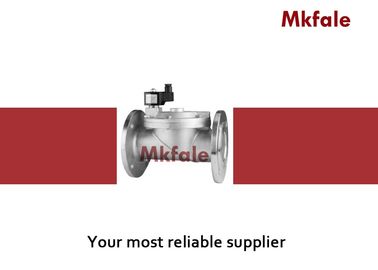

P7 Two Way Water Solenoid Valve With 304 / 316 Stainless Steel Material Body

P7 Two Way Water Solenoid Valve With 304 / 316 Stainless Steel Material Body

    • P7 Two Way Water Solenoid Valve With 304 / 316 Stainless Steel Material Body
    • P7 Two Way Water Solenoid Valve With 304 / 316 Stainless Steel Material Body
    • P7 Two Way Water Solenoid Valve With 304 / 316 Stainless Steel Material Body
  • P7 Two Way Water Solenoid Valve With 304 / 316 Stainless Steel Material Body

    Product Details:

    Place of Origin: CHINA
    Brand Name: Mkfale
    Model Number: P7 Large Diameter Pilot Operated

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10555 / Year
    Contact Now
    Detailed Product Description
    Medium: Water , Hot Water , Air , Gas , Oil Etc Type: Normally Closed
    Temperature: 0 ~ 65 ℃ Connection: Thread , Flange ( DN 25 - 100 )
    Action: Pilot Operated Body: Stainless Steel 304 / 316
    Pressure: 0 . 5 ~ 16 Kgf / Cm ² Port Size: 3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "
    High Light:

    two way solenoid valve

    ,

    miniature high pressure solenoid valve

    P7 Two Way Water Solenoid Valve With 304 / 316 Stainless Steel Material Body







    Applicability



    1 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .

    2 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness

    3 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .

    4 . Pay attention to the environmental temperature on the influence of solenoid valve .

    5 . Power supply current and power consumption should be selected according to the output capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .



    Reliability


    Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .



    Security


    1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

    2.Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

    3.Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .



    Economy


    There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products





    Details



    1: 2 Way normally closed solenoid valve , Closed when de - energized , open when energized .

    2: Body material: 316 stainless steel

    3: Max. Allowable pressure 20kgf / cm ² ; Ambient Temp . 0 ℃ ~ 65 ℃

    4: Serialized products , small in size , large flow rate , widely use

    5: Flow as the arrow , mounts in any position ; Best position is Solenoid Vertical and upright direction .

    6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC

    7: Coil can fix Germany Nass Coil , for Orifice under DN25 only

    8: This series valves are offered NBR , VITON , EPDM etc for Seals and diaphragm to provide on -off control of various fluids.




    Why choose us





    1: Reliable quality assured and active after-sell service
    2: 12-18month quality guarantee

    3: Various style for each products and completely series industry instruments.
    4: Large stock for fast shipping .
    5: High quality with competitive price .
    6: Sample order & small quantity order is acceptable .

    FAQ



    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .

    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.
