|Place of Origin:||CHINA|
|Model Number:||A4 Pilot Operated Pston|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Open|
|Temperature:||0 ~ 65 ℃||Connection:||Thread , Flange ( DN 25 - 50 )|
|Action:||Pilot Operated Piston||Body:||Stainless Steel 304 / 316|
|Pressure:||0 . 5 ~ 10 Kgf / Cm ²||Port Size:||3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "|

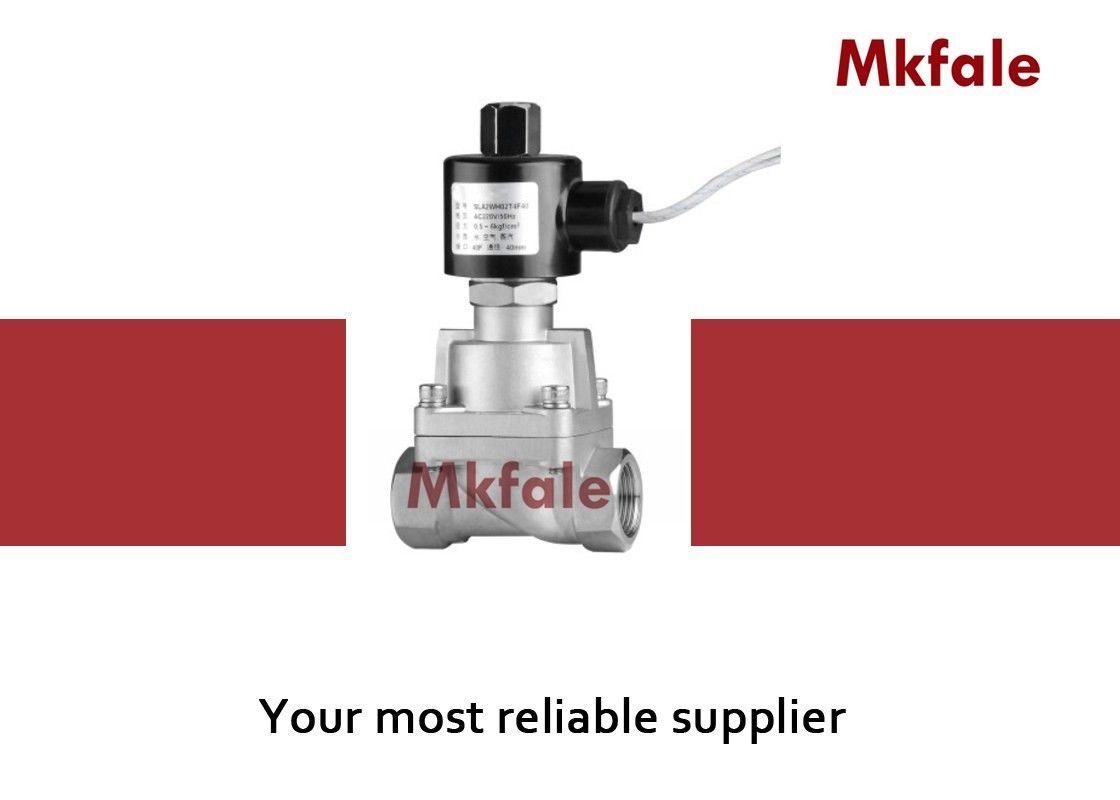

Electric SS Water Solenoid Valve Normally Open / Fast Acting Solenoid Valve For Water Treatment System
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
4 . Pay attention to the environmental temperature on the influence of solenoid valve .
5 . Power supply current and power consumption should be selected according to the output capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .
Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .
1 . General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2 . Explosive environment must choose corresponding anti - explosion type.
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products.
1: 2 Way normally open solenoid valve ; Open when de - energized , closed when energized .
2: Body material forged 304 stainless steel ( standard ) , 316 stainless steel ( special made ) .
3: Max . Allowable pressure 12kgf / cm ² ; Ambient Temp . 0 ℃ ~ 65 ℃ ( F CLASS ) , 0 ℃ ~ 80 ℃ ( H CLASS )
4: Serialized products , small in size , large flow rate , widely use .
5: Flow as the arrow , mounts in any position ; Best position is Solenoid vertical and upright direction.
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC / 50 / 60 HZ 24VDC / 12VDC
7: This series valves are offered Teflon for Seals to Seals to provide on - off control of various fluids .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
