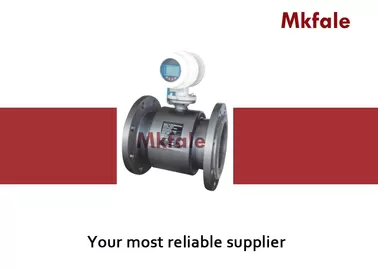

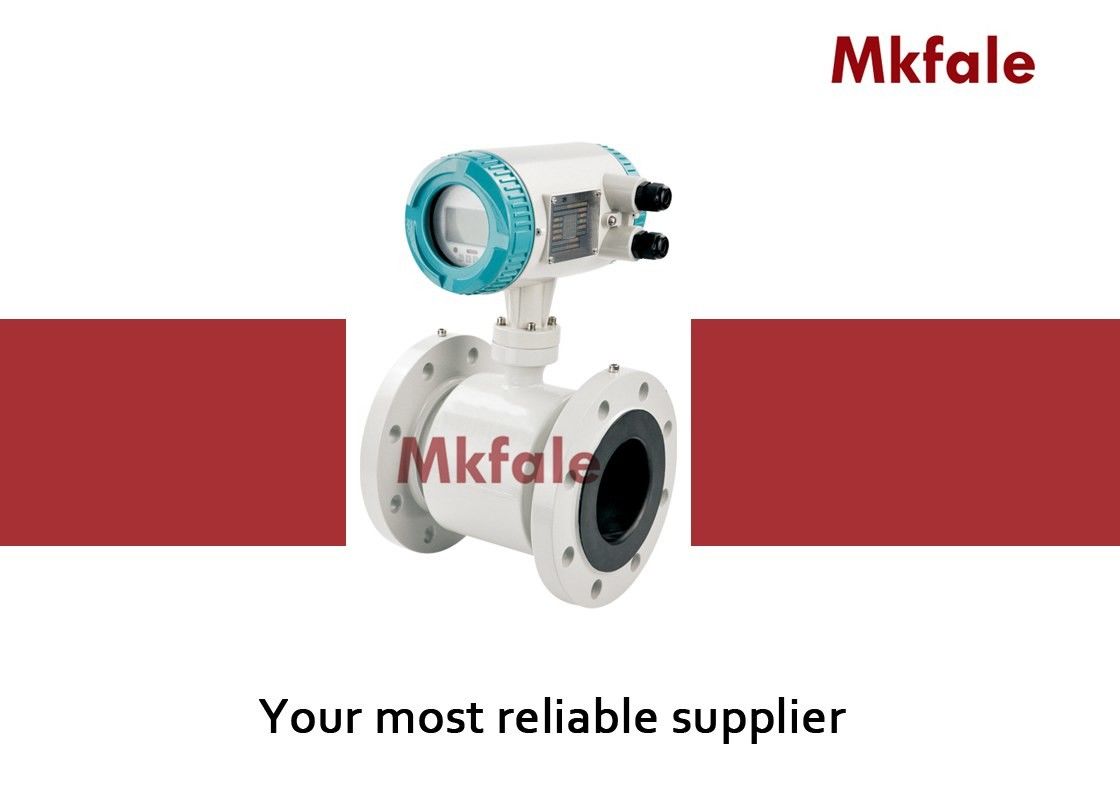

Intelligent Work Digital Flow Meter , Magnetic Inductive Flow Meter For Sewage Water
Water Electromagnetic Flow meter,Vortex flow meter,Ceramic Liner electromagnetic flow meter,Sanitary electromagnetic flow meter,Turbine flow meter,Ultrasonic flow meter,Ultrasonic level meter,Mass flow meter,Variable area flow meter(Metal Rota Meter),Stainless steel Gauge,oil liquied gauge,Bimetal thermometer,pressure transmitter,level transmitter,Temperature transmitter,needle valve,Water solenoid Valve,Steam Solenoid Valve
Description
Self - diagnosis , intelligent work
Accuracy : ± 5 % ; Flow rate : + 0 . 3m / s
Low discharge measurement accurary and two way measurement .
Underground sensor ( IP68 ) installed without building measuring well
Could and heat measure function
Double frequency excitation , good zero stable
Build - in ground electrode already
Display : Local flow rate & Total & Flow velocity
Application
Fluid : Any electrically conductive liquid ; Conductivity : ≥ 5 us / cm ;
Temperature : Neoprene / PU : - 10C ± 60C ; PTFE / PFA / F46 : - 10 C - + 120C
Standard : JB / T9248 - 1999
Nominal Diameter : DN10 ~ DN3000
Body Material : Cast Steel , Stainless Steel 304 , Stainless Steel316L
Liner Material : PTFE , PFA , Neoprene , Polyurethane , Ceramic
Electrode Material : 316L ; Hastelloy B ; Hastelloy C ; Titanium ; Platinum - iridium ; Tantalum ; Stainless Steel covered with tungsten carbide
Connection Type : Flange ; Clamp ; Sanitary ; Wafer ; Thread
Structure Type : Integral type ; Remote type ; Remote type immersion ; Integral type Ex - proof ; Remote type Ex - Proof
Flange Type : GB / T9119 - 2000 ; JIS 10K ; JIS20K ; ANSI150 ; ANSI300 ; DIN Pn10 ; Din Pn16 ; Bs4504 ; As 4087
Power : 24VDC ; 220VAC 50Hz
Output Communication :
Flow volume4 ~ 20ADC / pulse ;
Flow volume4 ~ 20ADC / RS232C communication
Flow volume4 ~ 20ADC / RS485 communication
Flow volume HART output / with communication
Converter Figure : Square ; Circular
Optional : Grouding electrode ; Coupled flange ; Entranc protectin flannge ; Scraper type elecrtode ; Other
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: High quality with competitive price .
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
