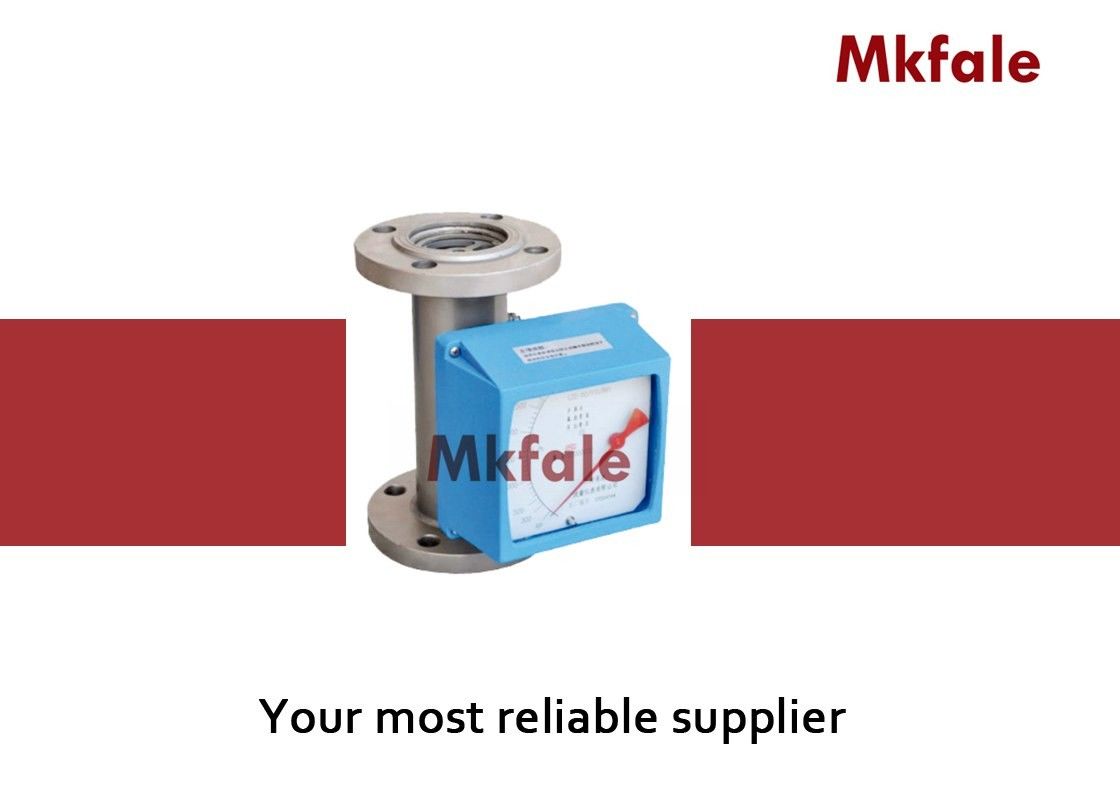

SMRT Variable Area Flow Meter Rota Flow Meter 304 / 316L Stainless Steel Pointer Type

SMRT Variable Area Flow Meter Rota Flow Meter 304 / 316L Stainless Steel Pointer Type

SMRT Variable Area Flow Meter  Rota Flow Meter  304 / 316L Stainless Steel Pointer Type

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMRT

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Body: Stainless Steel 304 / 316L Liner Body: PTFE
Power: 24VDC , 220VAC Fluid: Air ( Gas Damper For Option ) , Water
Accuracy: Standard Type:+2.5%FS,the Special Order:can Be Up To ±1.0%FS Flow Range: Water 2. 5~ 100000L/ H, Air 0. 7~ 3000m3/ H( See Form As Follow)

304 / 316L Stainless Steel Variable Area Flow Meter  Metal Tube Rotameter








Technical Specification



SMRT Variable Area Flowmeter

Description

SM series Variable area Flowmeter, has simple structure, reliable operation, wide applicable

scope, high precision, easy installation, etc,.Compared with glass tube rotameter, the series of

flowmeter with high pressure, high temperature resistance, strong security, simple reading and so

on.And can be used with opaque medium and corrosive medium flow measurement.Instrument tube

body and the flange is made of stainless steel (316L or 1 Cr18Ni9Ti). The conventional orifice, the

float is made of stainless steel, corrosion of the orifice plate, float and pipe body lined with PTFE

anti-corrosion materials.

Measure

Principle

Variable area flowmeter, namely in the vertical measure tube,when fluid through a pipe upwards,

float up, lift and float at a particular location float suffered gravity balance, the float and orifice (or

taper pipe) flow between keeping clearance area.Clearance area is proportional to the higher level

of float, namely the size of the float a highly representative of the flow.Float up and down, in the

form of a magnetic coupling transfer position to the external indicators, making the indicator pointer

following the float, and with the help of a CAM plate to make the size of the pointer to indicate linear

flow value.

Design selection Z: Pointer, D: LCD
Medium Air(Gas damper for option), Water
Body Material SS304,SS316L Liner:PTFE

Remote transmiter

selection

Es1 electricity remote transmit:0~10mA DC three wire

Es2 electricity remote transmit:4~20mA DC two wire

Ex-proof type ExiaⅡ CT4

Measure tube

special requirement

Warmkeeper
Alarm Selection K1 , K2 ( SC 3.5 - NO )
Power 24VDC,220VAC
Installation Bottom to top;Bottom to top side;Bottom side to top side;Left to right;Right to left;




 Technique Parameter



Connection Flange type,thread type;Quick joint type
Flow range Water 2.5~100000L/h, Air 0.7~3000m3/h(see form as follow)
Measure ratio DN≤100mm; 10:1, DN>100mm; 5:1
Accuracy Standard type:+2.5%FS,the special order:can be up to ±1.0%FS

Max working

pressure

DN15,DN25,DN40,DN50:4.0MPa; DN80,DN100,DN150:1.6MPa
Medium temperature Normal:-40℃~-100℃,High temperature:-80℃~-250℃
Ambient temperature -25℃~+55℃
Protection grade IP65
Viscosity DN15:≤5mPa.S,DN25~DN150:≤250mPa.s
Standard JB/T6844-1993




Specification





ND

(mm)

Work

number

Flow range Pressure loss KPa
Water L/h* Air m3/h* Water Air
normal type Anti-corrosive normal type Anti-corrosive normal type Anti-corrosive
15 1A 2 . 5 ~ 25 - 0.07~0.7 6.5 - 7.1
1B 4.0~40 2.5~25 0.11~1.1 6.5 5.5 7.2
1C 6.3~63 4.0~40 0.18~1.8 6.6 5.5 7.3
1D 10~100 6.3~63 0.28~2.8 6.6 5.6 7.5
1E 16~160 10~100 0.48~4.8 6.8 5.6 8.0
1F 25~250 16~160 0.7~7.0 7.0 5.8 10.8
1G 40~400 25~250 1.0~10 8.6 6.1 10.0
1H 63~630 40~400 1.6~16 11.1 7.3 14.0
25 2A 100~1000 63~630 3~30 7.0 5.9 7.7
2B 160~1600 100~1000 4.5~45 8.0 6.0 8.8
2C 250~2500 160~1600 7~70 10.8 6.8 12.0
2D 250~4000 250~2500 11~110 15.8 9.2 19.0
40 4A 500~5000 300~3000 12~120 10.8 8.6 9.8
4B 600~6000 350~3500 16~160 12.6 10.4 16.5
50 5A 630~6300 400~4000 18~180 8.1 6.8 8.6
5B 1000~10000 630~6300 25~250 11.0 9.4 10.4
5C 1600~16000 1000~10000 40~400 17.0 14.5 15.5
80 8A 2500~25000 1600~16000 60~600 8.1 6.9 12.9
8B 4000~40000 2500~25000 80~800 9.5 8.0 18.5
100 10A 6300~63000 4000~40000 100~1000 15.0 8.5 19.2
150 10B 20000~100000 - 600~3000 19.2 - 20.3




Why choose us



1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Provide free products information .



FAQ



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
