|Place of Origin:||China|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Thread Type:||NPT / BSP （Female ）||Material:||Aluminum|
|Port Size:||3 / 4 " , 1 " , 1 - 1 / 2 "||Flow Range:||2 ~ 20GPM , 5 - 50GPM , 10 -100GPM|
|Accuracy:||0 . 5 % ~ 1 %||Repeatability:||0 . 1 %|

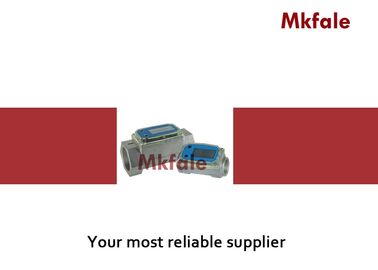

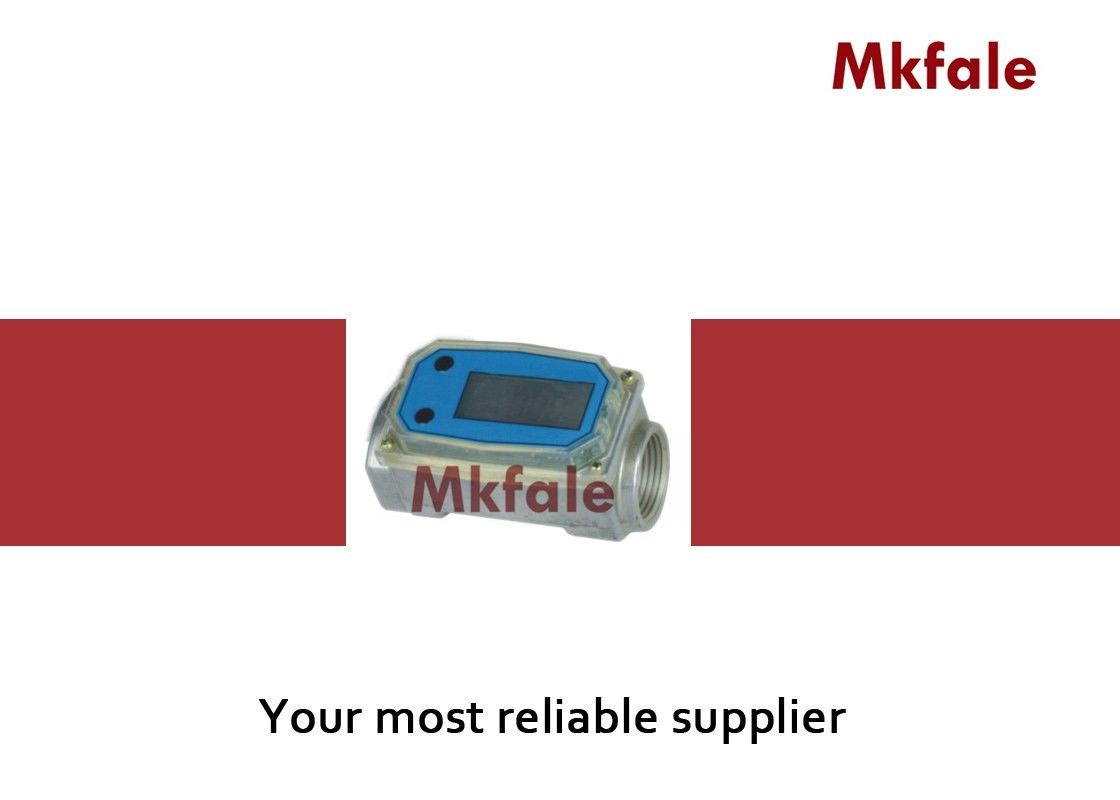

Portable Turbine Flow Meter , Digital Fuel Flow Meter Long Battery Duration
Turbine Digital Diesel Fuel Flow Meter
1. high accuracy
2. less maintainence
3. long battery duration
Only suirable with Diesel , or Biodiesel , Kerosene .
Models are available with NPT / BSP fittings
High precision , durable and compact turbine flow meters .
Designed to fit inline with the delivery hose or pipework
Local Display Computer Features : 2 Totals ( 1 Resettable , 1 Cumulative );
Factory Calibration in gallons and litres ; 2 Useer Calibrations and Flowrate .
Power by 2 × AAA Batteries ( Approx life 9000 hours )
GPI digital turbine flowmeters are best suited for petroleum based products. The modular design allows for maximum flexibility in meeting customer’s applications. Models are available with NPT/BSP or flange fittings.
High precision, durable and compact turbine flowmeters.
Modular design allows for use with Output Modules, Sensors and Remote Transmitters.
Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and litres; 2 User Calibrations and Flowrate.
Internal parts are simple to replace for easy maintenance.
Lightweight, compact design allows for easy installation.
Powered by Lithium batteries for approximately 9,000 hours.
Technical Specification Table
|Fitting Type||NPT or BSP ( Female )|
|Meter Sizes Available||3 / 4 “ , 1 “ , 1 – 1 / 2 “|
|Flow Range||3 / 4 “||2 ~ 20 GPM ( 7 . 6 – 75.7 LPM )|
|1 ‘||5 ~ 50 GPM ( 18. 9 – 190 LPM )|
|1 – 1 / 2 “||10 ~ 100 GPM ( 38.0 ~ 380 LPM )|
( % of Reading )
|3 / 4 “||± 1 %|
|1 “||± 1 %|
|1 – 1 / 2 ‘||± 0 . 5 %|
|Repeatability||± 0 . 1 %|
|Pressure Rating||300PSI / 21BAR|
|Operating Temperature Range||
-40 °F to + 250 °F ( - 40 ℃ to + 121 ℃ )
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
