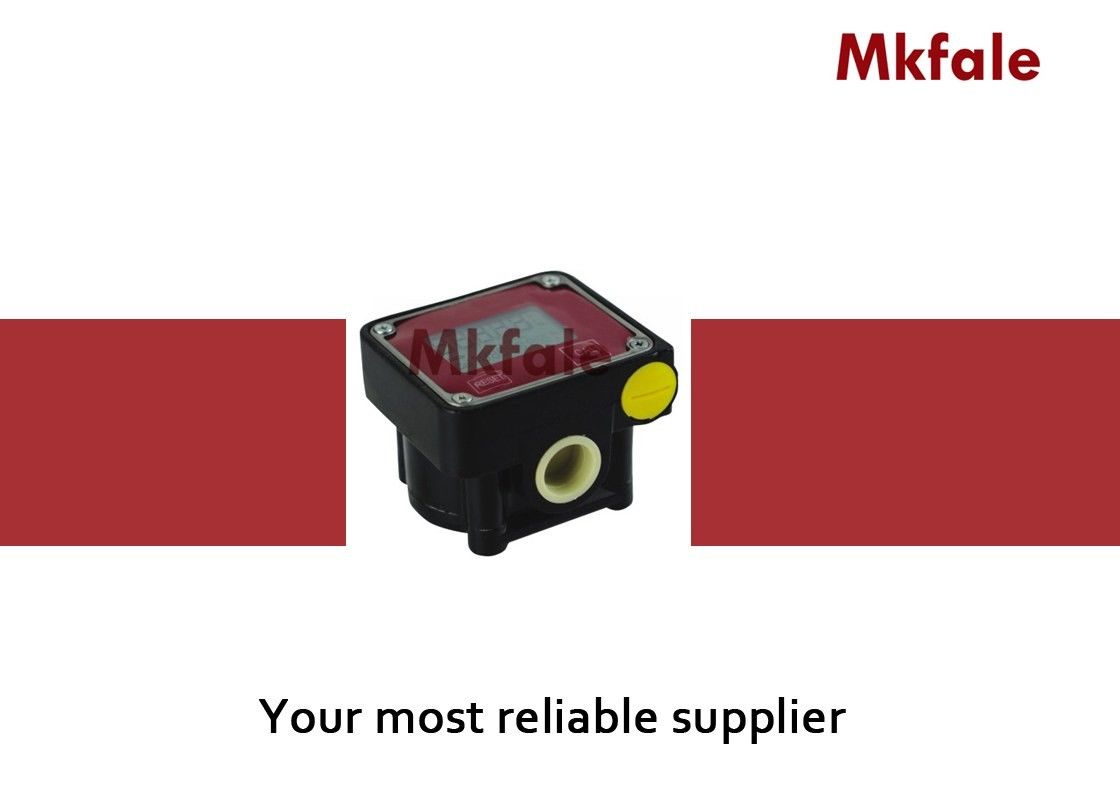

Oval Gear Positive Displacement Flow Meter BSPF Process Connection , 1 - 30 L / Min Flow Rate

Oval Gear Positive Displacement Flow Meter BSPF Process Connection , 1 - 30 L / Min Flow Rate

Oval Gear Positive Displacement Flow Meter BSPF Process Connection , 1 - 30 L / Min Flow Rate

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: HK400

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Inlet & Outlet: BSPF 1 / 2 " Accuracy: ± 0 . 5 %
Repeatability: 0 . 20 % Max. Pressure: 70 Bar
Flow Rate: 1 - 30L / Min Battery Power: 2 × 1 . 5V
High Light:

positive displacement water meter

,

Oval Gear Flow Meter

Oval Gear Positive Displacement Flow Meter BSPF Process Connection , 1 - 30 L / Min Flow Rate









Specification



Inlet & Outlet BSPF1/2"
Accuracy (after calibration) +-0.5%
Repeatability 0.2%
Max. Operationg Pressure 70 Bar
Flow Rate 1-30L/Min
Discharge Rate/Revolution 25ml/R
Battery Power 2×1.5V




Robust oval gear type meter shows up to 99999 litres

BSPF process connections

Max . pressure 70 bar

Accuracy ± 0 . 5 % , max temp 60 ℃

Aluminum construction , Acetic resin rotors

Electronic display with 5 digit register . 8 digit totaliser

Powered by 1× 3 . 6 V battery
