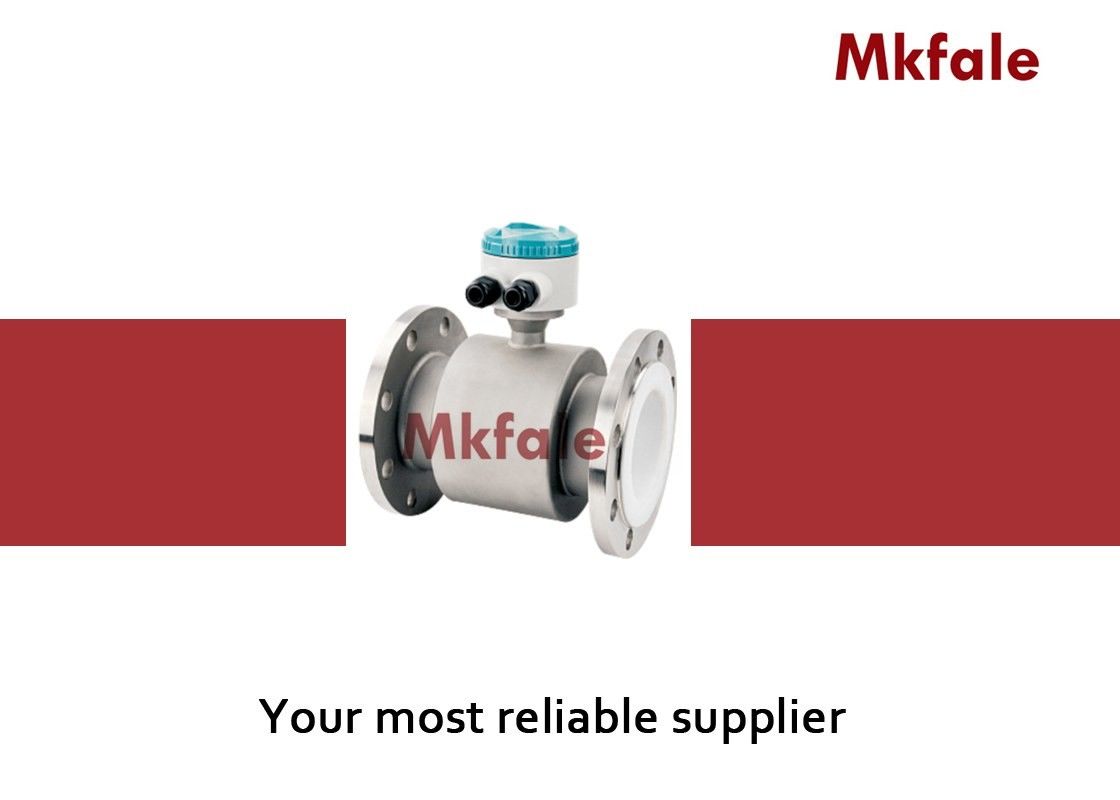

Remote Separate Electromagnetic Type Flow Meter , PTFE Anti Corrosion Liquid Flow Meter

Remote Separate Electromagnetic Type Flow Meter , PTFE Anti Corrosion Liquid Flow Meter

    • Remote Separate Electromagnetic Type Flow Meter , PTFE Anti Corrosion Liquid Flow Meter
    • Remote Separate Electromagnetic Type Flow Meter , PTFE Anti Corrosion Liquid Flow Meter
  • Remote Separate Electromagnetic Type Flow Meter , PTFE Anti Corrosion Liquid Flow Meter

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Model Number: SMEF Remote Separate Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Accurated: ± 5 % Flow Rate: + 0 . 3m / S
    Body: Cast Steel , Stainless Steel Diameter: DN10 ~ DN3000
    Conductivity: ≥ 5 Us / Cm Fluid: Any Electrically Conductive Liquid

    Remote Separate Electromagnetic Type Flow Meter , PTFE Anti Corrosion Liquid Flow Meter




    SMEF Integrated water  flow meter , SMEF Remote Separate Type Electromagnetic flow meter , SMCS Interated Type Electromagnetic flow meter, SMCS Remote Sepatate Type  clamped flow meter , SMCL Intearted Type sanitary flow meter , SMCL Ceramic flow meter, SMBP Integrated Type Battery  flow meter , SMTF Turbine flow meter.Stainless steel flow meter,Anti - Corrosion Flow meter ,SMFUF Ultrasonic flow meter,SMHUF Handheld Ultrasonic flow meter,SMPUF Portable Ultrasonic flow meter,SMUL Ultrasonic level meter,SMUO Ultrasonic open channel flow meter,SMMF mass flow meter,SMRT variable area flow meter ,rota flow meter,water flow meter



    Description

    Self - diagnosis , intelligent work
    Accuracy : ± 5 % ; Flow rate : + 0 . 3m / s
    Low discharge measurement accurary and two way measurement .
    Underground sensor ( IP68 ) installed without building measuring well
    Could and heat measure function
    Double frequency excitation , good zero stable
    Build - in ground electrode already
    Display : Local flow rate & Total & Flow velocity

    Application

    Fluid : Any electrically conductive liquid ; Conductivity : ≥ 5 us / cm ;
    Temperature : Neoprene / PU : - 10C ± 60C ; PTFE / PFA / F46 : - 10 C - + 120C
    Standard : JB / T9248 - 1999

    Nominal Diameter : DN10 ~ DN3000

    Body Material : Cast Steel , Stainless Steel 304 , Stainless Steel316L

    Liner Material : PTFE , PFA , Neoprene , Polyurethane , Ceramic

    Electrode Material : 316L ; Hastelloy B ; Hastelloy C ; Titanium ; Platinum - iridium ; Tantalum ; Stainless Steel covered with tungsten carbide

    Connection Type : Flange ; Clamp ; Sanitary ; Wafer ; Thread

    Structure Type : Integral type ; Remote type ; Remote type immersion ; Integral type Ex - proof ; Remote type Ex - Proof

    Flange Type : GB / T9119 - 2000 ; JIS 10K ; JIS20K ; ANSI150 ; ANSI300 ; DIN Pn10 ; Din Pn16 ; Bs4504 ; As 4087

    Power : 24VDC ; 220VAC  50Hz

    Output Communication :

    Flow volume4 ~ 20ADC / pulse ;
    Flow volume4 ~ 20ADC / RS232C communication
    Flow volume4 ~ 20ADC / RS485 communication
    Flow volume HART output / with communication

    Converter Figure : Square ; Circular

    Optional : Grouding electrode ; Coupled flange ; Entranc protectin flannge ; Scraper type elecrtode ; Other



    Why choose us



    1: Customize according to your special request .
    2: Provide free products information .

    3: Various style for each products and completely series industry instruments.
    4: Large stock for fast shipping .
    5: High quality with competitive price .



    FAQ


    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .

    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.

    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

    Q: What ' s your business scope ?
    A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
