|Place of Origin:||China|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Nominal Size:||63 , 75 , 100 , 160mm||Accuracy Class:||Class1 . 6 , Class2 . 5 ( Φ 63 , 75 Mm )|
|Ingress Protection:||IP44||Connection:||G3 / 8 , G1 / 4 , G1 / 2 , Or NPT Or Others|
|Temperature:||-10 ℃ ~ + 70 ℃||Over Pressure Limit:||130 % Of Full Scale|
|Filling:||Dry Type||Connection Material:||Stainless Steel 316L|

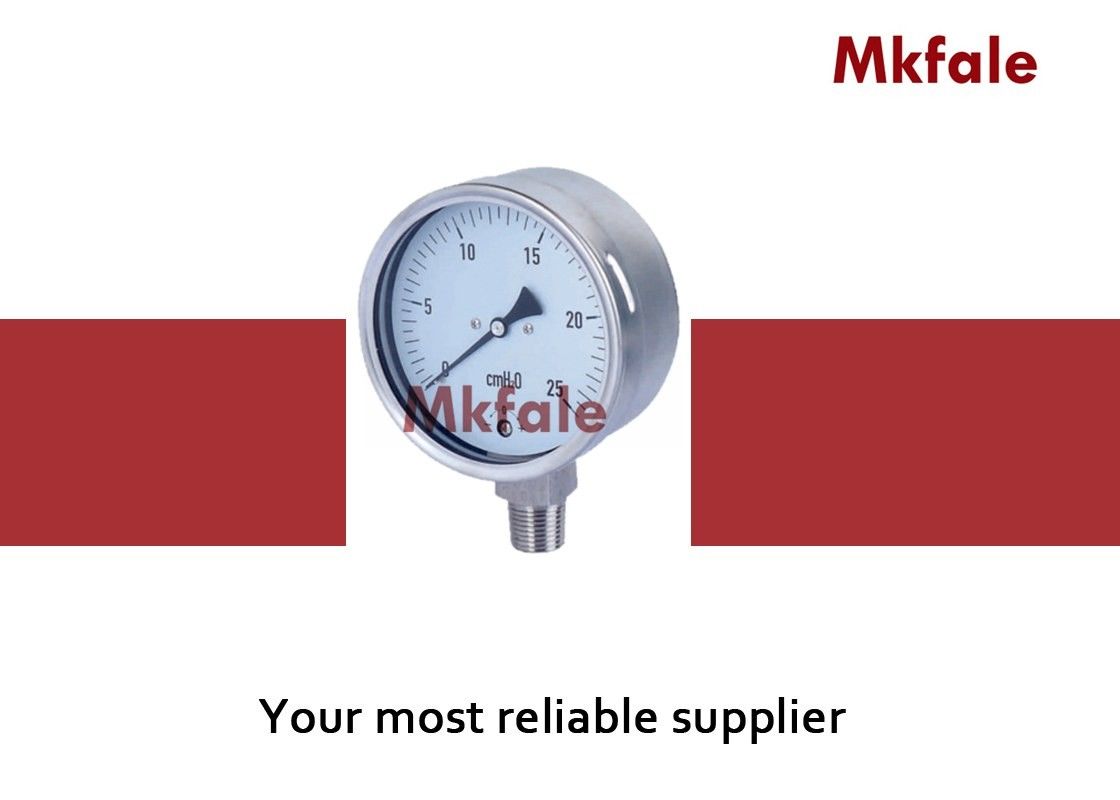

2 4 Inch Stainless Steel Pressure Gauge , Dry Type Digital Water Pressure Gauge
Technical Specification Table
STAINLESS STEEL CASE
SMSSD All Stainless
Steel Capsule Gauge
SMSSD Series is a premium capsule gauge designed for use in low pressure measurement on
extreme corrosive and severe environment. It is non fillable design and by removing the
bezeiring coulb access to zero adjustment zeroing screw on the front dial in replace of
adjustable pointer. Most popular in use in all industries such as process,mining,machine
tools,power plant,steel mills,pulp & paper,water & sewage and petrochemical plants.
Accuracy class 1.6, Interna calibration Device(ICD)
All stainless steel material,Blow-out-back, Knock-down system back and front flange
DIN case,bayonet lock design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Standard dial unit ranges
Scale ranges -600..0,0..10 to 1000Mbar
|Technical Specification||Nominal Size||63,75,100 and 160mm|
|Accuracy Class||Class 1.6,Class 2.5(Φ63,75mm)|
|Connection Size||G3/8 , G1/4,G1/2 or NPT or others|
Pressure 0..16 to 0..1000 mbar, *Φ63,75mm min range 16mbar
Vacuum -600 mbar..0, Campund -200..+400 mbar
|Tube Element Shape||Capsule type diaphragm tube|
|Operating Temperature||Ambient temperature -10° ..+70℃, Medium temperature 90℃ Max.|
Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
|Over Pressure Limit||130% of Full Scale|
|Dial Graduation||Black graduation on white for single range, Black and red graduation on white for dual ranges|
|Design Material||Casing and Bezel Ring||SS304|
|Sensing Element||Capsule type,SS316L|
|Window||Plain instrement glass|
|Window gasket||Industrial rubber seal|
|Pointer||Black painted aluminium|
|Dial Plate||Aluminium alloy|
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: One year quality guarantee
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
