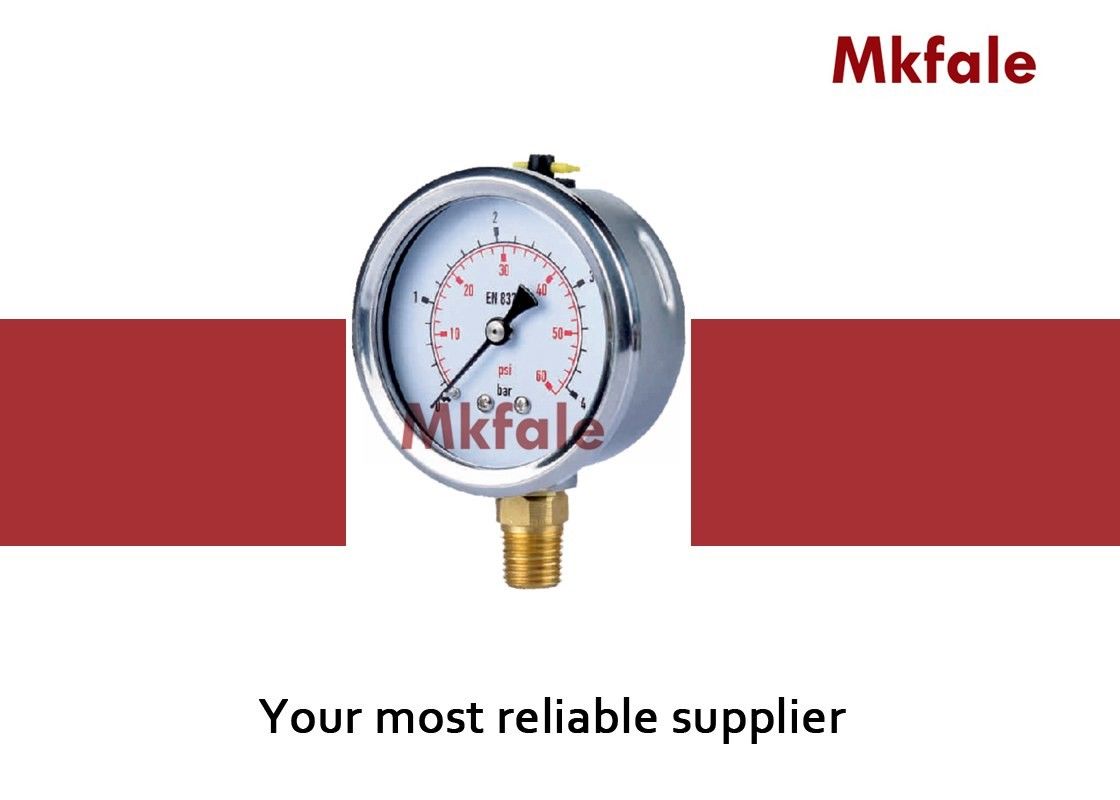

SM1SP One Piece Connection Liquid Filled Pressure Gauge With Crimped Case Design

SM1SP One Piece Connection Liquid Filled Pressure Gauge With Crimped Case Design

SM1SP One Piece Connection Liquid Filled Pressure Gauge With Crimped Case Design

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SM1SP

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Nominal Size: 63 , 100 , 150mm Accuracy Class: Class1 . 6 , Class1 . 0 ( Φ > 100 Mm )
Ingress Protection: IP65 ( Weather Tight ) Connection Size: G1 / 4 , G1 / 2 , Or NPT
Filling: Dry Or Liquid Filled Connection Material: Brass

SM1SP One Piece Connection Liquid Filled Pressure Gauge With Crimped Case Design






ONE PIECE CONNECTION STAINLESS STEEL CASE DESIGN



SM1SP One piece connection with crimped case design



Features



Accuracy class 1.6,class 1.0, Wide range vibration application

Stainless steel case design, Knock-down system back and front flange

Crimped lock case design, Over pressure up to 30% of Full Scale

Restrictor screw standard, Excellent vibration resist with liquid filling

Design scale ranges up to 600 bar



Application



A special design with stainless steel case and copper alloy wetted part and fillable option for

extreme vibration aplication and non-corrosive ambient field condition,with bayonet lock

case design.applicable for pneumatic and hydraulic systems, compressors, engines, pumps,

sprinkles system,building automation system and processing unit where vibration is

concern.



Technical Specification



Nominal Size : 63,100 150mm

Accuracy Class : Class 1.6,Class 1.0(Φ>100mm)

Ingress Protection. : IP65 (Weather tight)

Connection Size : G1/4,G1/2 or NPT

Scale Range : Pressure 0..1000 bar, Vacuum -1 bar..0, Compound -1..24 bar

Tube Element Shape : P≤100 bar in c tube, P>100 bar in helicoil

Filling : Dry or liquid filled

Operating Temperature : Ambient temperature -10° ..+70° C, Medium temperature 90° C Max.

Temperature Error : Additional error when pressure element tmperature deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling

Over Pressure Limit : 130% of F.S.P≤100 bar, 115% of F.S.P>100bar

Dial Graduation : Black graduation on white for single range, Black and red graduation on white for dual ranges



Design Material



Casing and Bezel Ring : Casing and Bezel Ring, SS304

Sensing Element : Copper alloy

Connection : Brass

Window : Tempered glass(SM1SB Series), Plastic(SM1SP Series)

Window gasket : Industrial rubber seal.

Pointer : Black painted aluminium

Dial Plate : Aluminium alloy



Mounting Code : L:Bottom entry, W:Bottom with back flange,

B:Back entry(centre-back,cower-back)

F:Back with front flange, Z:Back with bracket




Why choose us



1: Customize according to your special request .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee

5: High quality with competitive price .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .




SM1SP One Piece Connection Liquid Filled Pressure Gauge With Crimped Case Design
