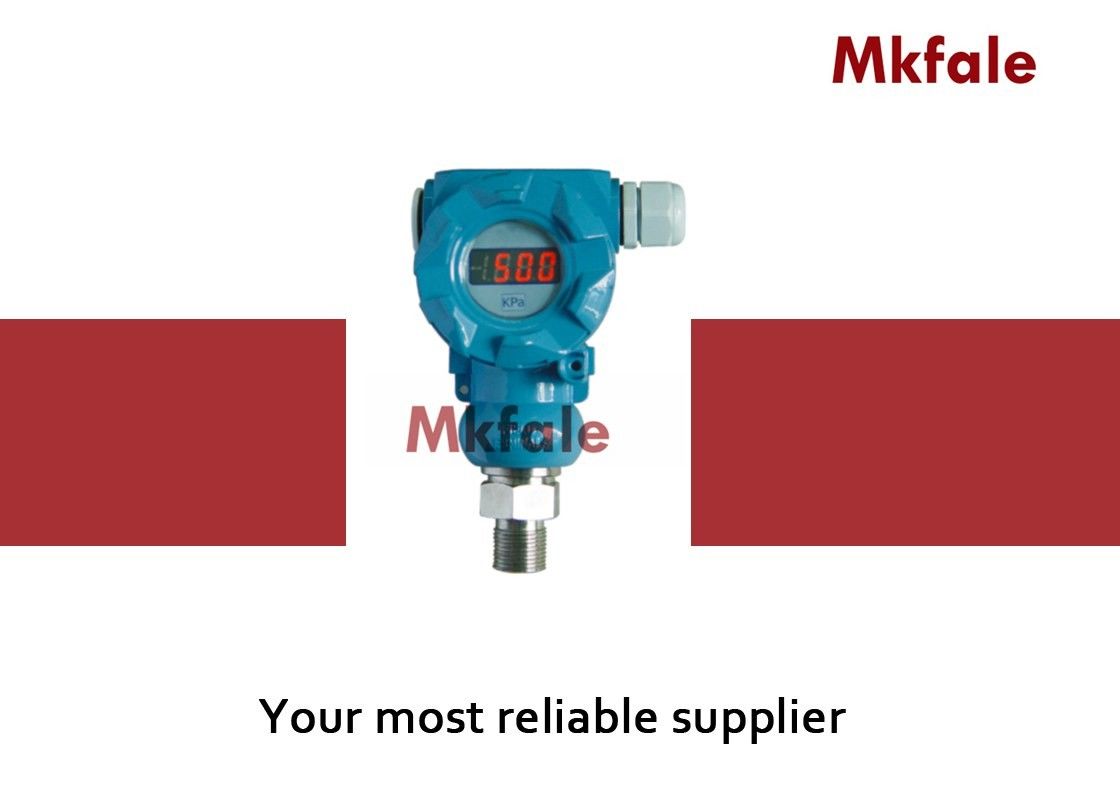

SMPB8103 LED Display Digital Pressure Transmitter Diffused - silicon Transmitter

SMPB8103 LED Display Digital Pressure Transmitter Diffused - silicon Transmitter

SMPB8103 LED Display Digital Pressure Transmitter  Diffused - silicon  Transmitter

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMPB8103

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Accuracy: 0 . 25 % F S , 0 . 5 % F S ( Including Linearity . Hysteresis And Repeatability ) Measuring Range: - 1 ... 0bar To - 1 ... 25bar , 0 ... 0 . 1bar To 0 ... 600bar
Linear: Superior To 0.25%F S Response Time: ≤10ms
Power Supply: 24VDC (or 12 To 36VDC) Output: 4 To 20mA(or 0 To 10mA,1 To 5V, 0 To 5V,0 To 10V)

SMPB8103 LED Display Digital Pressure Transmitter Diffused - silicon Transmitter








Technical Specification Table



SMPB81 SERIES PRESSURE TRANSMITTER :

SMPB8103



Accuracy :

0.25%F S,0.5%F S(including linearity. Hysteresis and repeatability)



Measuring Range :

-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar



Linear :

Superior to 0.25%F S



1 year stability :

Superior to 0.25%F S



Response time :

≤ 10 ms



Power supply :

24VDC (or 12 to 36VDC)



Output :

4 to 20mA(or 0 to 10mA,1 to 5V, 0 to 5V,0 to 10V)



Proof pressure :

150%F S



Burst pressure :

300%F S



Operating Temp :

-20 to +85℃



Compensated Temp :

-10 to +70℃



Storing Temp :

-40 to +125℃



Process connection :

M20*1.5 male or 1/2NPT male



Electric connection :

M20*1.5 male



Enclosure Protection :

IP65



Wetted parts :

SS304



Diaphragm material :

SS316L



Housing material :

Aluminium



Power Consume :

<0.5W(24VDC)



Local Indicator :

LED



Weight :

750g




Why choose us



1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .

3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: High quality with competitive price .



FAQ



Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.





SMPB8103 LED Display Digital Pressure Transmitter  Diffused - silicon  Transmitter
