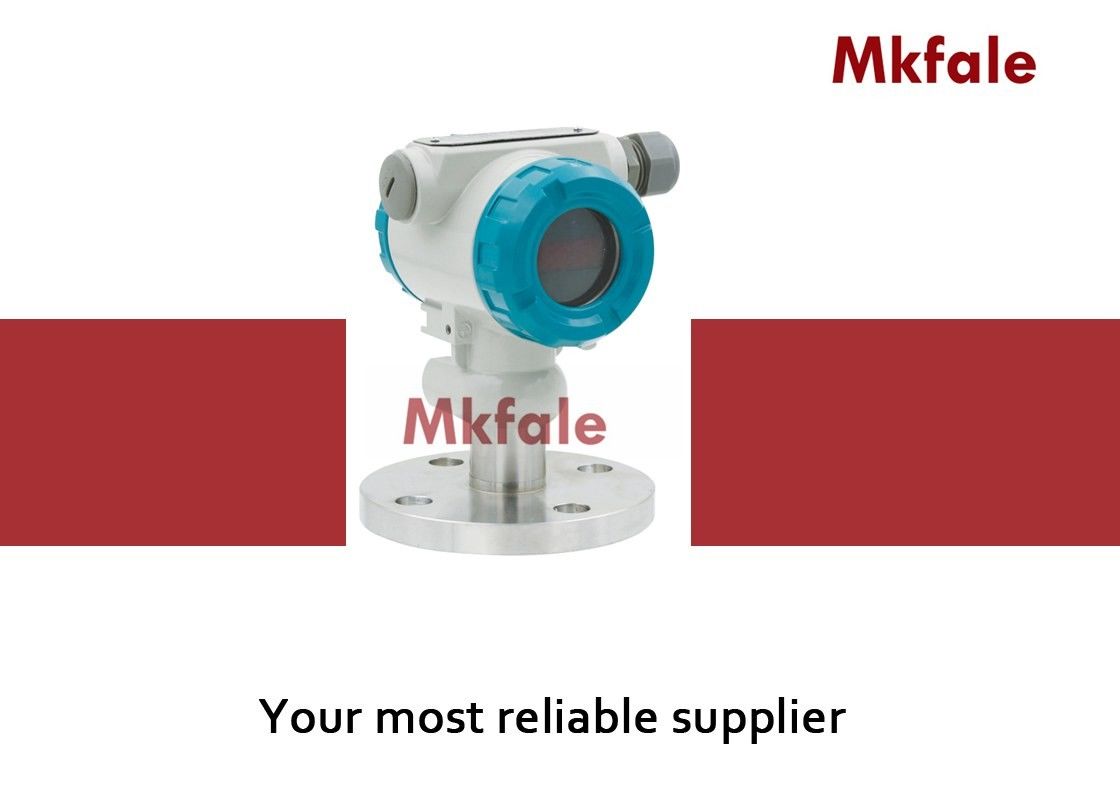

SMPB8100CNF Digital Pressure Transmitter High Stability Smart Water Pressure Transmitter Flange Type

SMPB8100CNF Digital Pressure Transmitter High Stability Smart Water Pressure Transmitter Flange Type

SMPB8100CNF Digital Pressure Transmitter High Stability Smart Water Pressure Transmitter Flange Type

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMPB8100CNF

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Accuracy: 0.25%F S,0.5%F S(including Linearity.Hysteresis And Repeatability Measuring Range: -1 ... 0bar To -1...25bar,0... 0.1bar To 0... 600bar
Linear: Superior To 0.25%F S Response Time: ≤ 10 Ms
Power Supply: 24VDC (or 12 To 36VDC) Output: 4 To 20mA(or 0 To 10mA,1 To 5V, 0 To 5V,0 To 10V)

SMPB8100CNF Digital Pressure Transmitter High Stability Smart Water Pressure Transmitter Flange Type​





Technical Specification Table


Type

SMPB8100CNF
Accuracy 0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability)
Measuring Range -1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar
Linear Superior to 0.25%F S
1 year stability Superior to 0.25%F S
Response time ≤ 10 ms
Power supply 24VDC (or 12 to 36VDC)
Output 4 to 20mA(or 0 to 10mA,1 to 5V, 0 to 5V,0 to 10V)
Proof pressure 150%F S
Burst pressure 300%F S
Operating Temp -20 to +85℃
Compensated Temp -10 to +70℃
Storing Temp -40 to +125℃
Process connection Flange
Electric connection M20*1.5 male
Enclosure Protection IP65
Wetted parts SS304
Diaphragm material SS316L
Housing material Aluminium
Power Consume <0.5W(24VDC)




Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: 12-18month quality guarantee




FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
