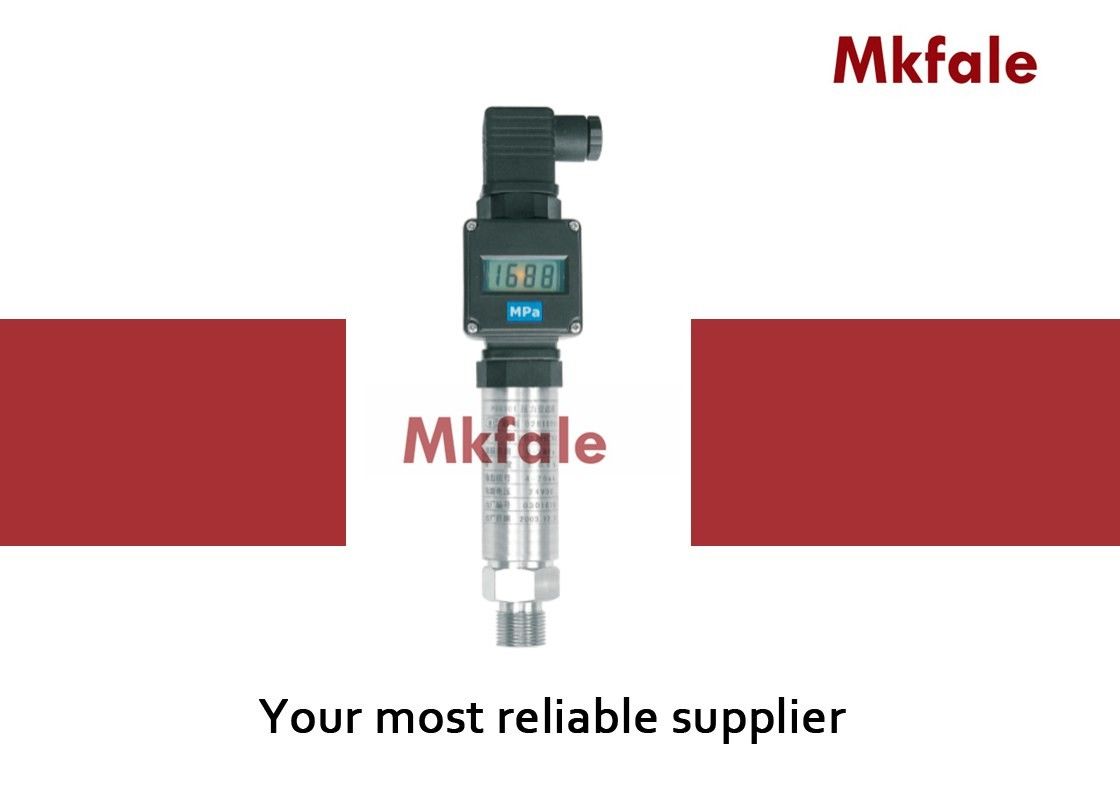

SMPB8301 Series Digital Pressure Indicating Transmitter LED Local Indicator 24VDC Power Supply

SMPB8301 Series Digital Pressure Indicating Transmitter LED Local Indicator 24VDC Power Supply

SMPB8301 Series Digital Pressure Indicating Transmitter LED Local Indicator 24VDC Power Supply

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMPB8301

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Enclosure Protection: IP63 Wetted Parts: SS304
Diaphragm Material: SS316L Electrical Connections: DIN43650 Plag Connector
Housing Material: Plastic Power Consume: < 0 . 5W ( 24VDC )

SMPB8301 Series Digital Pressure Indicating Transmitter LED Local Indicator 24VDC Power Supply



Technical Specification Table

SMPB83 SERIES PRESSURE TRANSMITTER :
SMPB8301

Accuracy :
0.25%F S , 0.5%F S(including linearity . Hysteresis and repeatability

Measuring Range :
-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar

Linear :
Superior to 0.25%F S

1 year stability :
Superior to 0.25%F S

Response time :
≤10ms

Power supply :
24VDC (or 12 to 36VDC)

Output :
4 to 20mA

Load(Ω) :
< ( u – 12 ) / 0 . 02A

Proof pressure :
150%F S

Burst pressure :
300%F S

Operating Temp :
- 20 to + 85 ℃

Compensated Temp :
- 10 to + 70℃

Storing Temp :
- 40 to + 125 ℃

Process connection :
M20 * 1 . 5 male or 1 / 2NPT male

Enclosure Protection :
IP63

Wetted parts :
SS304

Diaphragm material :
SS316L

Electrical Connections :
DIN43650 Plag Connector

Housing material :
Plastic

Power Consume :
<0.5W(24VDC)

Local Indicator :
LCD


Why choose us


1: Large stock for fast shipping .
2: High quality with competitive price .

3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service


FAQ



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.


SMPB8301 Series Digital Pressure Indicating Transmitter LED Local Indicator 24VDC Power Supply
