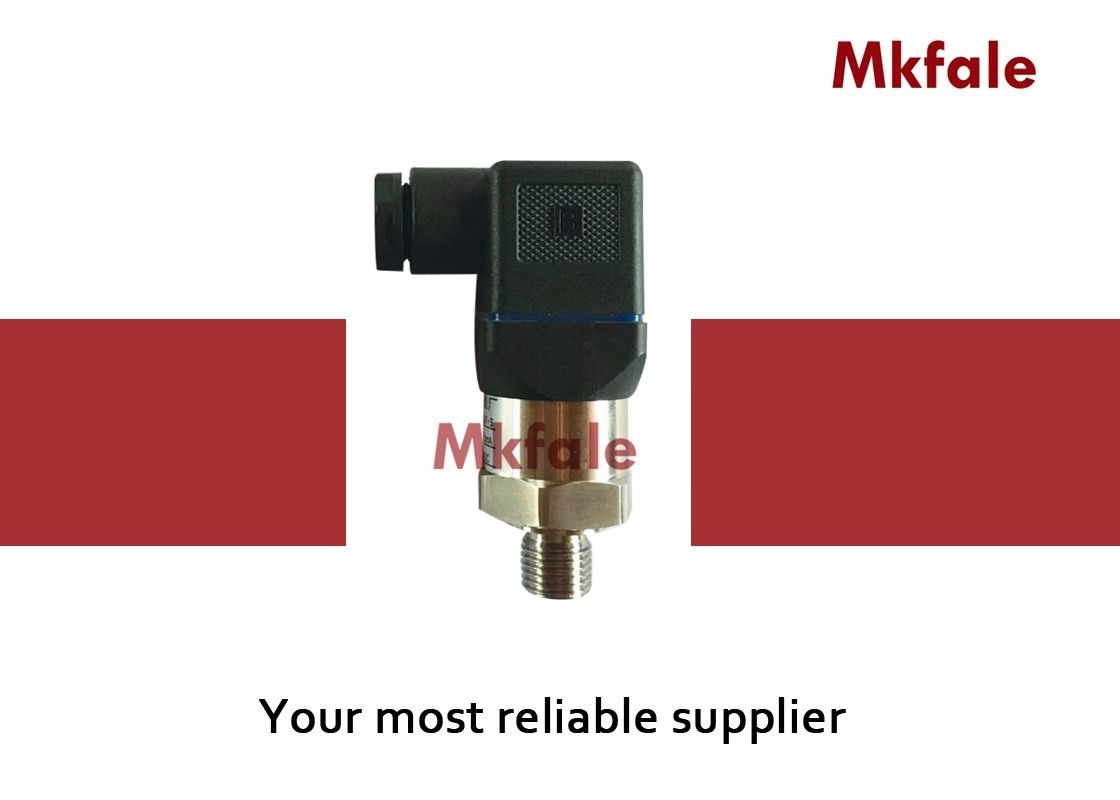

High Temperature Hydraulic Pressure Transmitter Stainless Steel Wetted Parts

High Temperature Hydraulic Pressure Transmitter Stainless Steel Wetted Parts

High Temperature Hydraulic Pressure Transmitter Stainless Steel Wetted Parts

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMPBA10

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Output: 4 ~ 20mA Wetted Parts: SS304
Diaphragm Material: SS316L Electrical Connections: DIN43650 Hersman Junction Box
Housing Material: Plastic Power Consume: < 0 . 5W

High Temperature Hydraulic Pressure Transmitter Stainless Steel Wetted Parts








SMPB SERIES PRESSURE TRANSMITTER :

SMPBA10



Accuracy :

0.5 % F • S , 0 . 2 % F • S



Measuring Range :

- 0 . 1MPa ~ 0 ; 0 ~ ( 10KPa ~ 60MPa ) , ≤ 0 ~ 0 . 5M liquid level



Linear :

Superior to 0 . 2 % F S



1 year stability :

Superior to 0 . 2 % F S



Response time :

≤ 10mS



Power supply :

24VDC ,12VDC - 36VDC ( constant voltage )



Output :

4~20mA



Load(Ω) :

0 ~ 600 Ω ( Rz = ( V – 12 ) / 0 . 02 ( V is supply voltage )



Proof pressure :

150 % F S



Burst pressure :

300 % F S



Operating Temp :

- 20 ~ + 85 ℃ ( < 85 ℃ use radiating tube )



Storing Temp :

- 20 ~ + 125 ℃



Process connection :

1/4NPT,1/4BSP



Enclosure Protection :

IP63



Wetted parts :

SS304



Diaphragm material :

SS316L



Electrical Connections :

DIN43650 Hersman junction box



Housing material :

Plastic



Power Consume :

< 0 . 5W



Weight :

150g




Why choose us



1: Various style for each products and completely series industry instruments.

2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service

5: Large stock for fast shipping .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
