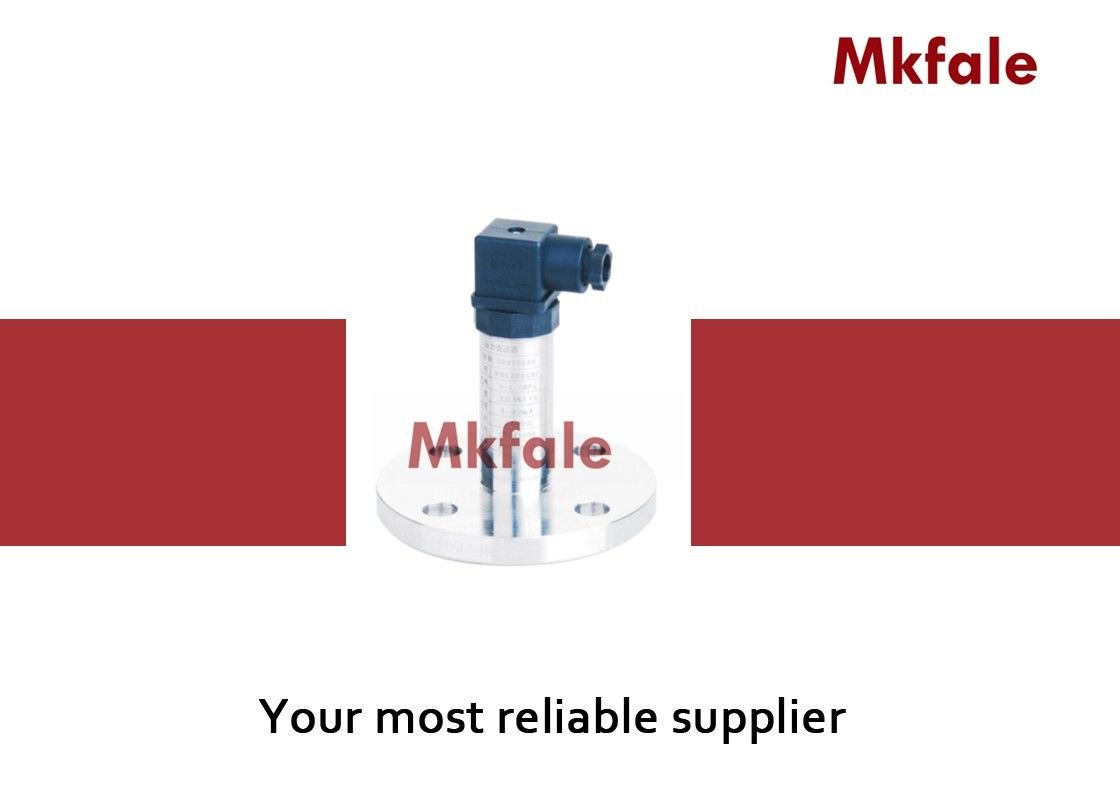

SMPB8300CNF Flange Digital Pressure Transmitter IP65 Enclosure Protection

SMPB8300CNF Flange Digital Pressure Transmitter IP65 Enclosure Protection

SMPB8300CNF Flange Digital Pressure Transmitter IP65 Enclosure Protection

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMPB8300CNF

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Output: 4 To 20mA Load(Ω): < ( U - 12 ) / 0 . 02A
Storing Temp: - 40 To + 125 ℃ Process Connection: Flange
Housing Material: Plastic Power Consume: < 0 . 5W ( 24VDC ) , DIN43650 Plag Connector
High Light:

electronic pressure transmitter

,

high accuracy pressure transmitter

SMPB8300CNF Flange Digital Pressure Transmitter IP65 Enclosure Protection








Technical Specification Table



SMPB83 SERIES PRESSURE TRANSMITTER :

SMPB8300CNF



Accuracy :

0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability



Measuring Range :

-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar



Linear :

Superior to 0.25%F S



1 year stability :

Superior to 0.25%F S



Response time :

≤ 10ms



Power supply :

24VDC (or 12 to 36VDC)



Output :

4 to 20mA



Load(Ω) :

<(u-12) / 0.02A



Proof pressure :

150%F S



Burst pressure :

300%F S



Operating Temp :

-20 to +85℃



Compensated Temp :

-10 to +70℃



Storing Temp :

-40 to +125℃



Process connection :

Flange



Enclosure Protection :

IP65



Wetted parts :

SS304



Diaphragm material :

SS316L



Housing material :

Plastic



Power Consume :

<0.5W(24VDC),DIN43650 Plag Connector



Local indicator :

-



Weight :

320g




Why choose us



1: Various style for each products and completely series industry instruments.

2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: 12-18month quality guarantee

5: Large stock for fast shipping .



FAQ



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



SMPB8300CNF Flange Digital Pressure Transmitter IP65 Enclosure Protection
