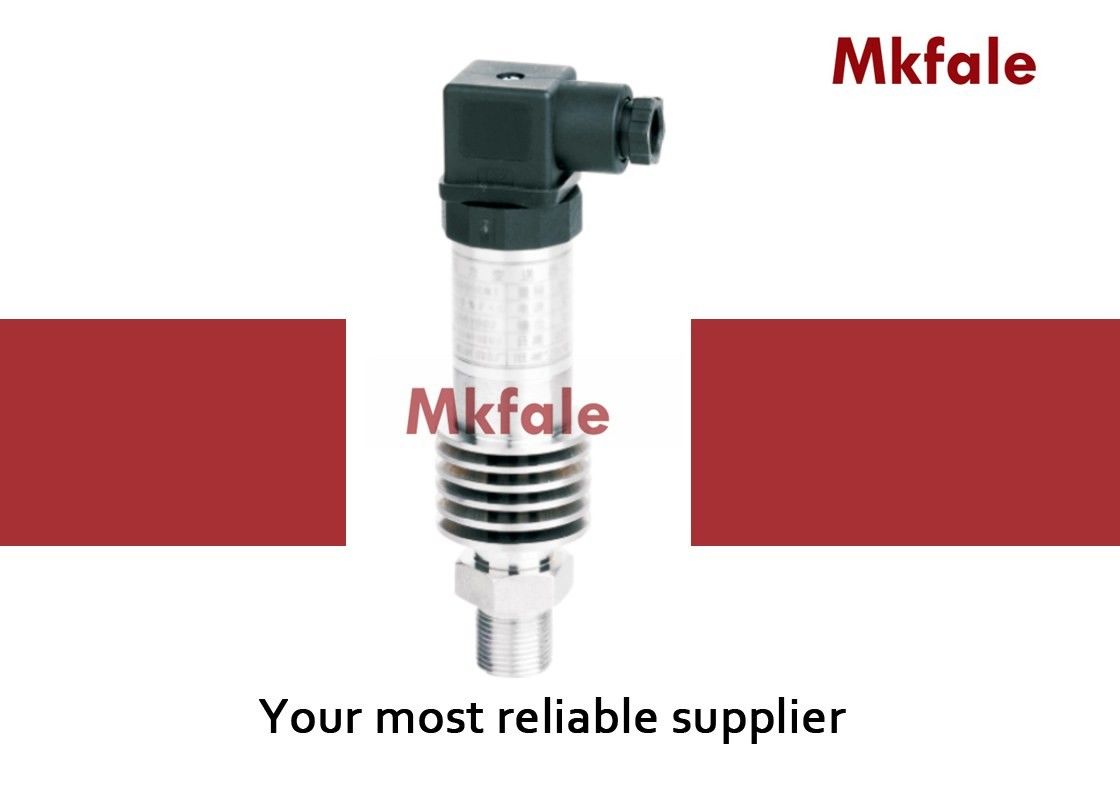

SMPB8300 / H Series Digital Pressure Transmitter 24VDC Power Supply Plastic

SMPB8300 / H Series Digital Pressure Transmitter 24VDC Power Supply Plastic

SMPB8300 / H Series Digital Pressure Transmitter 24VDC Power Supply Plastic

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMPB8300 / H

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Accuracy: 0.25%F S,0.5%F S(including Linearity.Hysteresis And Repeatability Process Connection: M20*1.5 Male Or 1/2NPT Male
Diaphragm Material: SS316L Housing Material: Plastic
Electrical Connections: DIN43650 Plag Connector Power Consume: <0.5W(24VDC)

SMPB8300 / H Series Digital Pressure Transmitter 24VDC Power Supply Plastic Plastic





Technical Specification Table

SMPB83 SERIES PRESSURE TRANSMITTER :
SMPB8300 / H

Accuracy :
0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability

Measuring Range :
-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar

Linear :
Superior to 0.25%F S

1 year stability :
Superior to 0.25%F S

Response time :
≤ 10ms

Power supply :
24VDC (or 12 to 36VDC)

Output :
4 to 20mA

Load(Ω) :
<(u-12) / 0.02A

Proof pressure :
150%F S

Burst pressure :
300%F S

Operating Temp :
-20 to +120℃

Compensated Temp :
-10 to +70℃

Storing Temp :
-40 to +125℃

Process connection :
M20*1.5 male or 1/2NPT male

Enclosure Protection :
IP65

Wetted parts :
SS304

Diaphragm material :
SS316L

Housing material :
Plastic

Electrical Connections :
DIN43650 Plag Connector

Power Consume :
<0.5W(24VDC)

Weight :
450g



Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .




FAQ

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
