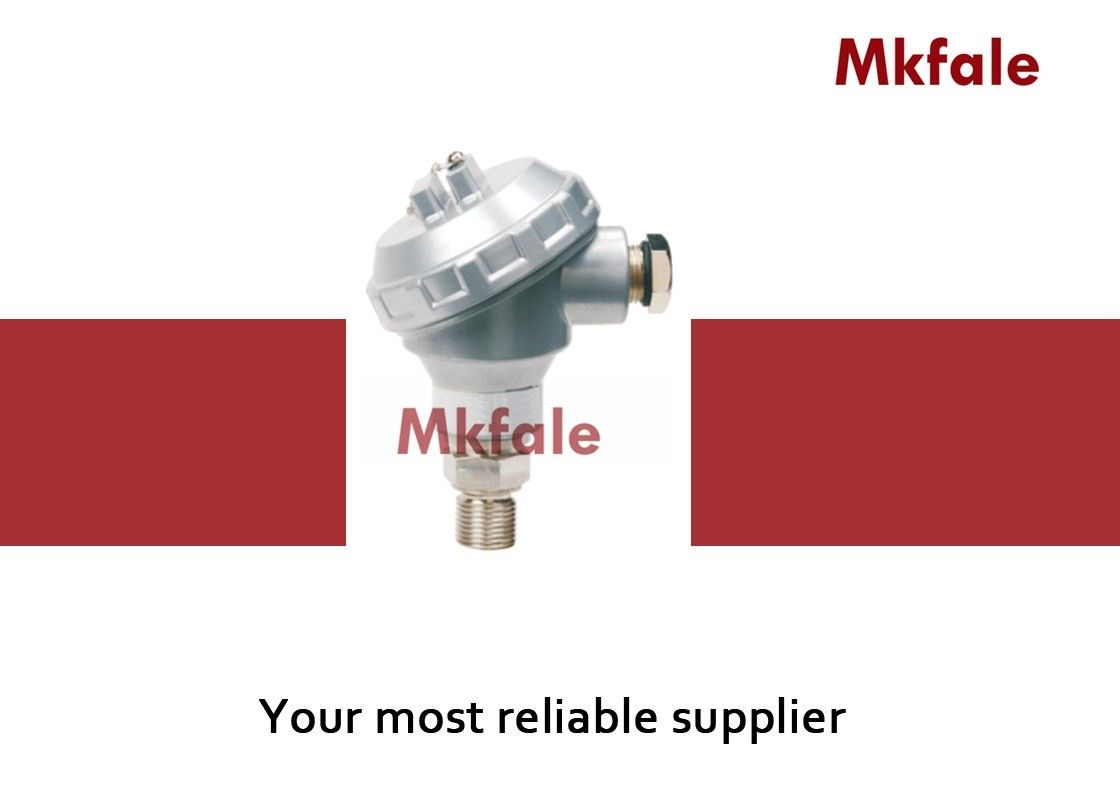

Pressure Transmitter SMJPB2000 Diffused - silicon Type Pressure Transmitter IP65

Pressure Transmitter SMJPB2000 Diffused - silicon Type Pressure Transmitter IP65

Pressure  Transmitter  SMJPB2000  Diffused - silicon  Type Pressure Transmitter  IP65

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMJPB2000

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Response Time: ≤ 10ms Power Supply: 24VDC ( Or 12 To 36VDC )
Output: 4 To 20mA(Or 0 To 10mA, 1 To 5V,0 To 5V,0 To 10V Proof Pressure: 150%F S
Process Connection: M20*1.5 Male Or 1/2NPT Male Diaphragm Material: SS316L
High Light:

electronic pressure transmitter

,

pressure indicator transmitter

Pressure Transmitter SMJPB2000 Diffused - silicon Type Pressure Transmitter IP65





Technical Specification Table



SMJPB2000 SERIES PRESSURE TRANSMITTER :

SMJPB2000



Accuracy :

0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability



Measuring Range :

-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar



Linear :

Superior to 0.25%F S



1 year stability :

Superior to 0.25%F S



Response time :

≤ 10ms



Power supply :

24VDC (or 12 to 36VDC)



Output :

4 to 20mA(Or 0 to 10mA, 1 to 5V,0 to 5V,0 to 10V



Proof pressure :

150%F S



Burst pressure :

300%F S



Operating Temp :

-20 to +85℃



Compensated Temp :

-10 to +70℃



Storing Temp :

-40 to +125℃



Process connection :

M20*1.5 male or 1/2NPT male



Enclosure Protection :

IP65



Wetted parts :

SS304



Diaphragm material :

SS316L



Power Consume :

<0.5W(24VDC)



Weight :

380g
