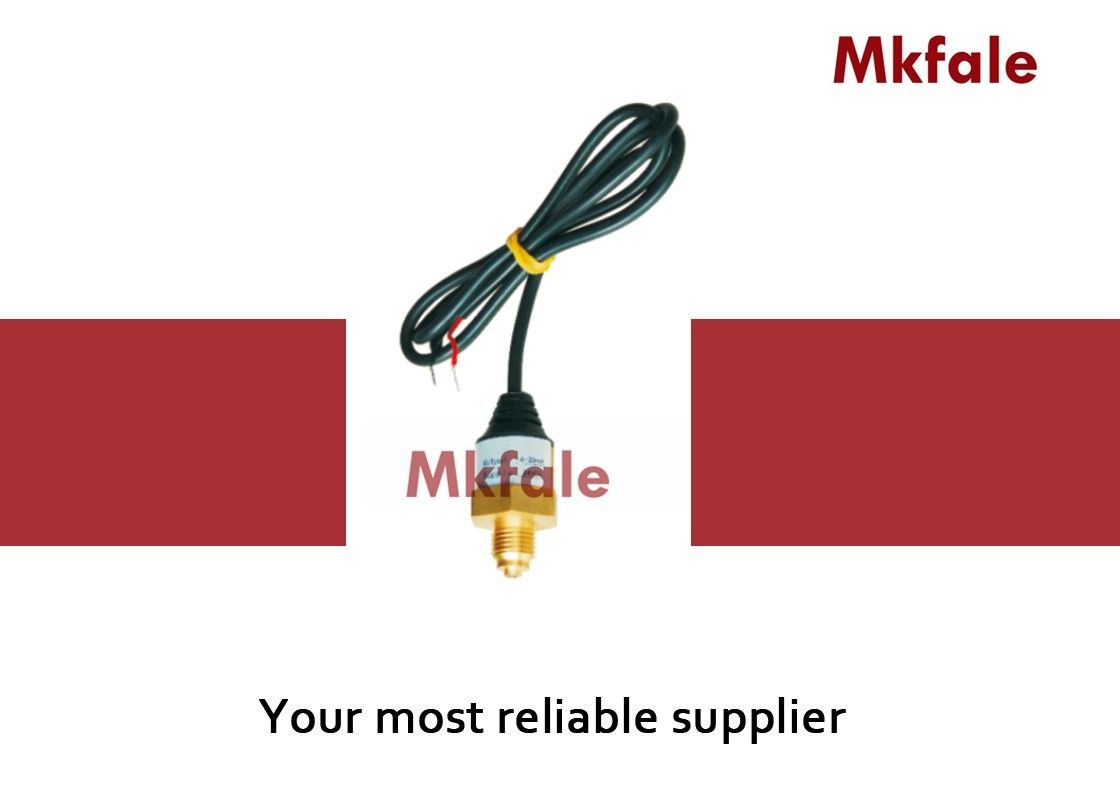

Pressure Transmitter SMAPB6120 Pressure Transmitter For Water And Air Pressure

Home Products Digital Pressure Transmitter

Pressure Transmitter SMAPB6120 Pressure Transmitter For Water And Air Pressure

Product Details:

Place of Origin:	China
Brand Name:	Mkfale
Model Number:	SMAPB6120

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time:	5 - 30 Work Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Negotiation

Contact Now

Detailed Product Description

Accuracy:	0 . 5 % F S ,1 % F S , 5 % F S ( Including Linearity . Hysteresis And Repeatability )	Measuring Range:	0 ... 1bar To 0 ... 25bar
Response Time:	≤ 10ms	Power Supply:	24VDC ( Or 12 To 36VDC )
Output:	4 To 20mA 2 - Wires	Load(Ω):	＜ ( U - 12 ) / 0 . 02A
High Light:	electronic pressure transmitter , pressure indicator transmitter

Pressure Transmitter SMAPB6120 Pressure Transmitter For Water And Air Pressure

Technical Specification Table

SMAPB SERIES PRESSURE TRANSMITTER	SMAPB6120
Accuracy	0.5%F S,1%F S,5%F S(including linearity.Hysteresis and repeatability)
Measuring Range	0... 1bar to 0... 25bar
Response time	≤10ms
Power supply	24VDC (or 12 to 36VDC)
Output	4 to 20mA 2-wires
Load(Ω)	＜(u-12) / 0.02A
Proof pressure	150%F S
Burst pressure	300%F S
Operating Temp	-20 to +85℃
Storing Temp	-40 to +125℃
Process connection	1/4NPT male or 1/8NPT male
Wetted parts	SS304
Housing material	Plastic
Power Consume	<0.5W(24VDC)
Weight	75g

Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Pressure Transmitter SMAPB6120 Pressure Transmitter For Water And Air Pressure
