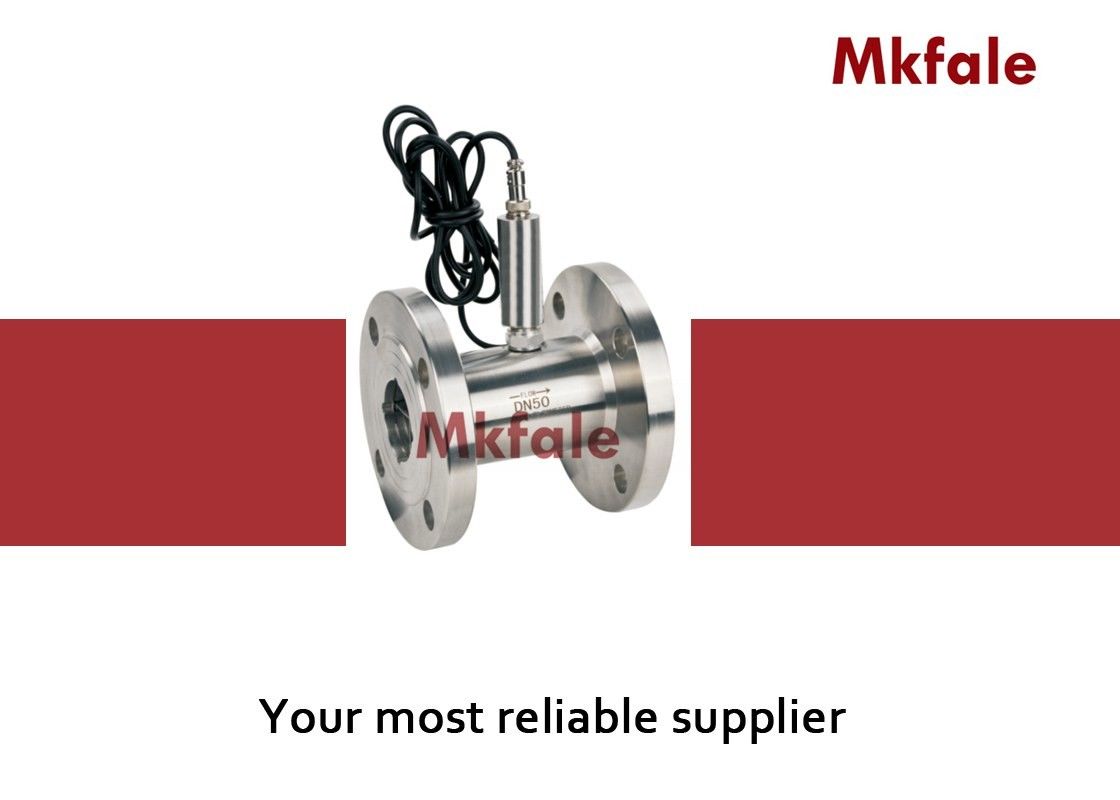

SMTF Flange Turbine Type Flow Meter Remote Separate Type RS485 , HART Communication

SMTF Flange Turbine Type Flow Meter Remote Separate Type RS485 , HART Communication

SMTF Flange Turbine Type Flow Meter Remote Separate Type RS485 , HART Communication

Product Details:

Place of Origin: China
Brand Name: MKfale
Model Number: SMTF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Carried Standard: Turbine Flow Sensor ( JB / T9246 - 1999 ) Diameter And Connection: 4,6,10,15,20,25,32,40,50,65,80
Accuracy: ± 1 % R , ± 0 . 5 % R , ± 0 . 2 % R ( Customized ) Measure Ratio: 1 : 10 ; 1 : 15 ; 1 : 20
Sensor Material: Stainless Steel 304 / 316L , Etc Communication: RS485、HART

SMTF Flange Turbine Flow Meter Remote Separate Type RS485 , HART Communication








Technical Specification Table



SMTF Turbine Flow Meter :

Remote separate type



Description:

This model turbine flow meter adopt new type sensor with lower pressure loss ,

starting flow is small , anti – corrosion , and with long term work life.

It also have good performance on anti-seismic and surging flow.

High accuracy , 0 . 5 % normally , 0 . 2 % in option .

High repeatability , its repeatability could reach 0 . 05 % - 0 . 2 % in short – term .

So this flow meter is a good choice in trade settlement.

This type flow meter use micro-power technology , power consumption is low .

It could be powered by battery or outside power.



Carried Standard :

Turbine flow sensor ( JB / T9246 – 1999 )



Diameter and Connection :

4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80



Accuracy :

±1%R,±0.5%R,±0.2%R(Customized)



Measure Ratio :

1 : 10 ; 1 : 15 ; 1 : 20



Sensor Material ;

SS304 , SS316L , etc



Work Condition

Medium temperature : - 20 ℃ ~ + 120 ℃ , Ambient temperature : - 20 ℃ ~ + 60 ℃

Relative humidity : 5 % ~ 90 % , Atmosphere : 86Kpa ~ 106Kpa

Signal Output Pluse , 4 - 20mA
Communication RS485 ,HART
Power Supply

Outside Power supply : + 24VDC ± 15 % Ripple ≤ ± 5 % , apply to 4 - 20mA output , pulse , RS485 communication .

Internal power supply : 3 . 0V 10AH Lithium battery , regular work when the voltage in the range of 2V - 3V .

Signal Line Interface

Basic model : Houseman joint or three core cable .

Explosion proof model : Internal thread M20 * 15

Explosion Proof Class ExiaIICT4 or EXDIIBT6
IP Grade IP65 or higher grade for option .



Measure Range And Work Pressure



Diameter

mm

Normal Measure Range m ³ / h

Extended Measure Range

m ³ / h

Acquiescent Installation Method And Streets Levels Optional Installation Method And Stress Level Designated Stress Level MPa
DN4 0 . 04 ~ 0 . 25 0 . 04 ~ 0 . 4 Thread , 6 . 3MPa Flange , 2 . 5 MPa 12 , 16 , 25
DN6 0 . 1 ~ 0 . 6 0 . 06 ~ 0 . 6 Thread , 6 . 3MPa Flange , 2 . 5 MPa 12 , 16 , 25
DN10 0 . 2 ~ 1 . 2 0 . 15~ 1 . 5 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN15 0 . 6 ~ 6 0 . 4 ~ 8 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN20 0 . 8 ~ 8 0 . 45 ~ 9 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN25 1 ~ 10 0 . 5 ~ 10 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN32 1 . 5 ~ 15 0 . 8 ~ 15 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN40 2 ~ 20 1 ~ 20 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN50 4 ~ 40 2 ~ 40 Flange , 2 . 5MPa Flange , 6 . 3 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN65 7 ~ 70 4 ~ 70 Flange , 1 . 6MPa Flange , 6 . 3 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN80 10 ~ 100 5 ~ 100 Flange , 1 . 6MPa Flange , 6 . 3 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN100 20 ~ 200 10 ~ 200 Flange , 1 . 6MPa   4 . 0 , 6 . 3 , 12 , 16 , 25
DN125 25 ~ 250 13 ~ 250 Flange , 1 . 6MPa   2 . 5 , 4 . 0 , 6 . 3 , 12 , 16
DN150 30 ~ 300 15 ~ 300 Flange , 1 . 6MPa   2 . 5 , 4 . 0 , 6 . 3 , 12 , 16
DN200 80 ~ 800 40 ~ 800 Flange , 1 . 6MPa   2 . 5 , 4 . 0 , 6 . 3 , 12 , 16



Why choose us



1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Customize according to your special request .
5: Provide free products information .




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
