|Place of Origin:||China|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Features:||Compact Version||Housing Material:||L: Aluminum, J: Plastic|
|Sensor Material:||K: ABS & PVC, L:PTFE||Switch Output:||2: 2 SPDT, 4: 4 SPDT, 6: 6 SPDT|
|Power Supply:||D: DC24V, A: AC220V||Range:||0~4mm, 0~6mm, 0~8mm, 0~12mm ,0~20mm, 0~30mm, 0~40mm|

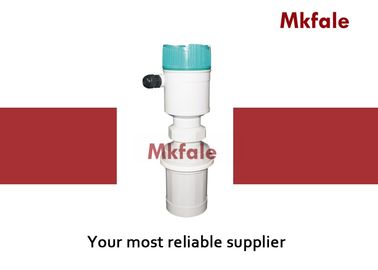

Compact Version Ultrasonic Level Meter Aluminum Or Plastic Housing Material
Technical Specification Table
|SMUL ULTRASONIC LEVEL METER|
|Features||A:2-wire series,compact version B:3-wire series,compact version
C:RS485 series,compact version, D:4-wire series,compact version
E:ExiallCT62-wire series,intrinsically safe explosion-proof,ExiallCT6

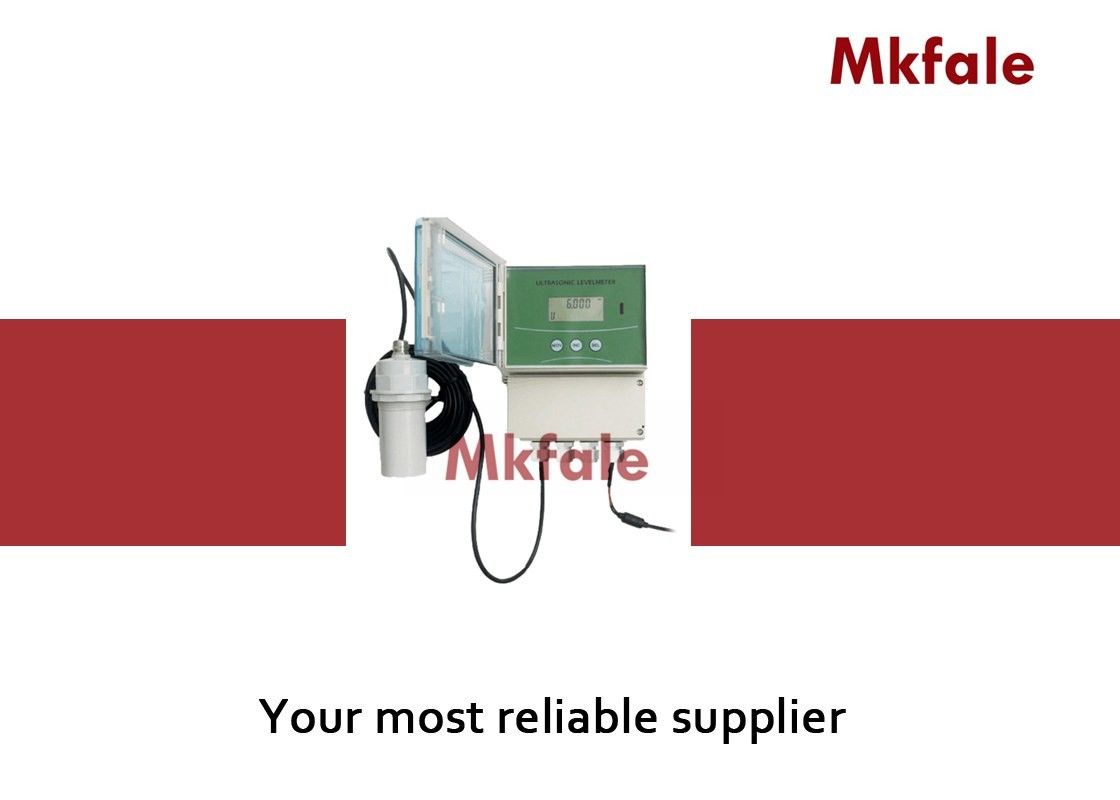

F:Standard series,remote version, G:Multi-functional series,remote version
H:Difference-level meter series,remote version
|Housing Material||L: Aluminum, J: Plastic|
|Range||4: 0~4mm, 6:0~6mm, 8: 0~8mm, 12: 0~12mm
20: 0~20mm, 30: 0~30mm, 40: 0~40mm
|Sensor Material||K: ABS & PVC, L:PTFE|
|Process Connection||G11/2 Thread Only range 6 meters optional; G2 Thread Only range 6 meters optional
DN50Flange Only range 6 meters optional; DN65Flange Only range 6 meters optional
DN80Flange Only range 6 meters optional; DN100Flange All range
DN150Flange All range; DN200Flange All range
|Output Signal and Communication||DC4-20mA current
Two DC4-20mA electric current,liquid level difference and double point liquid level gauge
C1 RS485-Hilevel, C2 RS485-Modbus, C3 Profibus-DP, C4 Hart
|Switch Output||2: 2 SPDT, 4: 4 SPDT, 6: 6 SPDT|
|Power Supply||D: DC24V, A: AC220V|
Ultrasonic level meter should be installed in the upper part of the container,under the
control of the electronic unit,the sensor launch a bunch ultrasonic pulse and transmit it to
the measured object.They are reflected back and received by the sensor. Some of received
signal transform into electrical signal. From ultrasound be launched to be accepted,the time
and the distance that is from the probe to measured medium is proportional Electronic unit
detects the time,and calculate the distance to be measured according to the known speed of
sound.It can be obtained by subtraction level value.since the temperature has an effect on
the speed of sound,the instrument should measure the temperature,to correct the speed of
Why choose us
1: High quality with competitive price .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
