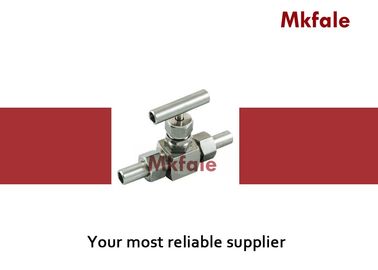

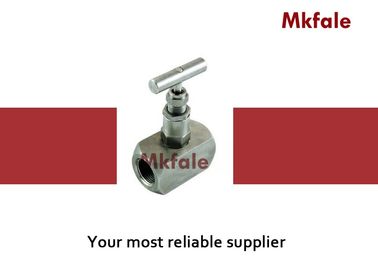

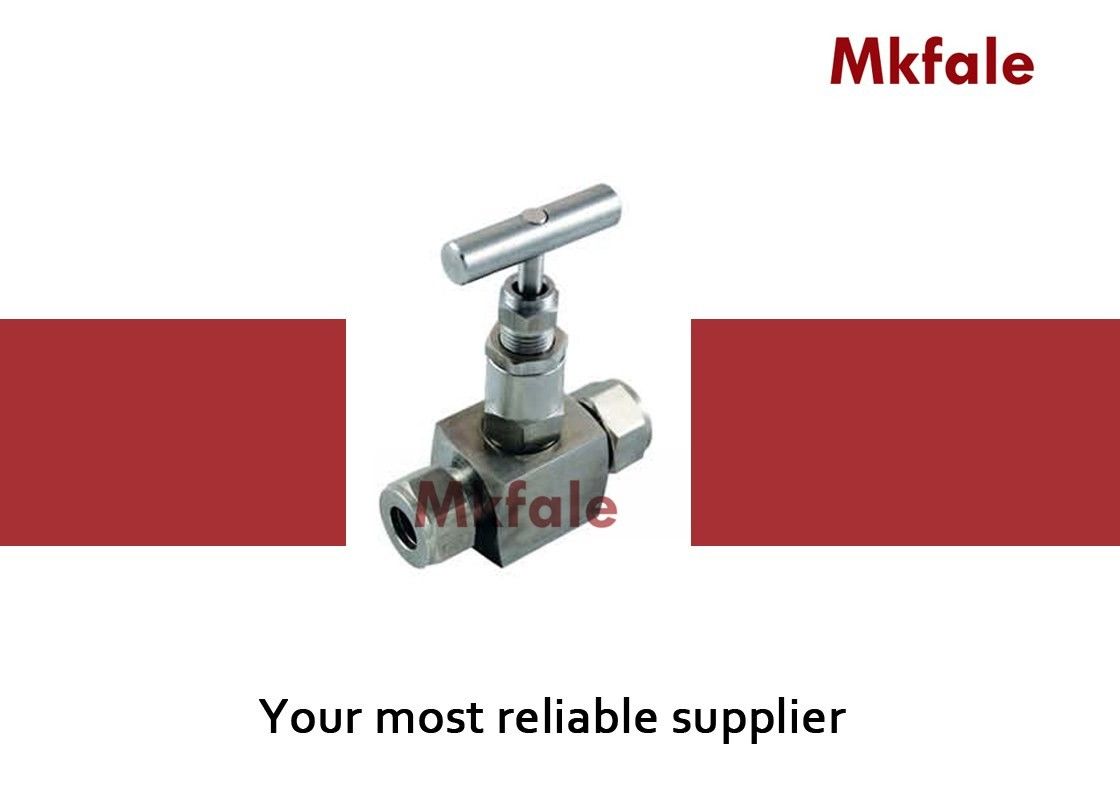

Screwed Bonnet Needle Valves High Pressure Needle Valve Stainless Steel Valve

Screwed Bonnet Needle Valves High Pressure Needle Valve Stainless Steel Valve

    • Screwed Bonnet Needle Valves High Pressure Needle Valve Stainless Steel Valve
    • Screwed Bonnet Needle Valves High Pressure Needle Valve Stainless Steel Valve
    • Screwed Bonnet Needle Valves High Pressure Needle Valve Stainless Steel Valve
  • Screwed Bonnet Needle Valves High Pressure Needle Valve Stainless Steel Valve

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Certification: ISO9001
    Model Number: SNV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs
    Contact Now
    Detailed Product Description
    Group: Screwed Bonnet Needle Valves Dimensions: 1 / 4 " 3 / 8 " 1 / 2 " 3 / 4 " 1 "
    Connection Type: Tube , Thread , Butt Welding , Sorket Welding Body Material: Stainless Steel 316
    Option: Bleed , High Temperature 450 ℃ Material: SS 316 Carbon Steel Alloy 400 ( Monel )

    Screwed Bonnet Needle Valves High Pressure Needle Valve Stainless Steel Valve








    Features



    Working pressure up to 10000 psi( 689bar ) .

    Temperature rating from - 65 ℉ to 450 ℉ ( - 54 ℃ to 232 ℃ ) with standard PTFE sealing, and up to 1200 ℉ ( 648 ℃ ) with optional Grafoil sealing.

    Body material available in 316SS , Carbon Steel and Alloy 400 ( Monel ) .

    100 % Factory tested



    Material of Construction



    Description Material
    Handle SS304
    Set Screw SS304
    Lock Nut SS304
    Packing Bolt SS316
    Packing Gland SS316
    Packing Washer SS316
    Packing PTFE
    Bonnet SS316
    Stem SS316
    Vee Tip 454
    Ball Tip 4545
    Stop Pin 1120






    Alternative Stems



    Needle Valves are available with a choice of stem - tip options to allow greater flexibility



    Regulating : Used where some degree of flow control is required .



    V - Stem : A standard stem tip used for general - purpose liquids and gases .



    Non - Rotating : Typically used in high - cycle applications to extend valve life . It is designed to prevent galling between the seat and stem .







    Why choose us



    1: Various style for each products and completely series industry instruments.
    2: Large stock for fast shipping .
    3: High quality with competitive price .
    4: Sample order & small quantity order is acceptable .
    5: Customize according to your special request .


    FAQ



    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

    Q: What ' s your business scope ?
    A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .

    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.
