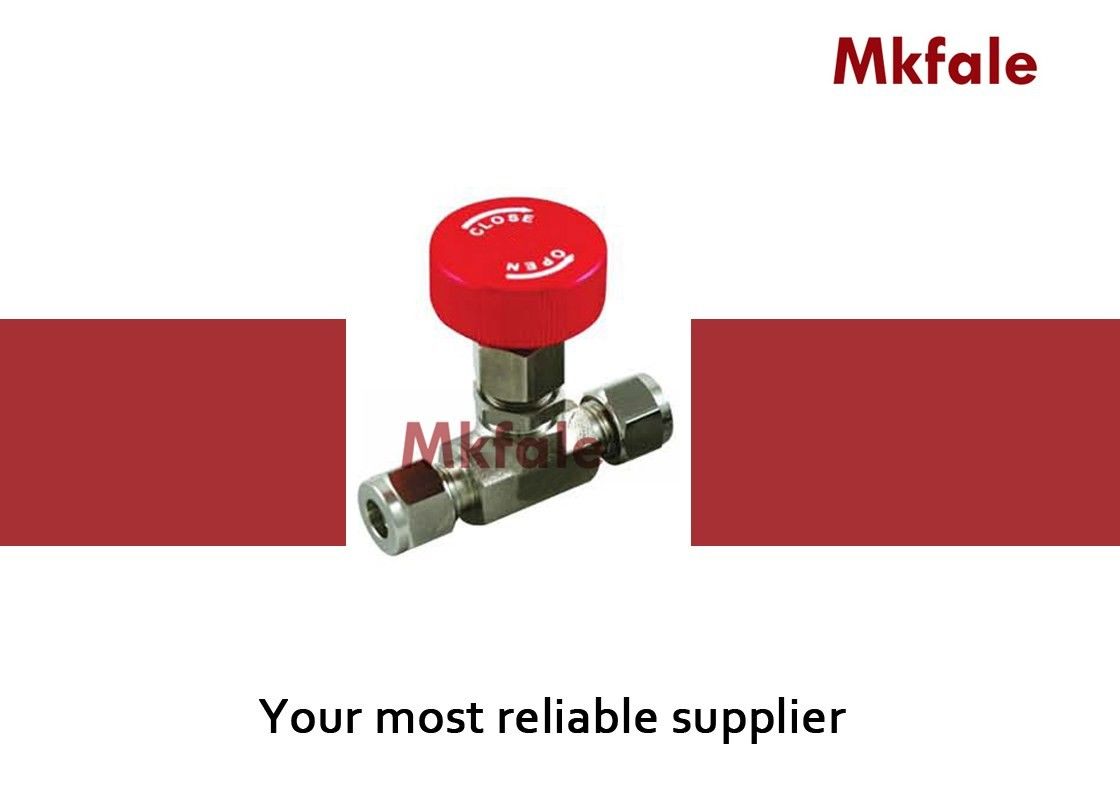

MNV Mini Gas Needle Valve Tube End Connection Angle Type Instrument Flow Meter

MNV Mini Gas Needle Valve Tube End Connection Angle Type Instrument Flow Meter

MNV Mini Gas Needle Valve Tube End Connection Angle Type Instrument Flow Meter

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: MNV

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Useing Temperature: - 40 ℃ - - - 200 ℃ Color Of Handle: Black , Blue , Red , White
Group: Mini Needle Valve Dimensions: 1 / 8 " - 1 / 2 " , 3mm - 12mm
Connection: Tube End Connection Option: Angle Type

MNV Mini Gas Needle Valve Tube End Connection Angle Type Instrument Flow Meter








Feature & Benefits



1 . Bonnet lock pins prevent accidental loosening .

2 . Free- swiveling ball end stem ( metal seat , std . ) assure bubble tight valve closure without seat galling . The special hardened ball seat is ideal for both gas and liquid service .

3 . The packing is adjustable with less possibility of bonnet / body leaks .

4 . Full back – seated bonnets prevent accidental stem removal and blowout .

Unique design minimizes emissions while offering easy access to the packing .

5 . Max . pressure rating : SS316 , 6000Psi

BRASS , 3000Psi

6 . Using temperature : - 40 ℃ - - - 200 ℃ ( Special require that could raise to 650 ℃ )

7 . 100 % factory testing

8 . Color choose of handle : Blank , Blue , Red , White .




Material of Bonnet / Stem / Seat



Parts Name Material Description
Body Stainless Steel ASTM479 – 316 / 304
Bonnet Stainless Steel ASTM479 – 316 / 304
Gland Retainer Stainless Steel ASTM479 – 316 / 304
Washer Stainless Steel ASTM479 – 316 / 304
Packing PTFE PTFE / GRAFOIL
Packing Washer Stainless Steel ASTM479 – 316 / 304
Stem Stainless Steel ASTM479 – 316 / 304
Lock Nut Stainless Steel ASTM479 – 316 / 304
Grub Screw Stainless Steel ASTM 276 - 304
Handle Stainless Steel ASTM 276 - 304
Dust Cap PLASTIC
Non – Rotating End Tip Stainless Steel ASTM479 – 316 / 304





Group : MINI NEEDLE VALVE



Dimensions : 1 / 8 " , 1 / 4 " , 3 / 8 " , 1 / 2 " , 3mm , 4mm , 6mm , 8mm , 10mm , 12mm



Connection Type : Tube End Connec



Option : Angle Type



Why choose us



1: Various style for each products and completely series industry instruments.

2: Provide free products information .
3: Reliable quality assured and active after-sell service

4: Large stock for fast shipping .
5: High quality with competitive price .



FAQ



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
