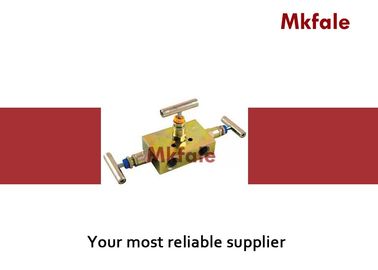

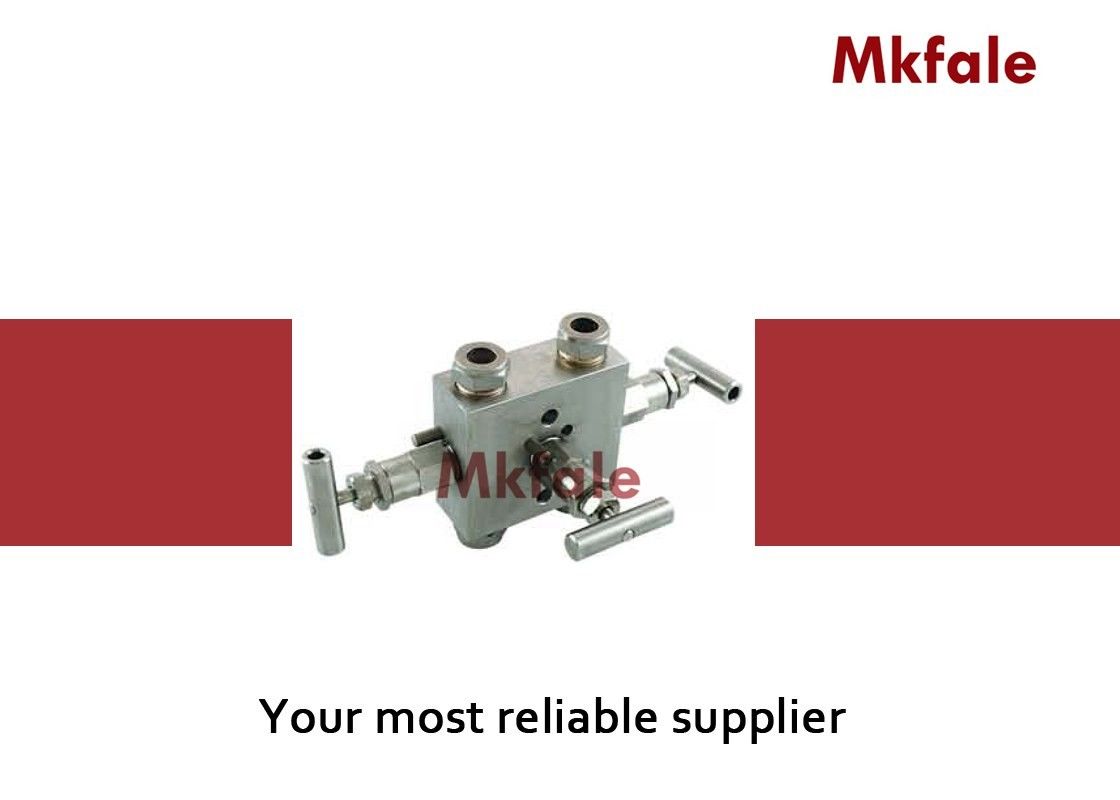

Plastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing Valve

Plastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing Valve

    • Plastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing Valve
    • Plastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing Valve
  • Plastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing Valve

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Model Number: Three Valve Manifolds

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Type: The Block Type , Direct Mount Type , Single Flange Type , Dual Flange Type Model: 3 Valve Manifold
    Body Type: Single Flange Type , Dual Flange Type , Block Type , Direct Mounting Type Packing: PIFE , Grafoil , Other
    Dust Cap: Plastic Stem Type: Ball Type , Vee Type , Other Type
    High Light:

    Screwed Bonnet Needle Valves

    ,

    metering needle valve

    Plastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing Valve








    Three Valve Manifolds is designed for flow static , Static Pressure , Liquid Level instruments application



    Three valve manifolds contain two block valves and one equalizing valve . Perform the block . equalizing and vent requirement of differential pressure by providing one compact valve assembly .



    The block type ( R type , pipe to pipe ) in – line three valve manifold is designed for differential pressure or flow recorder to impulse tubing . Connections are 1 / 2 “ NPT on industry standard and 2 – 1 / 8 “ ( 54mm ) center – to – center dimension ( Model for 2 – 3 / 16 “ & 2 – 1 / 4 “ center – to – center dimensions are available )



    D type ( direct mount , pipe to flange ) , T type ( single flange , pipe to flange ) and H type ( dual flange , flange to flange ) manifolds bolt directly to the differential pressure instruments which eliminate the need for unnecessary piping , valves and fittings .



    D type manifold is a light weight and compact design and direct mounting to standard differential pressure transmitters . T Type manifold comes complete with mounting kit for quick and easy installation to a pipe stand . H type manifold is designed for close .






    Why choose us



    1: Various style for each products and completely series industry instruments.
    2: Large stock for fast shipping .
    3: High quality with competitive price .

    4: Provide free products information .
    5: Reliable quality assured and active after-sell service



    FAQ



    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .

    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .

    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



    Plastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing ValvePlastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing ValvePlastic Dust Cap Three Valve Manifold With Two Block Valves And One Equalizing Valve
