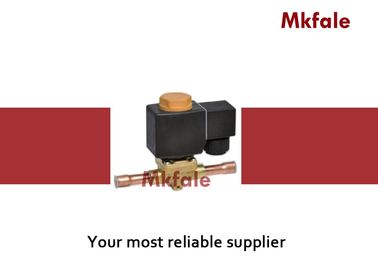

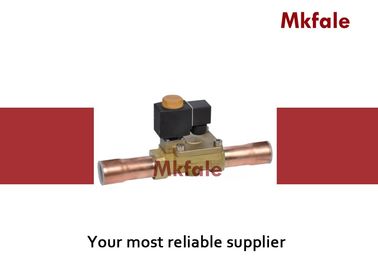

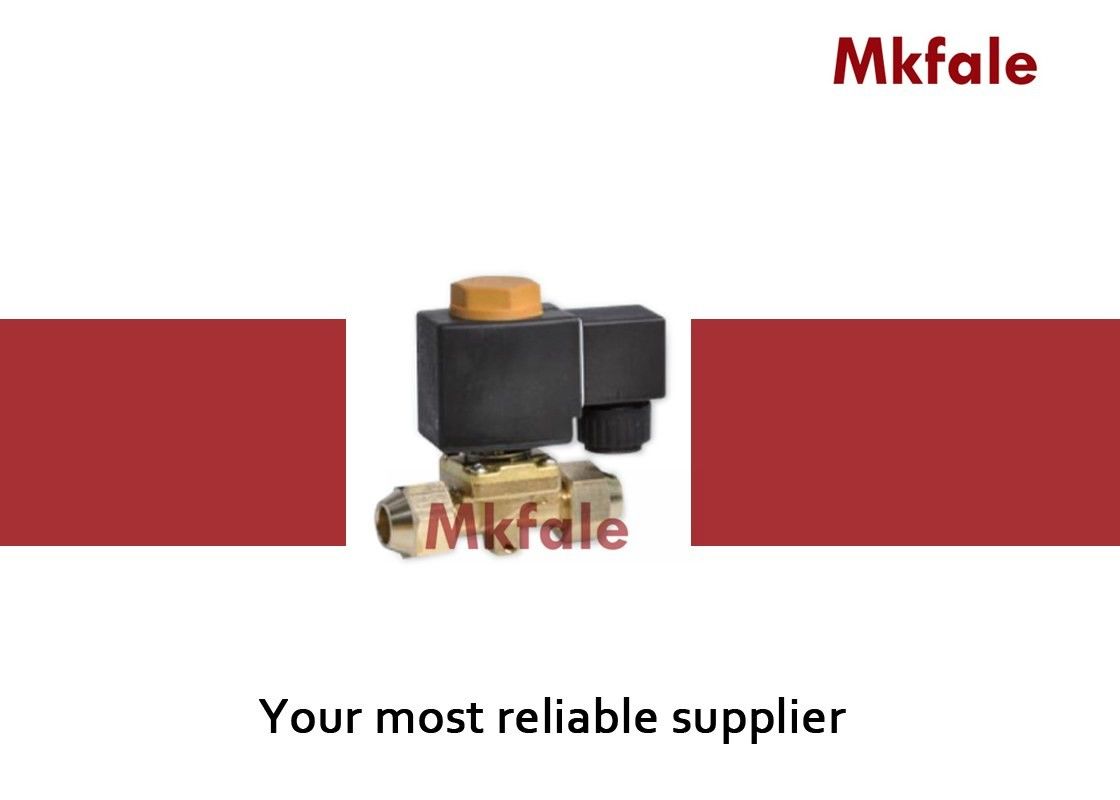

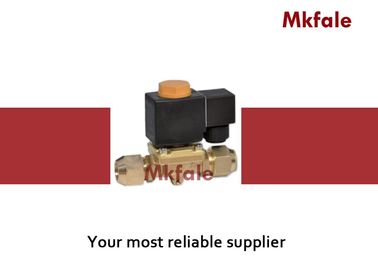

SMF Series Improved Solenoid Valve Direct Acting / Diaphragm Pliot Operated Solenoid Valve
Porduct Introduction
This Solenoid Valve is an automatic control parts used in liquid line, suction line and steam line of refrigeration system to control the refrigerant to pass or not pass, the valve is widely used in refrigeration compressor group, central air-conditioning, cold storage equipment and bus air-conditioning system.
Model/Technical Parameters
| Model |
Operating
Principles
|
Port Size ( mm ) |
Connection Size |
Opening Pressure
Differential(bar)
|
Dimension
(mm)
|
| SAE(in) |
ODF |
Min
|
Max |
| in. |
Mm |
in. |
Mm |
A.C |
D.C |
Length |
Width |
Height |
| SHF2-02 |
Direct
Acting
|
2.5 |
1/4" |
6 |
|
|
0 |
25 |
19 |
71 |
31 |
82 |
| SHF2-02S |
|
|
1/4" |
6 |
112 |
31 |
82 |
| SHF3-03 |
3 |
3/8" |
10 |
|
|
78 |
31 |
82 |
| SHF3-03S |
|
|
3/8" |
10 |
112 |
31 |
82 |
| SHF7-03 |
Diaphragm
Pliot Operated
|
7 |
3/8" |
10 |
|
|
0 . 0 5 |
28 |
82 |
33 |
90 |
| SHF7-03S |
|
|
3/8" |
10 |
114 |
33 |
90 |
| SHF7-04 |
1/2" |
12 |
|
|
85 |
33 |
90 |
| SHF7-04S |
|
|
1/2" |
12 |
118 |
33 |
90 |
| SHF8-03 |
8 |
3/8" |
10 |
|
|
17 |
106 |
45 |
97 |
| SHF8-03S |
|
|
3/8" |
10 |
125 |
45 |
97 |
| SHF10-04 |
10 |
1/2" |
12 |
|
|
106 |
45 |
97 |
| SHF10-04S |
|
|
1/2" |
12 |
125 |
45 |
97 |
| SHF13-05 |
13 |
5/8" |
16 |
|
|
115 |
45 |
97 |
| SHF13-05S |
|
|
5 / 8 “ |
16 |
159 |
45 |
97 |
| SHF16-06 |
16 |
3/4" |
19 |
|
|
127 |
52 |
110 |
| SHF16-06S |
|
|
3 / 4 “ |
19 |
190 |
52 |
110 |
| SHF19-07S |
19 |
|
|
7 / 8 “ |
22 |
195 |
58 |
117 |
| SHF27-09S |
27 |
|
|
1 – 1 / 8 “ |
28 |
256 |
72 |
120 |
| SHF27-10S |
|
|
1 – 1 / 4 “ |
32 |
|
|
|
| SHF27-11S |
|
|
1 – 3 / 8 “ |
35 |
|
|
|
