|Place of Origin:||China|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Pressure:||0 .. 1 Bar To 400 Bar||Connection Size:||G 1 / 2 Or NPT , Etc|
|Temperature:||- 40 ° .. + 150 ℃||Diaphragm:||Stainless Steel 316L|
|Sealing Ring / Gasket:||PTFE / Viton||Fastening Screw:||Stainless Steel 304|

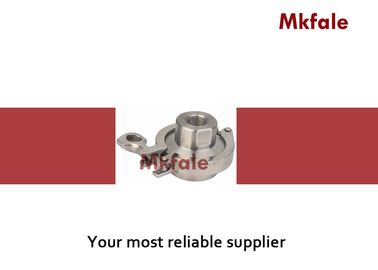

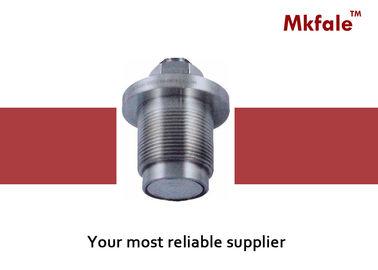

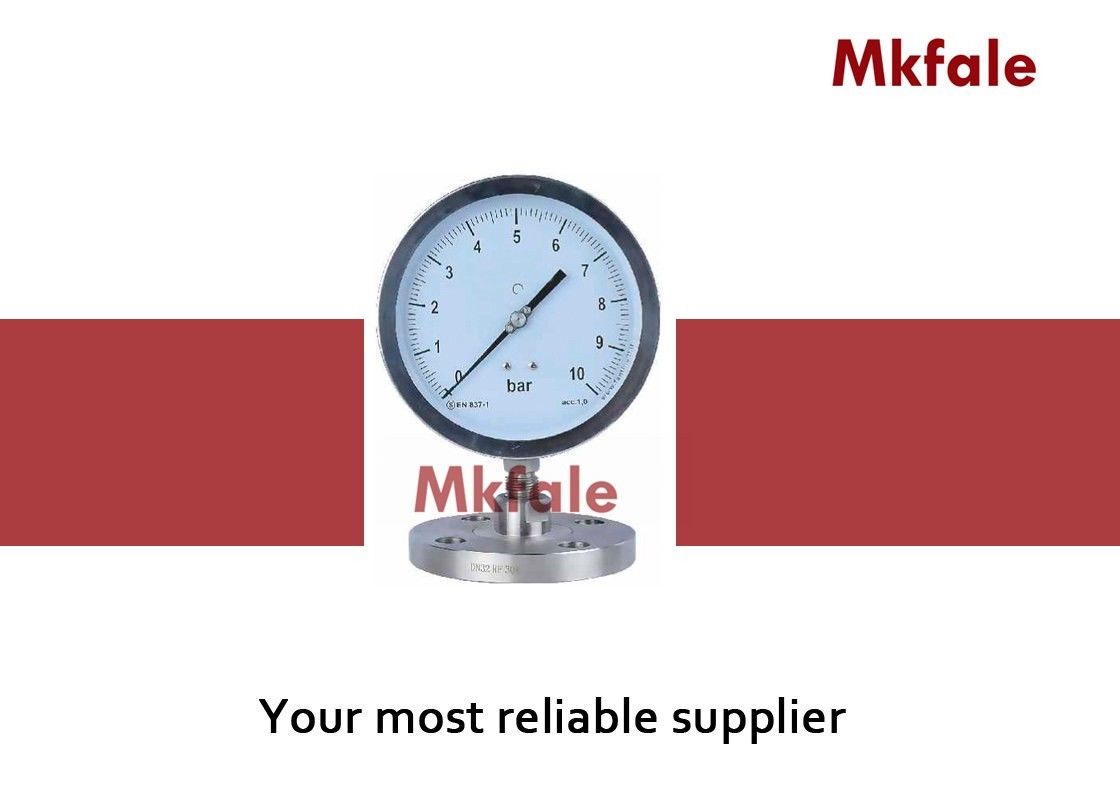

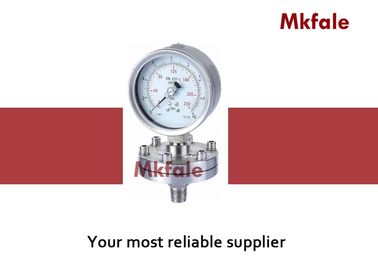

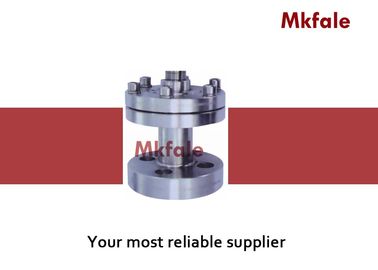

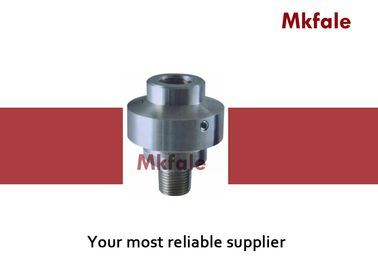

SMPD Series Diaphragm Seal Pressure Gauge Double Laser Welding Diaphragm Design For Sanitary Type
Technical Specification Table
Direct theaded processing type
Applicable with most measuring instruments
Double laser welding diaphragm design
Wide range corrosive applicaions
Stainless steel wetted partsd with options
Various diaphragm materials selection
Model and pressure configuration
Pressure : 0 .. 1 bar to 400 bar
Vacuum : - 1 .. 0 bar
Compound : - 1 .. 24bar
Instrument / Process Connection Size
G 1 / 2 or NPT , other connection size available
Working temperature range
Working temperature - 40 ° .. + 150 ℃
Please refer to filling selection table
Stainless steel armoured capillary , max . 15m

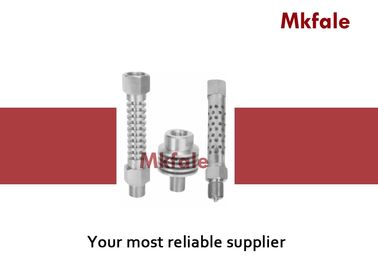

Cooling tower C1 .. C3 ( T ＞ 100 ℃ )
Upper and lower body SS 316 ( Standard ) or SS316L
SS 316L ( Standard ) , * Optional Tiannium , Monel ,
Hastelloy , Tantalm , or others
Sealing ring / gasket
PTFE / Viton seal * Optional Nirtile , Rubber , Fluoroplastic
Fastening Screw SS 304
Diaphragm filling Standard Silicone oil
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
