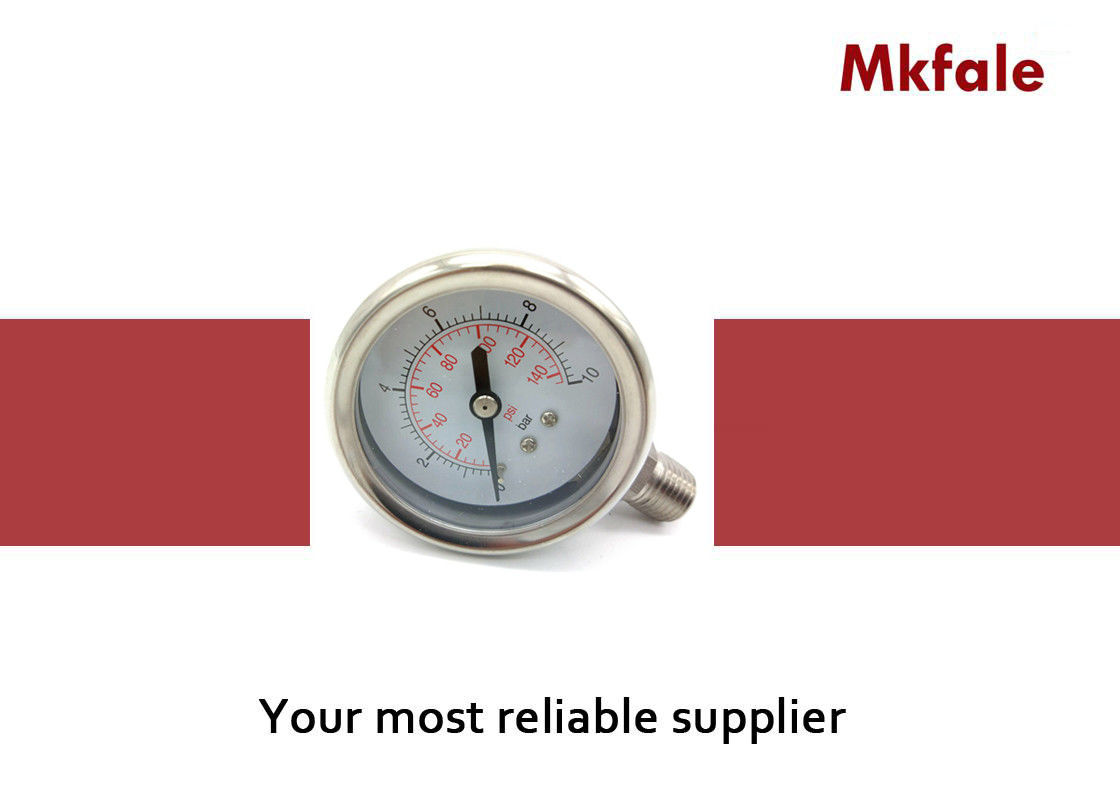

50L Magnehelic Digital Oil Filled Air Pressure Gauge SM2SS With Clear To Read

50L Magnehelic Digital Oil Filled Air Pressure Gauge SM2SS With Clear To Read

50L Magnehelic Digital Oil Filled Air Pressure Gauge SM2SS With Clear To Read

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SM2SS

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Nominal Size: 50mm Accuracy Class: Class 2 . 5
Connection Size: 1 / 4 " Filling: Dry Or Liquid Filled
Connection: Stainless Steel 304 Window: Plastic

50L Magnehelic Digital Oil Filled Air Pressure Gauge SM2SS With Clear To Read








Technical Specification Table



NORMAL TWO PIECE SCREWED CONNECTION STAINLESS STEEL CASE PRESSURE GAUGE SM2SS
Application

Extreme corrosive and severe environment. It is

used on pneumatic control system, control panel,

pressure regulator, valve positioner, analyzer,

pneumatic actuator, etc. Idustries coverage are as

Oil&Gas On&Offshore, power plants, steel

mining, process, pulp and paper water.

Features

Accuracy class 2.5,class 1.6, Wide range vibration application

Stainless steel case design, Knock-down system back and front flange

Two piece screwed connection design, Over pressure up to 30% of Full Scale

Restrictor screw standard, Excellent vibration resist with liquid filling

Design scale ranges up to 600 bar





Technical Specification



Nominal Size : 40 , 50 , 63 ,75 ,100 and 150mm

Accuracy Class : Class 2 . 5 , Class 1 . 6 ( ≥ 100mm )

Ingress Protection. : IP65

Connection Size : G1 / 8 , G 1 / 4 , G1 / 2 or NPT or others

Scale Rang : Pressure 0 .. 600 bar , Vacuum - 1 bar .. 0 , Compound - 1 .. 24 bar

Filling : Dry or liquid filled

Tube Element Shape : P ≤ 100 bar in C tube , P > 100 bar in helicoil

Operating Temperature : Ambient temperature – 10 ° .. + 70 ° C , Medium temperature 90 ° C Max.

Temperature Error : Additional error when pressure element tmperature

deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling

Over Pressure Limit : 130 % of F . S . P ≤ 100 bar , 115 % of F . S . P > 100bar

Dial Graduation : Black graduation on white for single range, Black and red graduation on white for dual ranges



Design Material



Casing and Bezel Ring : Stainless steel 316L ( SM2SS )

Sensing Element : Stainless steel 316L ( SM2SS )

Connection : Stainless steel 304 ( SM2SS )

Window : Plastic

Window gasket : Industrial rubber seal

Pointer : Black painted aluminium

Dial Plate : Aluminium alloy



Why choose us



1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.


Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
