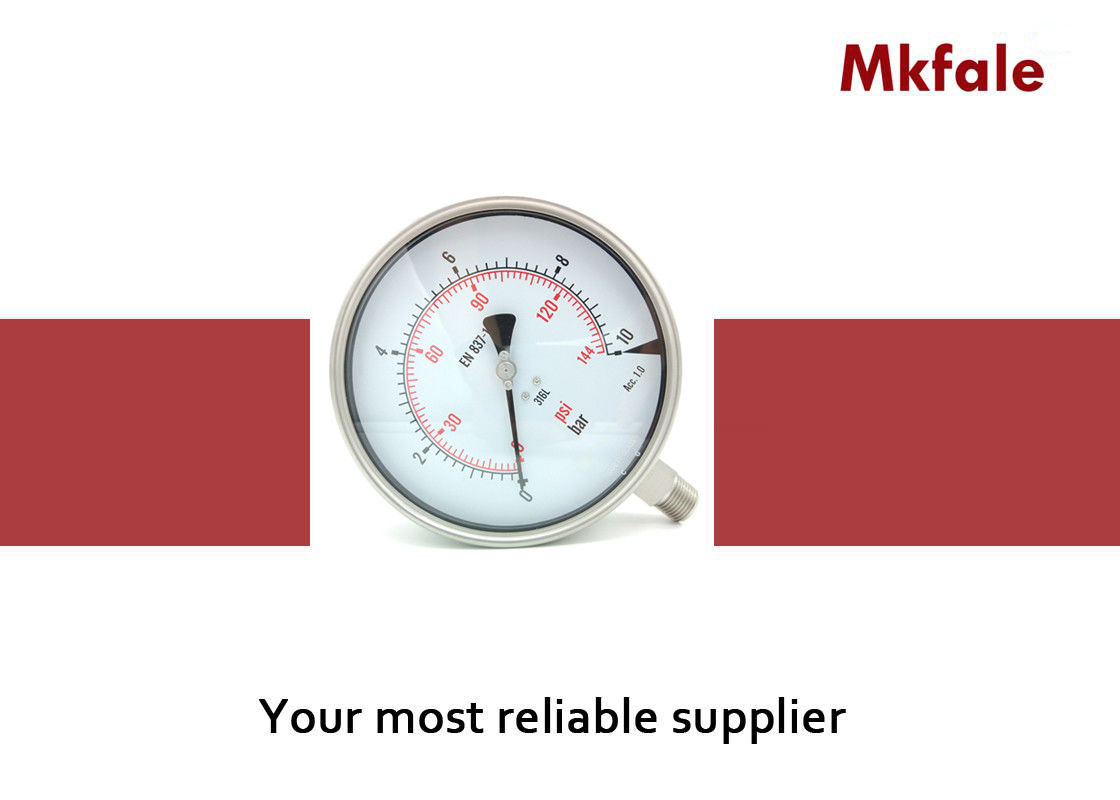

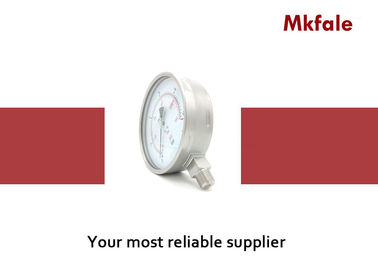

6 Inch Manometer Liquid Filled Stainless Steel Pressure Gauge With SMSS 160mm Back And Bottom

6 Inch Manometer Liquid Filled Stainless Steel Pressure Gauge With SMSS 160mm Back And Bottom

    • 6 Inch Manometer Liquid Filled Stainless Steel Pressure Gauge With SMSS 160mm Back And Bottom
    • 6 Inch Manometer Liquid Filled Stainless Steel Pressure Gauge With SMSS 160mm Back And Bottom
  • 6 Inch Manometer Liquid Filled Stainless Steel Pressure Gauge With SMSS 160mm Back And Bottom

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Model Number: SMSS 160L / B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Nominal Size: 160mm Connection Size: 1 / 2
    Ingress Protection.: IP65 ( Weather Tight ) Connection: Stainless Steel
    Window: Plain Instrement Glass Or Laminated Glass Pointer: Black Painted Aluminium

    6 Inch Manometer Liquid Filled Stainless Steel Pressure Gauge With SMSS 160mm Back And Bottom





    Technical Specification Table



    Technical Specification Nominal Size 63,100,150,200 and 250mm
    Accuracy Class Class 1.0
    Ingress Protection. IP65(Weather tight)
    Connection Size G1/4,G1/2 or NPT or others
    Scale Range Pressure 0..600 bar(SMSS Series), Vacuum -1 bar..0, Compound -1..24 bar
    Filling Dry or liquid filled
    Tube Element Shape P≤100 bar in c tube, P>100 bar in helicoil
    Operating Temperature Ambient temperature -10° ..+70° C, Medium temperature 70° C Max.
    Temperature

    Additional error when pressure element tmperature

    deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling

    Over Pressure Limit 130% of F.S.P≤100 bar, 115% of F.S.P>100bar
    Dial Graduation Black graduation on white for single range, Black and red graduation on white for dual ranges



    Application



    SMSS Series is a premium design pressure gauge with fully stainless steel construction,liquid

    fillable and with various option used in extreme corrosive & severe environment.SMSS Series

    can be i ncorporate with most accessories such as Diaphragm chemical

    seal,Siphon,dampener,etc.. to fur ther extend it usages.commonly,uses in Process

    industries,Mining,Power plants,Steel mills,Pulp & Paper,Water & Sewage,Petrochemical

    plants,etc..



    Features



    Accuracy class 1.0, Wide range application

    All stainless steel construction, Knock-down system back and front flange

    Bayonet lock case design, Over pressure up to 30% of Full Scale

    Restrictor screw standard, Excellent vibration resist with liquid filling

    Design scale ranges up to 600 bar



    Design Material



    Casing and Bezel Ring : SS304

    Sensing Element : SS316L

    Connection : SS316L

    Window : Plain instrement glass or laminated glass

    Window gasket : Industrial rubber seal

    Pointer : Black painted aluminium

    Dial Plate : Aluminium alloy

    Mounting Code :

    L:Bottom entry, W:Bottom with back flange, B:Back entry

    F:Back with front flange, Z:Back with bracket



    FAQ



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .

    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .

    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.



    Why choose us


    1: Various style for each products and completely series industry instruments.
    2: Large stock for fast shipping .
    3: High quality with competitive price .

    4: Customize according to your special request .
    5: Provide free products information .
