SMUL Ultrasonic Level Meter Aluminum / Plastic Housing Material DC24V AC220V Power Supply
SMUL ULTRASONIC LEVEL METER
Application
Ultrasonic level meter should be installed in the upper part of the container,under the
control of the electronic unit,the sensor launch a bunch ultrasonic pulse and transmit it to
the measured object.They are reflected back and received by the sensor. Some of received signal transform into electrical signal. From ultrasound be launched to be accepted,the time and the distance that is from the probe to measured medium is proportional Electronic unit detects the time,and calculate the distance to be measured according to the known speed of sound.It can be obtained by subtraction level value.since the temperature has an effect on the speed of sound,the instrument should measure the temperature,to correct the speed of sound.
Features

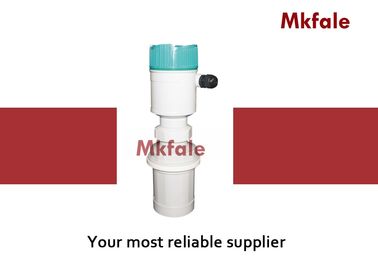

A:2-wire series,compact version B:3-wire series,compact version
C:RS485 series,compact version, D:4-wire series,compact version
E:ExiallCT62-wire series,intrinsically safe explosion-proof,ExiallCT6

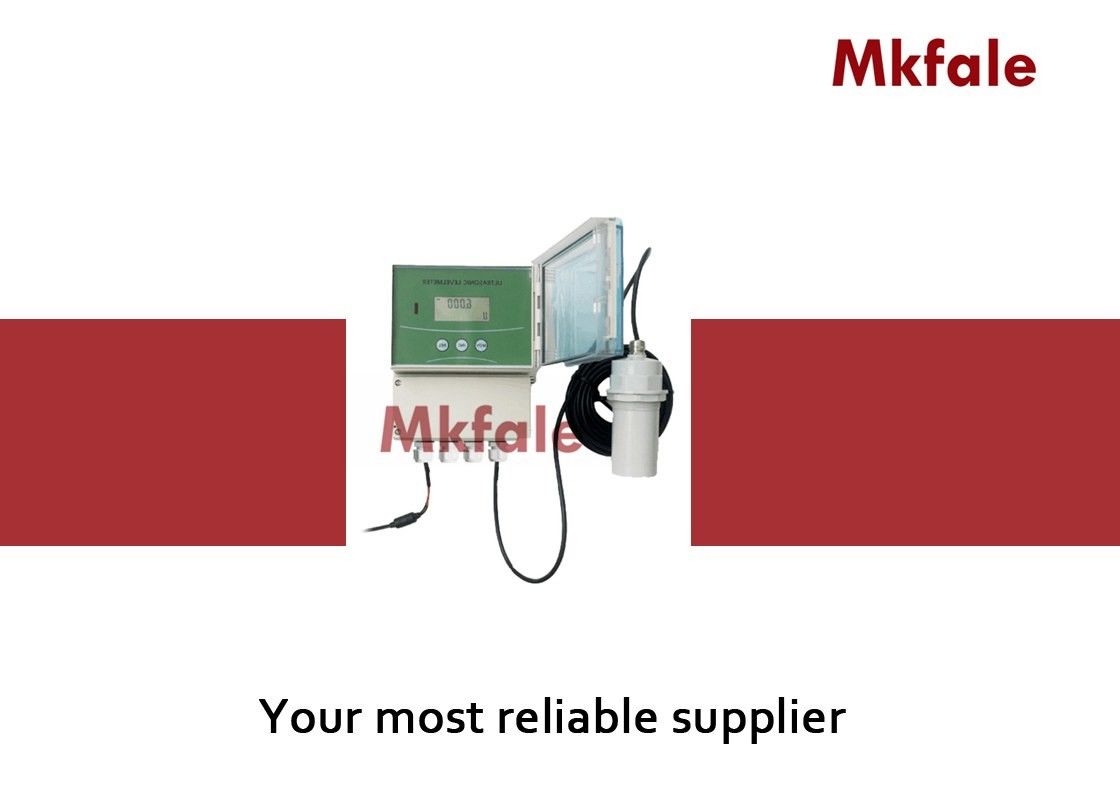

F:Standard series,remote version, G:Multi-functional series,remote version
H:Difference-level meter series,remote version
Housing Material
L: Aluminum, J: Plastic
Range
4: 0~4mm, 6:0~6mm, 8: 0~8mm, 12: 0~12mm
20: 0~20mm, 30: 0~30mm, 40: 0~40mm
Sensor Material
K: ABS & PVC, L:PTFE
Process Connection
G1 1/2 Thread Only range 6 meters optional; G2 Thread Only range 6 meters optional
DN50Flange Only range 6 meters optional; DN65Flange Only range 6 meters optional
DN80Flange Only range 6 meters optional; DN100Flange All range
DN150Flange All range; DN200Flange All range
Output Signal and Communication
DC4-20mA current
Two DC4-20mA electric current,liquid level difference and double point liquid level gauge
C1 RS485-Hilevel, C2 RS485-Modbus, C3 Profibus-DP, C4 Hart
Switch Output
2: 2 SPDT, 4: 4 SPDT, 6: 6 SPDT
Power Supply
D: DC24V, A: AC220V
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Various style for each products and completely series industry instruments.
5: Large stock for fast shipping .
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
