Single Jet Rotating Vane Flow Meter Inlet Strainer Nickel - Plated BodySMSC - 13D5

Single Jet Rotating Vane Flow Meter Inlet Strainer Nickel - Plated BodySMSC - 13D5

Single Jet Rotating Vane Flow Meter  Inlet Strainer Nickel - Plated BodySMSC - 13D5

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMSC 13D5 20D5

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Fluid Temperature: ≤ 40 ℃ Pressure: 1 . 6 MPa
Feature: Sealed Dry Dial Register Ensures Clear Reading Feature 2: Register Can Rotate More Than 360 ° For Easily Reading In Any Position
Diameter: DN13 , DN20 Thread: G3 / 4B , G1B

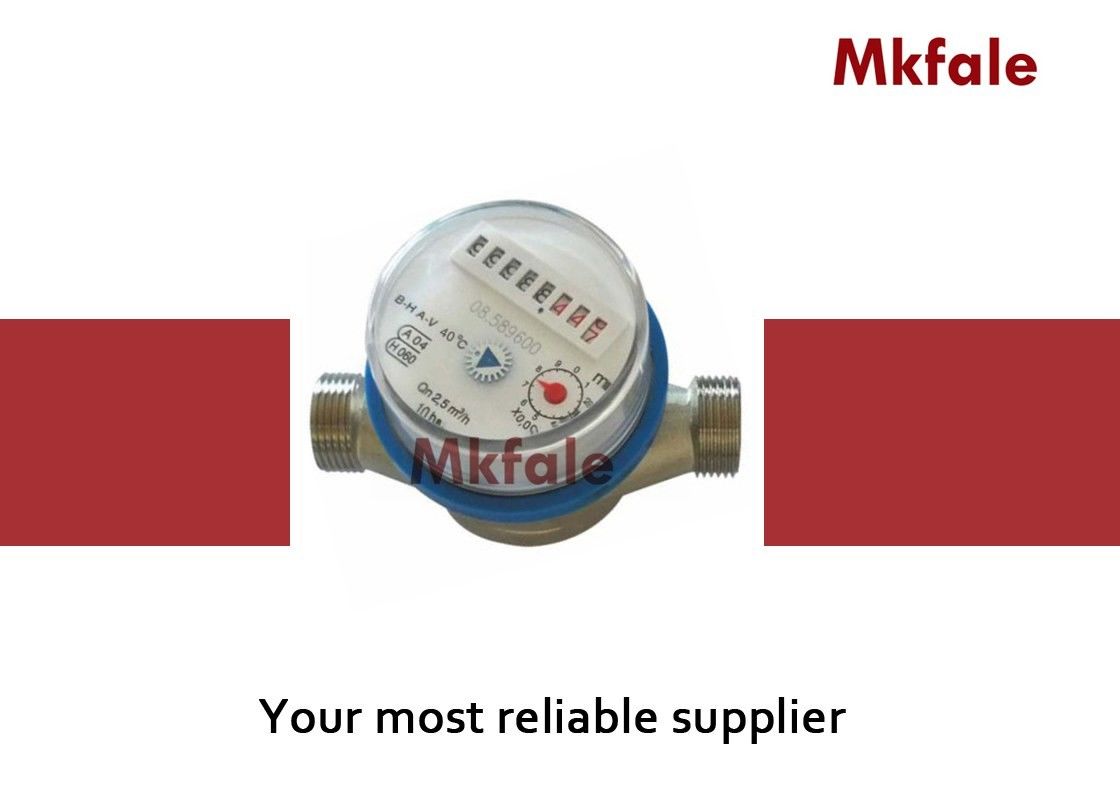

SMSC - 13D5 ~ 20D5 Single Jet Dry Type Inlet Strainer Nickel - Plated Body Vane Wheel Water Meter








Technical Specification Table



Application Measuring the volume of cold potable water passing through the pipeline
Working Conditions

Water temperature : ≤ 40 ℃

Water Pressure : ≤ 1 . 6 MPa

Feature

1 . Small , light

2 . Without retaining ring and lid

3 . Nickel - Plated body

4 . Magnetic drive , lower transmission resistance

5 . Sealed dry dial register ensures clear reading

6 . Register can rotate more than 360 ° for easily reading in any position

7 . Inlet strainer

Compliance with Standard Technical data conforms to ISO 4064 Class B Standard for horizontal installation
Options

U . S. gallon ( USG ) For selecting

Meter for hot water up to 90 ℃ is available

Installation Requirements

The meter should be installed in horizontal position with the register face upwards

Pipeline must be flushed before installation

The meter should be constantly full of water during operation



Dimensions and Weight



Nominal Diameter DN 13 20
Body Thread D G3 / 4B G1B
Connector Thread d R1 / 2 R3 / 4
Body Length mm L 80 / 110 130
Overall Length mm L1 174 / 204 234
Width mm W 76 76
Meter Height mm H 72 . 5 73
Weight Without Connectors Kg 0 . 44 / 0 . 52 0 . 62
Weight With Connectors Kg 0 . 62 / 0 . 7 0 . 9



" L1 " is the total length when coupling gaskets without compression .




Main Technical Data



Nominal diameter DN 13 20
Maximum flow rate m³ / h Qmax 3 5
Nominal flow rate m³ / h Qn 1.5 2.5
Transition flow rate l / h Qt 120 200
Minimum flow rate l / h Qmin 30 50
Maximum reading m³ 99999.99995
Minimum reading m³ 0.00005



Maximum Permissible Error



In the lower zone from Qmin inclusive up to but excluding Qt is ± 5 %

In the upper zone from Qt inclusive up to  and including Qmax is ± 2 %
