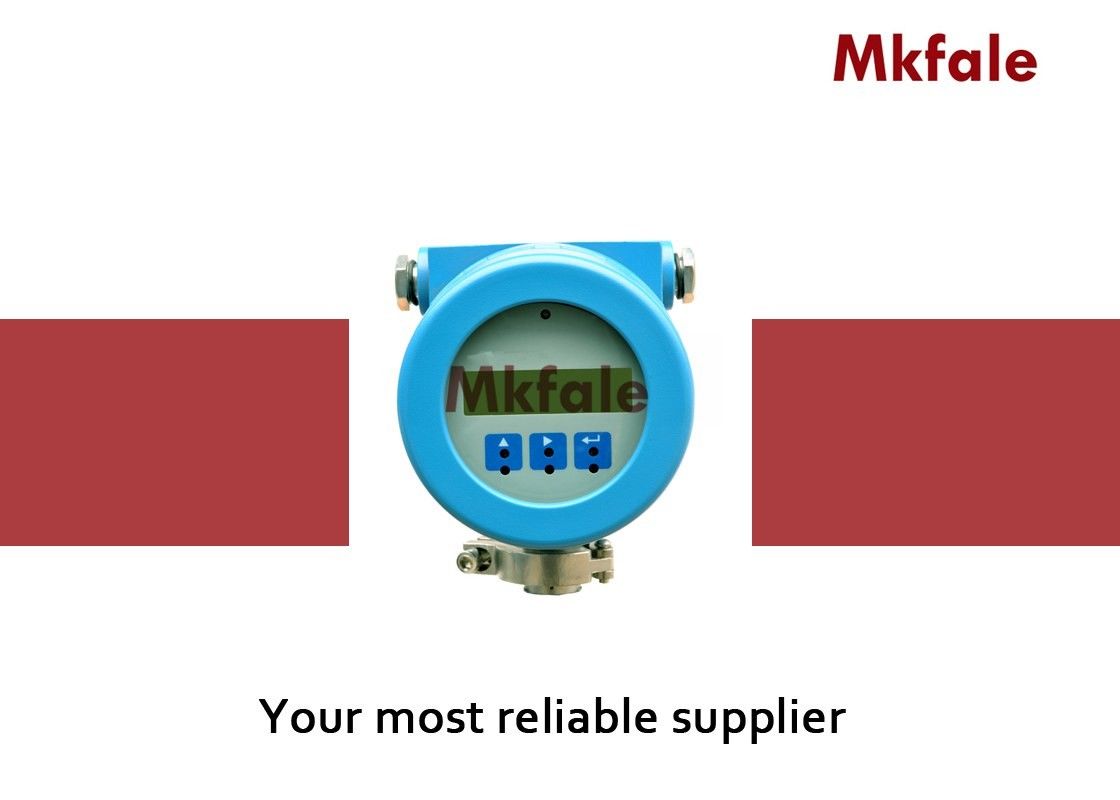

SMDPT100 Digital Precision Flow Meter Transmitter , 200 kg / m ³ ~ 3000kg / m³ Desity Ranges

SMDPT100 Digital Precision Flow Meter Transmitter , 200 kg / m ³ ~ 3000kg / m³ Desity Ranges

SMDPT100 Digital Precision Flow Meter Transmitter , 200 kg / m ³ ~ 3000kg / m³ Desity Ranges

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMDPT

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Ranges: 4mA ~ 20mA Error: ± 0 . 2 % F S
Zero Pint: ± 0 . 1 % F S Power Supply: 24VDC , Inner Single Power Supply ,
Loading: 250 Ω ~ 750 Ω Desity Ranges: 200 Kg / M ³ ~ 3000kg / M³
High Light:

coriolis type flow meter

,

coriolis mass meter

SMDPT100 Digital Precision Flow Meter Transmitter , 200 kg / m ³ ~ 3000kg / m³ Desity Ranges





Functions



To achieve the direct measurements of flow , density and temperature , meanwhile indirectly measuring volume flow .



To achieve the exchanging of transmitter without matching the sensor for calibration again ;



Outputting frequency , electric current and RS485 signal , also the output parameters can be configured .



There are three keys for operation and achieving the functions of configuration , checking , etc ;



There are double lines Chinese display for prompting the operations of measurement parameters and configuration



The damping factor can be adjusted , and smooth variables are displayed as output ;



Indicating of faults state : showing the alarming information , status light is indicating ;



Allowing the specific values output of flow , circulation current and frequency .



Flow error



Connected to P series Mass Flow Sensor : Accuracy : ± 0 . 1 %

Allowed mass flow error : within turndown 15 : 1 ± 0 . 1 %

Beyond turndown 15 : 1 ± ( zero stability / instant flow ) ± 100 %

Measuring repeatability : Within turndown 15 : 1 ± 0 . 05 %

Beyond turndown 15 : 1 ± 1 / 2 ( zero stability / instant flow ) ± 100 %



P series zero stability :



Model P10 P15 P20 P25 P50 P80 P100 P150 P200 P250
Kg/h 0 . 10 0 . 30 0 . 63 1 . 70 6 . 30 16 . 0 36 . 0 55 . 0 110 . 180 . 0



Connected to N Series Mass Flow Sensor : Accuracy ± 0 . 15 %

Allowed mass flow error : within turndown 15 : 1 ± 0 . 15 %

Beyond turndown 15 : 1 ± ( zero stability / instant flow ) ± 100 %

Measuring Repeatability : within turndown 15 : 1 ± 0 . 075 %

Beyond turndown 15 : 1 ± 1 / 2 ( Zero stability / instant flow ) ± 100 %



Model N5 N10 N15 N20 N25 N50 N80 N100 N150 N200 N250
Kg / h 0 . 05 0 . 15 0 . 45 0 . 95 2 . 55 9 . 45 24 . 00 54 . 00 82 . 50 165 . 00 270 . 00





Density ranges : 200kg / m³ ~ 3000kg / m³

Density error : P series ± 1 kg / m³ N series ± 2kg / m³

Measuring process temperature ranges

Remote installation : - 50 ℃ ~ + 350 ℃

Compact installation : - 50 ℃ ~ + 125 ℃

Measured temperature error : ± 0 . 5 ℃

Electric current output

Representation variables mass flow / volume flow / density / temperature

Range : 4mA ~ 20mA

Error : ±0 . 2 % FS

Zero pint : ± 0 . 1 % FS

Power supply : 24VDC , inner single power supply , influence to accuracy : 50nA / mV

Loading : 250 Ω ~ 750 Ω
