Portable Compressed Air Flow Meter / Digital Flow Meter For Water , Steam
Water Electromagnetic Flow meter , Sanitary electromagnetic flow meter , Turbine flow meter , Ultrasonic flow meter , Ultrasonic level meter , Mass flow meter , Stainless steel Gauge , oil liquied gauge , Bimetal thermometer,pressure transmitter , level transmitter , needle valve , Water solenoid Valve .

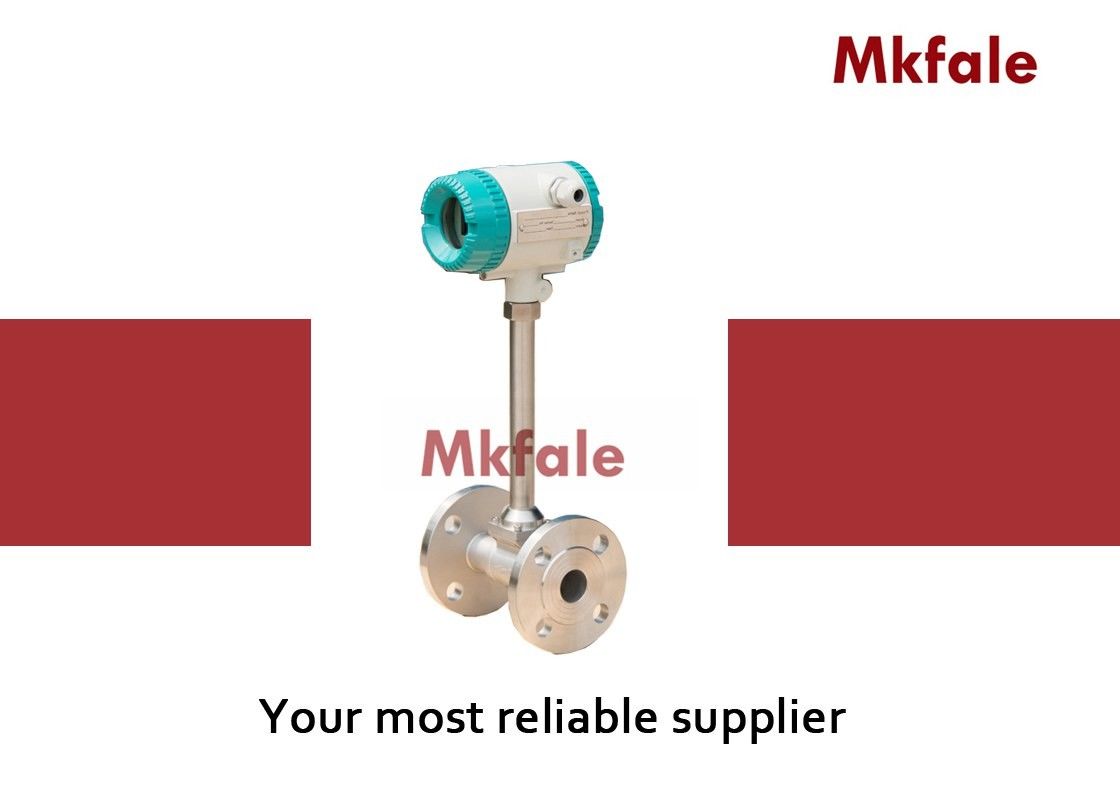

SMVF Vortex Flow Meter
Integrated Type
| Nominal Diameter |
DN10~DN300(Flange and wafer), DN100~DN3000(Insertion) |
| Body Material |
Cast steel; SS304; SS316L |
| Connection Type |
Flange; Wafer; Insertion; Others |
| Power |
24VDC |
| Special Mark |
Blank: Common; M: Standard Signal Output; B: Intrinsically Safe Explosion-proof
X: On Site Display; G: High Temperature(350℃)
W: Temperature Compensation; Y: Pressure Compenstion
Z: Temperature & Pressure Compensation
|
| Measured Medium |
Liquid; Common Gas; Saturated Steam; Superheated Steam; Others |
Featres
Normally : - 40 ℃ ~ 350 ℃
Communication : HART , RS485
Brand new digital processing calculation ,
enjoy excellent anti - vibration & anti - interference performance
Adopt built - in sensor structure , better protect the flow sensor
Flow sensor embedded temperature sensor , reduce the leakage point
Main body adopt precesion casting technology , stronger swirl generating body
Flange/Wafer Type
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
| Mark No . |
150 |
200 |
250 |
320 |
400 |
500 |
650 |
800 |
101 |
125 |
151 |
201 |
251 |
301 |
Insertion Type
| Size |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
1400 |
1600 |
1800 |
2000 |
| Mark No . |
100 |
125 |
151 |
201 |
251 |
301 |
351 |
401 |
501 |
601 |
701 |
801 |
901 |
102 |
122 |
142 |
162 |
182 |
201 |
Nominal Diameter : 25 , 32 , 40 , 50 , 65 , 80 , 100 , 125 , 150 , 200 , 250 , 300 ,
Water :
Standard Measuring Range(m3/h) : 1 . 3 ~ 15 , 1 . 5 ~ 16 , 3 ~ 33 , 4 ~ 44 , 6 ~ 66 , 13 ~ 140 , 20 ~ 220 , 36 ~ 400 , 50 ~ 600 , 100 ~ 1200 , 150 ~ 1800 , 200 ~ 2400
Normal pressure and temperature air(NPT air) :
Standard Measuring Range(m3/h) : 8 ~ 100 , 14 ~ 350 , 18 ~ 450 , 30 ~ 750 , 50 ~ 1250 , 70 ~ 1750 , 100 ~ 2500 , 200 ~ 5000 , 400 ~ 10000 , 600 ~ 15000 , 1000 ~ 25000 , -
Why choose us
1: Various style for each products and completely series industry instruments .
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: 12-18month quality guarantee
