|Place of Origin:||China|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Type:||Remote Separate Type||Sensor Material:||Stainless Steel|
|Medium Temperature:||-20℃~+120℃||Ambient Temperature:||-20℃~+60℃|

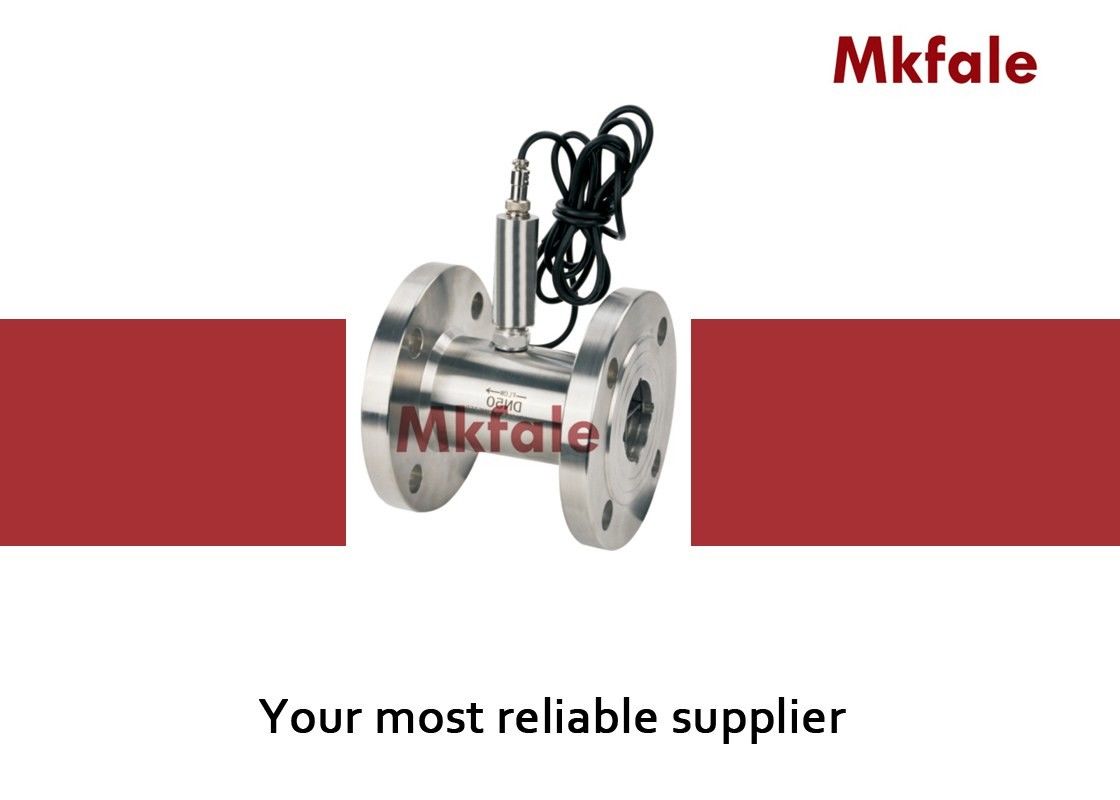

SMTF Remote Separate Type Turbine Flow Meter With Internal Power Supply 3 V 10AH Lithium Battery
Vortex flow meter , Ceramic Liner electromagnetic flow meter , Sanitary electromagnetic flow meter , Ultrasonic flow meter , Ultrasonic level meter , Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , Stainless steel Gauge , oil liquied gauge , pressure transmitter , level transmitter , Temperature transmitter , Water solenoid Valve , Steam Solenoid Valve
Technical Specification Table
Carried Standard :
Turbine flow sensor ( JB / T9246 – 1999 )
Diameter and Connection :
4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80 Thread connection
Measure Ratio :
1 : 10 ; 1 : 15 ; 1 : 20
Sensor Material :
SS304 , SS316L , etc
Explosion Proof Class :
ExiaIICT4 or EXDIIBT6
IP Grade :
IP65 or higher grade for option .
|Description:||This model turbine flow meter adopt new type sensor with lower pressure loss ,
starting flow is small , anti – corrosion , and with long term work life.
It also have good performance on anti-seismic and surging flow.
High accuracy , 0 . 5 % normally , 0 . 2 % in option .
High repeatability , its repeatability could reach 0 . 05 % - 0 . 2 % in short – term .
So this flow meter is a good choice in trade settlement.
This type flow meter use micro-power technology , power consumption is low .
It could be powered by battery or outside power.
|Work Condition||Medium temperature : - 20 ℃ ~ + 120 ℃ , Ambient temperature : - 20 ℃ ~ + 60 ℃
Relative humidity : 5 % ~ 90 % , Atmosphere : 86Kpa ~ 106Kpa
|Signal Output||Pluse , 4 - 20mA|
|Communication||RS485 , HART|
|Power Supply||Outside Power supply : + 24VDC ± 15 % Ripple ≤ ± 5 % , apply to 4 - 20mA output , pulse , RS485 communication .
Internal power supply : 3 . 0V 10AH Lithium battery , regular work when the voltage in the range of 2V - 3V .
|Signal Line Interface||Basic model : Houseman joint or three core cable .
Explosion proof model : Internal thread M20 * 15
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Why choose us
1: 12-18month quality guarantee
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Provide free products information .
