Clamp On Type Ultrasonic Flow Meter , Portable Water Flow Meter With Heat And Cold Measurement

Clamp On Type Ultrasonic Flow Meter , Portable Water Flow Meter With Heat And Cold Measurement

Clamp On Type Ultrasonic Flow Meter , Portable Water Flow Meter With Heat And Cold Measurement

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMFUF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 PCS / Year
Contact Now
Detailed Product Description
Viscosity: ≤ 20000ppm With Less Bubble Pipe Liner Material: Exoxyasphalt , Rubber ,Slurry , Polypropylene , Polystyrene , Bakdlite , Ptfe Etc
Communication Protocol: MODBUS, M-BUS, FUJI Extension Protocol Pipe Material: Carbon Steel, Stainless Steel, Cast Iron, Coper, PVC, Aluminum, FRP And Other Uniform Pipeline, Liner Is Allowable
Max Flow Velocity: 64m / S Measurement Circle: 500ms

Clamp On Type Ultrasonic Flow Meter , Portable Water Flow Meter With Heat And Cold Measurement






Technical Specification Table





Description Automatically record positive/negative/net accumulative flow of the past 512 days,
the past 128months and the past 10years
Automatically record on/off power and flow rate of the last 30times and can
achieve add the flow rate automatically or manually,read by MODBUS protocol
Can program batch (quantitative) controller,with self-diagnosis function
Can achieve software update by code file sent via Email
Dynamic response speed:0.004s
DPS digital signal processing technology,high anti-interference ability
Time resolution 10ts, High accuracy flow measurement,accuracy can be 0.5% class
Heat and cold measurement
Circuit board welding adopt international advanced SMD automatic welding process
CNC precision machining aluminium alloy housing material
Repeatability Better than 0.2%
Measurement circle 500ms(Twice per second,one circle collect 128 group data)
Max Flow velocity 64m/s (velocity resolution 0.001m/s)
Input Signal Three way 4-20mA analog input,accuracy up to 0.1% Can input pressure,level,
temperature and other signal Two way three-wire Pt100 temperature sensor
Data Storage Optional built-in data logger (SD card) can record date,instantaneous flow,
accumulative flow,signal condition etc. Can import data by special software
to computer which is convenient for statistics and management.
Communication
protocol
Communication
protocol MODBUS, M-BUS, FUJI Extension protocol,and compatible with some other
similar products,protocol made by other China manufacturers
Medium Water,sea water,sewage,alcohol,all kinds of oil and other single,uniform,
stable liquid which can transmit ultrasonic wave
Viscosity ≤20000ppm with less bubble
Pipe Material Carbon steel, Stainless steel, Cast iron, Coper, PVC, Aluminum,
FRP and other uniform pipeline, Liner is allowable

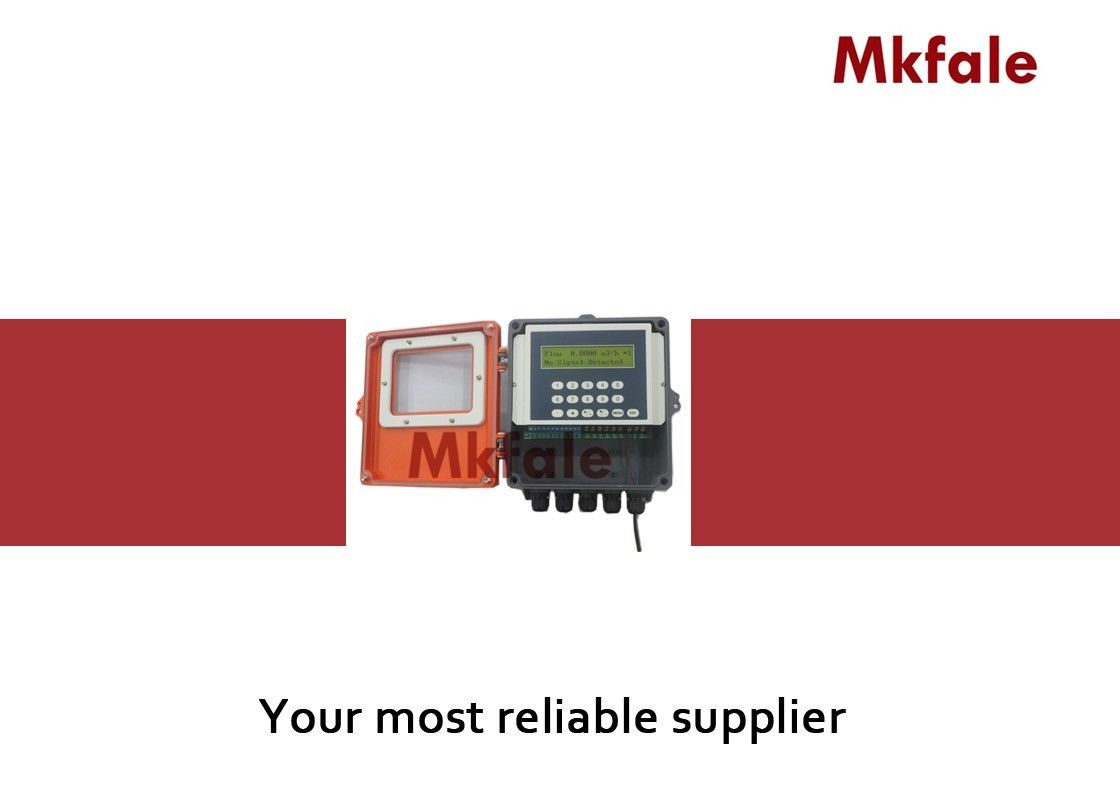

SMFUF Fixed Ultrasonic Flow Meter : Integrated type



Application



SMFUF Series FixedType Ultrasonic Flow Meter is widely used

for online flow measurent of various industrial liquied.

Transmitter type: wall mounted A type, Wall mounted B type, wall mounted explosion type,

Panel type, local display type (F4 type transmitter) and module type;

Transducer type:clamp-on,insertion and pipeline type.



Accuracy



Better than 1%



Display



2*10 English backlight LCD can display instantaneous flow and positive , negative , net accumulative flow , flow velocity etc.



Operation



4*4 touch keyboard operation (F4 transmitter magnetic buttons)



Pipe Liner Material



Exoxyasphalt, Rubber,Slurry, Polypropylene, Polystyrene, Bakdlite, Ptfe etc



Signal Cable



SEYV75-2 type special shielded cable, single line can be lengthened to 500m,

Metal sleeve is needed when cabling to increase anti-interference performance,

Please noted cable shouldn’t parallel with the high tension line,and should

avoid the frequency converter or other interference sources.






Water Electromagnetic Flow meter , Vortex flow meter , Sanitary electromagnetic flow meter , Turbine flow meter , Ultrasonic flow meter , Ultrasonic level meter , Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , oil liquied gauge , Bimetal thermometer,pressure transmitter , Temperature transmitter , Water solenoid Valve , Steam Solenoid Valve



Why choose us


1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
