|Place of Origin:||China|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10000 PCS / Year|
|Measurement Circle:||500ms||Repeatability:||Better Than 0 . 2 %|
|Accuracy:||Better Than 1 %||Operation:||4 * 4 Touch Keyboard Operation|
|Pipe Liner Material:||Exoxyasphalt , Rubber ,Slurry , Polypropylene , Etc||Description:||Heat And Cold Measurement|
SMFUF 500ms Measurement Circle Better Than 0 . 2 % Repeatability Instrument Flow Meter
Water Electromagnetic Flow meter ,Ceramic Liner electromagnetic flow meter , Sanitary electromagnetic flow meter , Turbine flow meter , Ultrasonic level meter , Mass flow meter , , Stainless steel Gauge , oil liquied gauge , pressure transmitter , level transmitter , Temperature transmitter , needle valve , Steam Solenoid Valve

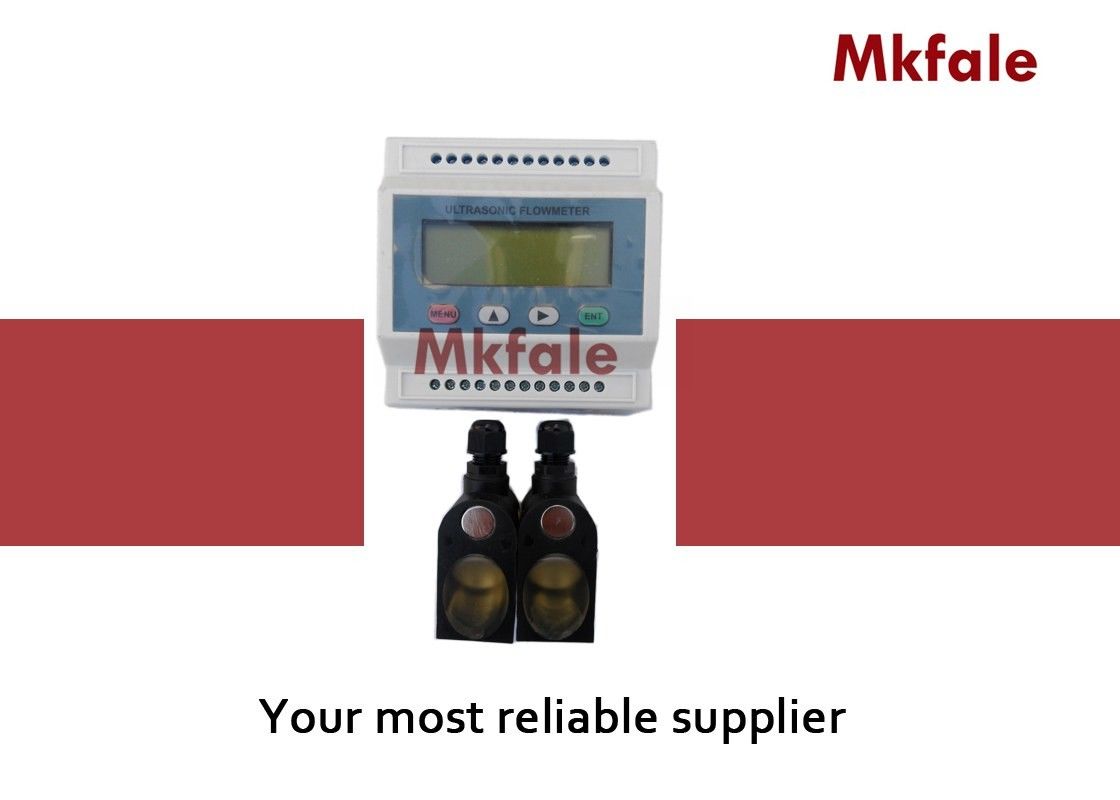

SMFUF Fixed Ultrasonic Flow Meter Integrated type
|Application||SMFUF Series FixedType Ultrasonic Flow Meter is widely used
for online flow measurent of various industrial liquied.
Transmitter type: wall mounted A type, Wall mounted B type, wall mounted explosion type,
Panel type, local display type (F4 type transmitter) and module type;
Transducer type:clamp-on,insertion and pipeline type.
|Accuracy||Better than 1%|
|Repeatability||Better than 0.2%|
|Measurement circle||500ms(Twice per second,one circle collect 128 group data)|
|Max Flow velocity||64m/s (velocity resolution 0.001m/s)|
|Display||2*10 English backlight LCD can display instantaneous flow and positive,
negative,net accumulative flow, flow velocity etc.
|Operation||4*4 touch keyboard operation (F4 transmitter magnetic buttons)|
|Input Signal||Three way 4-20mA analog input,accuracy up to 0.1% Can input pressure,level,
temperature and other signal Two way three-wire Pt100 temperature sensor
|Pipe Material||Carbon steel, Stainless steel, Cast iron, Coper, PVC, Aluminum,
FRP and other uniform pipeline, Liner is allowable
|Signal Cable||SEYV75-2 type special shielded cable, single line can be lengthened to 500m,
Metal sleeve is needed when cabling to increase anti-interference performance,
Please noted cable shouldn’t parallel with the high tension line,and should
avoid the frequency converter or other interference sources.
Automatically record positive/negative/net accumulative flow of the past 512 days,
the past 128months and the past 10years
Automatically record on/off power and flow rate of the last 30times and can
achieve add the flow rate automatically or manually,read by MODBUS protocol
Can program batch (quantitative) controller,with self-diagnosis function
Can achieve software update by code file sent via Email
Dynamic response speed:0.004s
DPS digital signal processing technology,high anti-interference ability
Time resolution 10ts, High accuracy flow measurement,accuracy can be 0.5% class
Heat and cold measurement
Circuit board welding adopt international advanced SMD automatic welding process
CNC precision machining aluminium alloy housing material
Data Storage :
Optional built-in data logger (SD card) can record date,instantaneous flow,
accumulative flow,signal condition etc. Can import data by special software
to computer which is convenient for statistics and management.
Communication protocol :
MODBUS, M-BUS, FUJI Extension protocol,and compatible with some other
similar products,protocol made by other China manufacturers
Water,sea water,sewage,alcohol,all kinds of oil and other single,uniform,
stable liquid which can transmit ultrasonic wave
≤20000ppm with less bubble
Pipe Liner Material :
Exoxyasphalt, Rubber,Slurry, Polypropylene, Polystyrene, Bakdlite, Ptfe etc
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Customize according to your special request .
5: Provide free products information .
