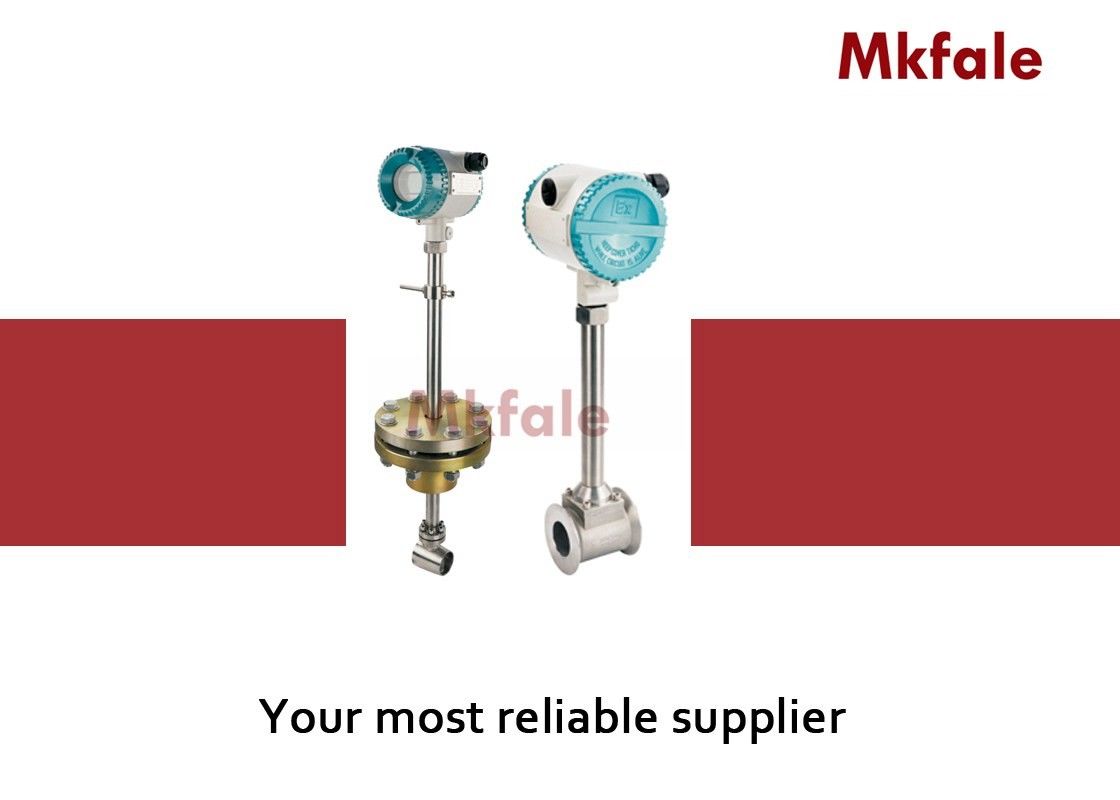

SMVF Vortex Flow Meter Flange , Wafer , Insertion Type 24VDC RS485 Communication

SMVF Vortex Flow Meter Flange , Wafer , Insertion Type 24VDC RS485 Communication

SMVF Vortex Flow Meter Flange , Wafer , Insertion Type 24VDC RS485 Communication

Product Details:

Place of Origin: China
Brand Name: Mkfale
Certification: ISO9001
Model Number: SMVF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Flange Size: 15 ~ 300 Wafer Size: 15 ~ 300
Insertion Type: 100 ~ 2000 Power: 24VDC
Body Material: Cast Steel ; Stainless Steel304 / 316L Normally: - 40 ℃ ~ 350 ℃

SMVF Vortex Flow Meter Falange , Wafer , Insertion Type 24VDC Power HART , RS485 Communication





Technical Specification Table



SMVF Vortex Flow Meter Integrated Type
Description Normally:-40℃~350℃ Communication: HART,RS485 Brand new digital processing calculation, enjoy excellent anti-vibration & anti-interference performance Adopt built-in sensor structure ,better protect the flow sensor Flow sensor embedded temperature sensor ,reduce the leakage point Main body adopt precesion casting technology ,stronger swirl generating body
Nominal Diameter DN10~DN300(Flange and water), DN100~DN3000(Insertion)
Measured Medium Liquid; Common Gas; Saturated Steam; Superheated Steam; Others





Special Mark :

Blank: Common; M: Standard Signal Output; B: Intrinsically Safe Explosion-proof

X: On Site Display; G: High Temperature(350℃)

W: Temperature Compensation; Y: Pressure Compenstion

Z: Temperature & Pressure Compensation



Body Material :

Cast steel; SS304; SS316L



Connection Type :

Flange; Wafer; Insertion; Others



Power :

24VDC





Nominal Diameter 25 32 40 50 65 80 100 125
Water 1.3~15 1.5~16 3~33 4~44 6~66 13~140 20~220 36~400

Standard Measuring

Range(m3/h)

Normal pressure and temperature air(NPT air) 8~100 14~350 18~450 30~750 50~1250 70~1750 100~2500 200~5000

Standard Measuring

Range(m3/h)



Nominal Diameter 150 200 250 300
Water 50~600 100~1200 150~1800 200~2400

Standard Measuring

Range(m3/h)

Normal pressure and temperature air(NPT air) 400~10000 600~15000 1000~25000 -

Standard Measuring

Range(m3/h)



Flange / Wafer Type



Size : 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80 , 100 , 125 , 150 , 200 , 250 , 300

Mark No . : 150 , 200 , 250 , 320 , 400 , 500 , 650 , 800 , 101 , 125 , 151 , 201 , 251 , 301



Insertion Type



Size :100, 125 , 150 , 200 , 250 , 300 , 350 , 400 , 500 , 600 , 700 , 800 , 900 , 1000 , 1200 , 1400 , 1600 , 1800 , 2000

Mark No . : 100 , 125 , 151 , 201 , 251 , 301 , 351 , 401 , 501 , 601 , 701 , 801 , 901 , 102 , 122 , 142 , 162 , 182 , 201



Water Electromagnetic Flow meter , Vortex flow meter , Sanitary electromagnetic flow meter , Turbine flow meter , Ultrasonic flow meter , Ultrasonic level meter , Stainless steel Gauge , oil liquied gauge , Bimetal thermometer,pressure transmitter , level transmitter , needle valve , Water solenoid Valve , Steam Solenoid Valve



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



Why choose us


1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Customize according to your special request .
5: Provide free products information .



SMVF Vortex Flow Meter Flange , Wafer , Insertion Type 24VDC RS485 Communication
