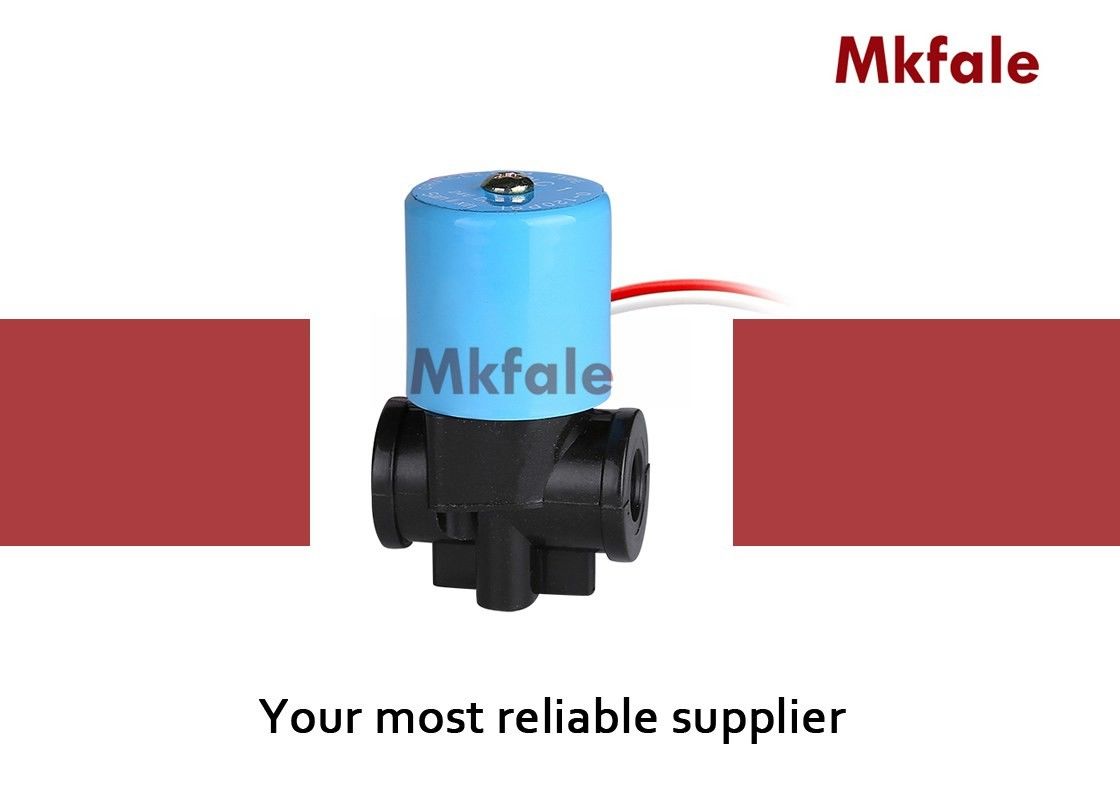

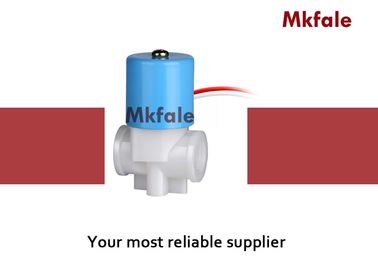

SMLC1 SMLC2 Series Water Dispenser Plastic Solenoid Valve Normally Closed 2 Way Plastic Valvebody 30cm Lead Length
SMLC1 SMLC2
2-way normally closed , 1/8 & 1/4 pipe size , plastic valve body
Specification
Direct acting Normally Closed
Response time : 6~20MSEL
Mounting : Solenoid vertical and upright direction . Fixing screw M5
Using
Fluid media :Water
Fluid Temp :0℃~100 ℃
Ambient Temp :-10 ℃~100 ℃
Characteristics
Power consumption :AC 6.8VA ( Holding ) DC5W
Voltage : AC24V 110V 220V 50/60Hz , DC : 24V
Voltage Tolerance : -10%
Coil class : Class B 130
Duty cycle : 100%
Lead length 30 CM(12")
Component Material
Plunger : IJ117
Seals : EPDM
Body : PP , 1/8(Black) , 1/4(White) , nylon66
Shading Ring : Red copper
Technical Parameter
Pipe Size | Orifice | CV | Operating Pressure PSI | Model Code |
MIN | MAX-AC | MAX-DC |
1/8” | 2.5(3/32) | 0.21 | 0 | 120 | 120 | SMLC1 |
1/4” | 2.5(3/32) | 0.21 | 0 | 120 | 120 | SMLC2 |
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
Why choose us
1: Customize according to your special request .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: Large stock for fast shipping .
5: High quality with competitive price .
