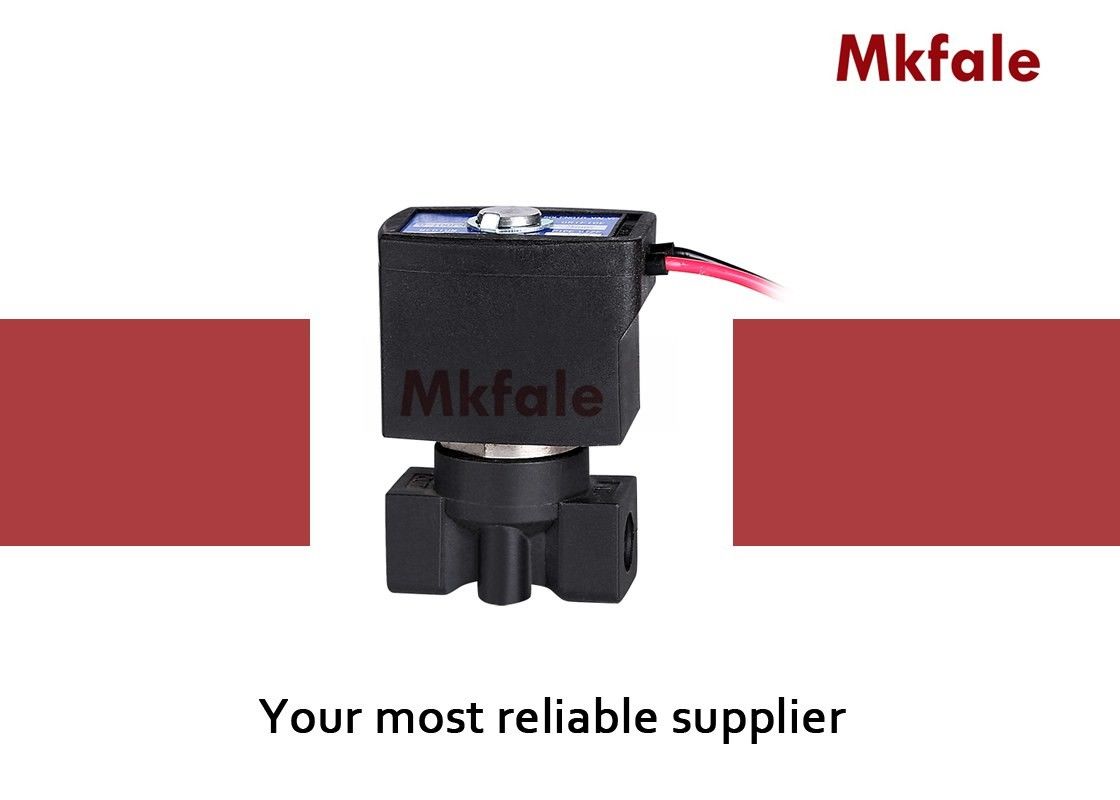

SMLC 5 , SMLC 6 Series Water Dispenser Plastic Solenoid Valve 1/8 1/4 NPT Pipe Size

SMLC 5 , SMLC 6 Series Water Dispenser Plastic Solenoid Valve 1/8 1/4 NPT Pipe Size

SMLC 5 , SMLC 6 Series Water Dispenser Plastic Solenoid Valve 1/8 1/4 NPT Pipe Size

Product Details:

Place of Origin: China
Brand Name: Mkfale
Certification: ISO9001
Model Number: SMLC

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Acting: Direct Acting Fluid Media: Water
Response Time: 6 ~ 20 MSEL Fluid Temp: 0 ~ 100 ℃
Ambient Temp: -10 ~ +40 ℃ Voltage: AC110V , AC220V , DC24V
Lead Length: 30CM (12") Seals: EPDM
High Light:

direct acting solenoid valve

,

miniature high pressure solenoid valve

SMLC 5 , SMLC 6 Series Water Dispenser Plastic Solenoid Valve Normally Closed 2 Way 1/8 1/4 NPT Pipe Size EPDM Seals





SMLC1 SMLC2 SMLC5 SMLC6

2-way normally closed , 1/8 & 1/4 pipe size , plastic valve body

Specification
Direct acting Normally Closed
Response time : 6~20MSEL
Mounting : Solenoid vertical and upright direction . Fixing screw M5

Using
Fluid media :Water
Fluid Temp :0℃~100
Ambient Temp :-10 ℃~100

Characteristics
Power consumption :AC 6.8VA ( Holding ) DC5W
Voltage : AC24V 110V 220V 50/60Hz , DC : 24V
Voltage Tolerance : -10%
Coil class : Class B 130
Duty cycle : 100%
Lead length 30 CM(12")

Component Material
Plunger : IJ117
Seals : EPDM
Body : PP , 1/8(Black) , 1/4(White) , nylon66
Shading Ring : Red copper

Technical Parameter

Pipe Size Orifice CV Operating Pressure PSI Model Code
MIN MAX-AC MAX-DC
1/8” 2.5(3/32) 0.21 0 120 120 SMLC1
1/4” 2.5(3/32) 0.21 0 120 120 SMLC2
1/8” 3.0 0.23 0 120 120 SMLC5
1/4” 3.0 0.23 0 120 120 SMLC6



FAQ



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
