PC55 Pressure Control Switch For Internal Micro - Switch Structure Refrigeration System

PC55 Pressure Control Switch For Internal Micro - Switch Structure Refrigeration System

    • PC55 Pressure Control Switch For Internal Micro - Switch Structure Refrigeration System
    • PC55 Pressure Control Switch For Internal Micro - Switch Structure Refrigeration System
    • PC55 Pressure Control Switch For Internal Micro - Switch Structure Refrigeration System
  • PC55 Pressure Control Switch For Internal Micro - Switch Structure Refrigeration System

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Certification: CE
    Model Number: PC55

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Temperature: -20 ~ 110 ℃ Voltage: AC110V AC220V , Etc
    Max. Voltage: 250VAC Media: Refrigerant , Air , Water
    Type: Pressure Controller Switch Quality Standard: Best

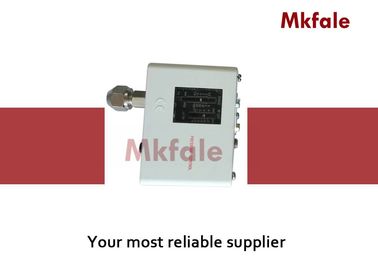

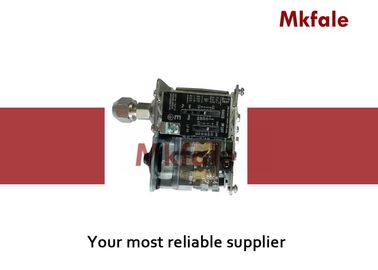

    PC55 Pressure Switch For Refrigeration System With Internal Micro - Switch Structure





    It usually used with fluorinated refrigerants to control the pressure of compressor in refrigeration system. It can also used in air and water. Internal Micro-switch ensures reliable switching. It is provided standard Mounting Bracket.



    PC55 Series pressure switches are used to control the
    Pressure of Compressor in refrigerant system,also
    Available in air or water fluid. This series have quite
    Stable performance with internal micro-switch structure.
    Standard mounting bracket are provided.



    Specification



    Model Range(bar) Differential(bar) Factory Setting(bar) Max Operating
    Min Max Min Max OFF ON Pressure (bar)
    PC 5502 -0.5 2 0.2 0.7 1 0.5 16.5
    PC 5503 -0.5 3 0.35 1.5 2 1 16.5
    PC 5506 -0.5 6 0.6 4 3 2 16.5
    PC 5506M -0.5 6 Reset Differential ≤1bar 3 Manual Reset 16.5
    PC 5508 -0.2 7.5 0.7 4 3 2 20
    PC 5510 1 10 1 3 6 5 16.5
    PC 5514 2 14 1 4 10 8 20
    PC 5516 3 16 1 4 10 8 35
    PC 5520 5 20 2 5 16 13 35
    PC 5530 8 30 Fixed 3 to 5bar 20 15~17 35
    PC 5530M 8 30 Reset Differential ≤4bar 20 Manual Reset 35
    PC 5530D 5 30 3 10 20 15 35
    PC 5532 8 32 2 6 20 17 35
    PC 5542 8 42 4 10 30 25 46.5



    Electrical Function



    Rated Amps.(A)Rated Voltage (V)125VAC : 125VAC , 250VAC , 24VDC

    Full Load : 20A , 10A , 8A

    Locked Rotter : 72A , 72A , 64A

    Temperature : -20~110℃
