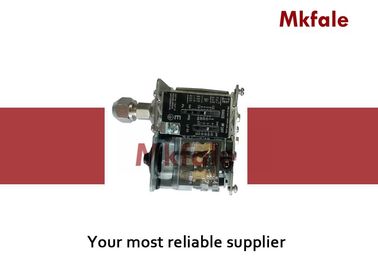

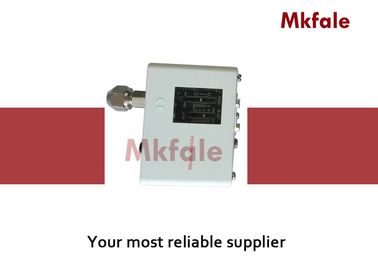

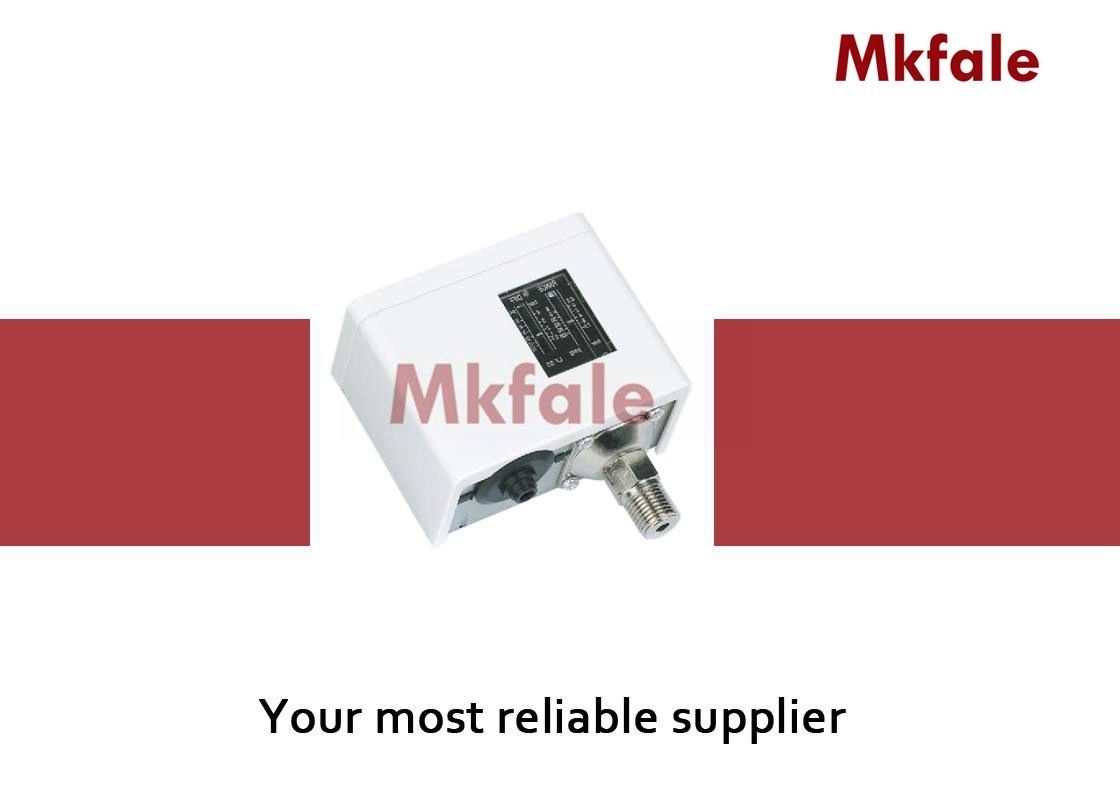

PC55 Pressure Switch For Refrigeration System , Water , Air And With Standard Mounting Bracket
Electrical Function
Rated Amps.(A)Rated Voltage (V)125VAC : 125VAC , 250VAC , 24VDC
Full Load : 20A , 10A , 8A
Locked Rotter : 72A , 72A , 64A
Temperature : -20~110℃
| Model |
Range(bar) |
Differential(bar) |
Factory Setting(bar) |
Max Operating |
| Min Max |
Min Max |
OFF ON |
Pressure (bar) |
| PC 5502 |
-0.5 2 |
0.2 0.7 |
1 0.5 |
16.5 |
| PC 5503 |
-0.5 3 |
0.35 1.5 |
2 1 |
16.5 |
| PC 5506 |
-0.5 6 |
0.6 4 |
3 2 |
16.5 |
| PC 5506M |
-0.5 6 |
Reset Differential ≤1bar |
3 Manual Reset |
16.5 |
| PC 5508 |
-0.2 7.5 |
0.7 4 |
3 2 |
20 |
| PC 5510 |
1 10 |
1 3 |
6 5 |
16.5 |
| PC 5514 |
2 14 |
1 4 |
10 8 |
20 |
| PC 5516 |
3 16 |
1 4 |
10 8 |
35 |
| PC 5520 |
5 20 |
2 5 |
16 13 |
35 |
| PC 5530 |
8 30 |
Fixed 3 to 5bar |
20 15~17 |
35 |
| PC 5530M |
8 30 |
Reset Differential ≤4bar |
20 Manual Reset |
35 |
| PC 5530D |
5 30 |
3 10 |
20 15 |
35 |
| PC 5532 |
8 32 |
2 6 |
20 17 |
35 |
| PC 5542 |
8 42 |
4 10 |
30 25 |
46.5 |
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: One year quality guarantee
