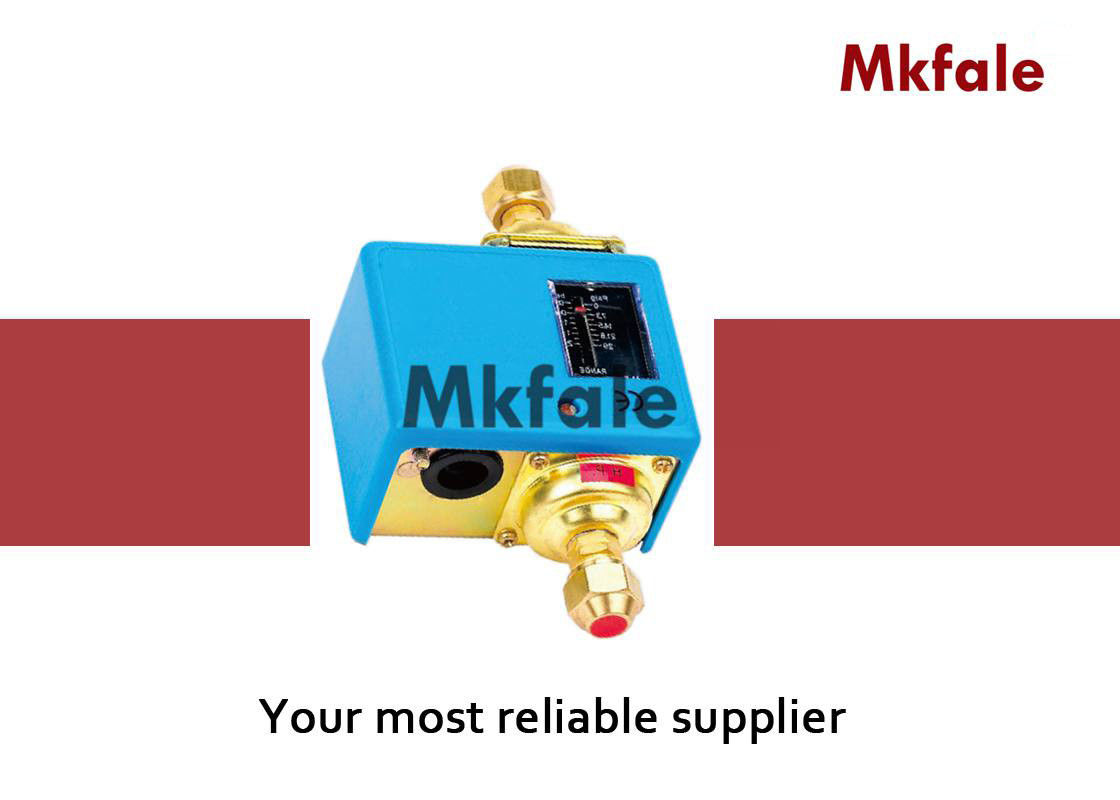

PC5D Auto Reset Oil Differential Pressure Switch Water / Oil AC110V AC220V DC24V

PC5D Auto Reset Oil Differential Pressure Switch Water / Oil AC110V AC220V DC24V

PC5D Auto Reset Oil Differential Pressure Switch Water / Oil AC110V AC220V DC24V

Product Details:

Place of Origin: NINGBO
Brand Name: Mkfale
Certification: CE
Model Number: PC5D

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Temperature: -20 ~ 110 ℃ Voltage: AC110V AC220V DC24V
Model: Oil Differential Pressure Switch Media: Oil , Water
Max Pressure: 33 Bar Locked Roter: 72A , 64A

PC5D Auto Reset Oil Differential Pressure Switch Normally Used In Water , Oil







Specification



Model Differential Adjust Range (Bar) Factory Setting (Bar) Max Operating Pressure (Bar)
Min Max
PC5D2 0.5 2 0.5 16.5
PC5D4 0.5 3.5 1 16.5
PC5D6 0.5 3.5 1 33
PC5D6H 1 6 1 16.5
PC5D4H 1 6 1 33



PC5D series are Pressure differential switches which normally used in water or oil fluid to control the pressure differential of the outlet tube and inlet tube. Bellowing is one of the typical application:install the valve in the pipeline which near the water(oil)pump,when the Pressure differential of the two sides of the system increasing or decreasing and exceed the Setting value,the valve will open. Then the system pressure differential Will reach to the normal circulate. Both two sides of PC5D series have a high Sensitive components ,the switch will act to control the system of the equipment such as Motor driven valve while the pressure differential changes.



It normally use in water, oil series control difference of the outlet tube and inlet tube.



Electrical Function



Rated Amps.(A)/Rated Voltage (V) : 125VAC , 250VAC , 24VDC

Non-Inductive Current : 20A , 10A , 10A

Full Load : 15A , 8A , 8A

Locked Rotter : 72A , 72A , 64A

Temperature : -20~110℃



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece
.



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Why choose us


1: Customize according to your special request .
2: Reliable quality assured and active after-sell service
3: One year quality guarantee
