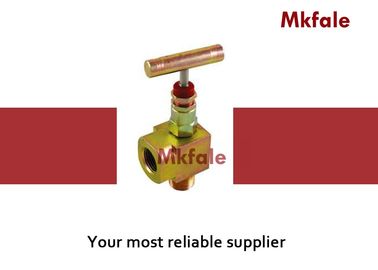

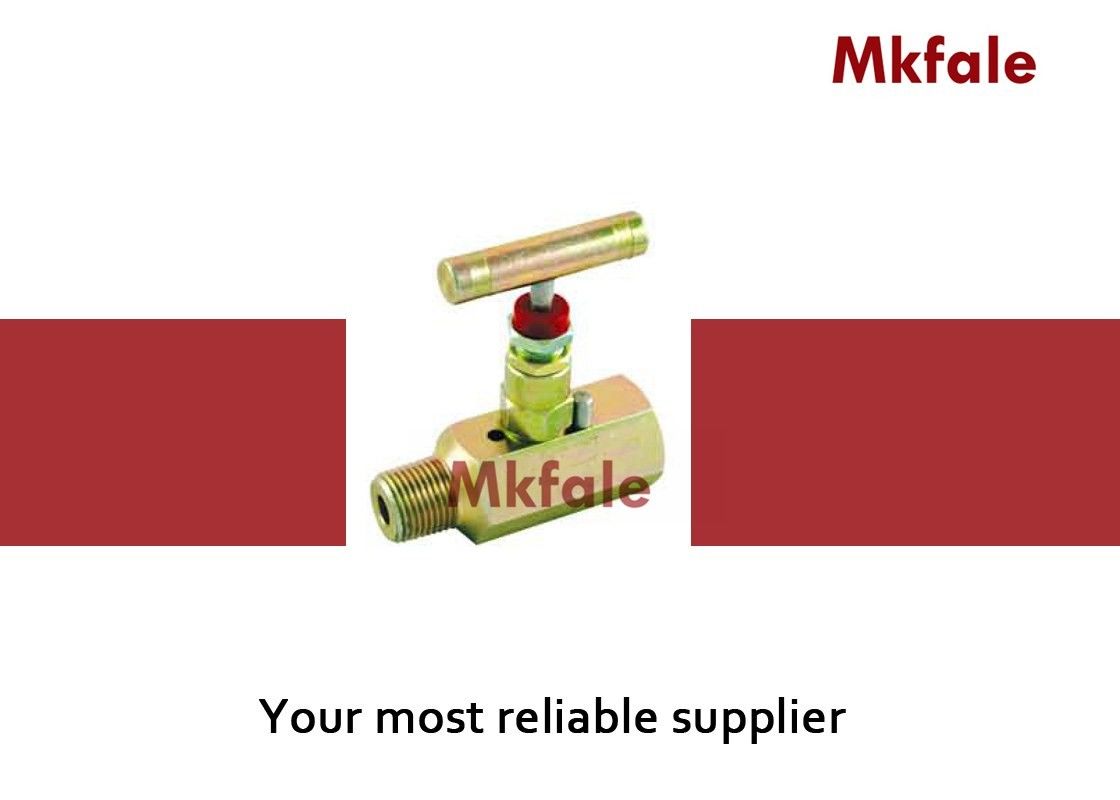

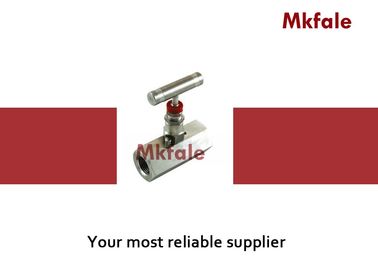

PNV High Pressure Stainless Steel / Carbon Needle Valve Instruments Valve and Parts Inline Type Angle Type
Material Of Construction
| Description |
Grade / ASTM Specification |
| Body Material |
| SS Carbon Steel |
| 1 |
Handle |
SS304 |
A105 |
| 2 |
Set Screw |
SS304 |
A105 |
| 3 |
Lock Nut |
SS304 |
A105 |
| 4 |
Packing Bolt |
SS316 |
A105 |
| 5 |
Packing Gland |
SS316 |
A105 |
| 6 |
Packing Washer |
SS316 |
SS304 |
| 7 |
Packing |
PTFE |
PTFE |
| 8 |
Bonnet |
SS316 |
A105 |
| 9 |
Stem |
SS316 |
SS304 |
| 10 |
Vee Tip |
SS316 SS630 / A564 |
| Ball Tip |
| 11 |
Stop Pin |
SS304 |
SS301 |
| 12 |
Body |
SS316 |
A105 |
| 13 |
Bleed |
SS316 |
Model & External Dimension
Carbon / Stainless Steel High pressure Needle Valve
Thread M × F , F × F
Pressure : - 6000PSI ~ 10000 PSI
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
