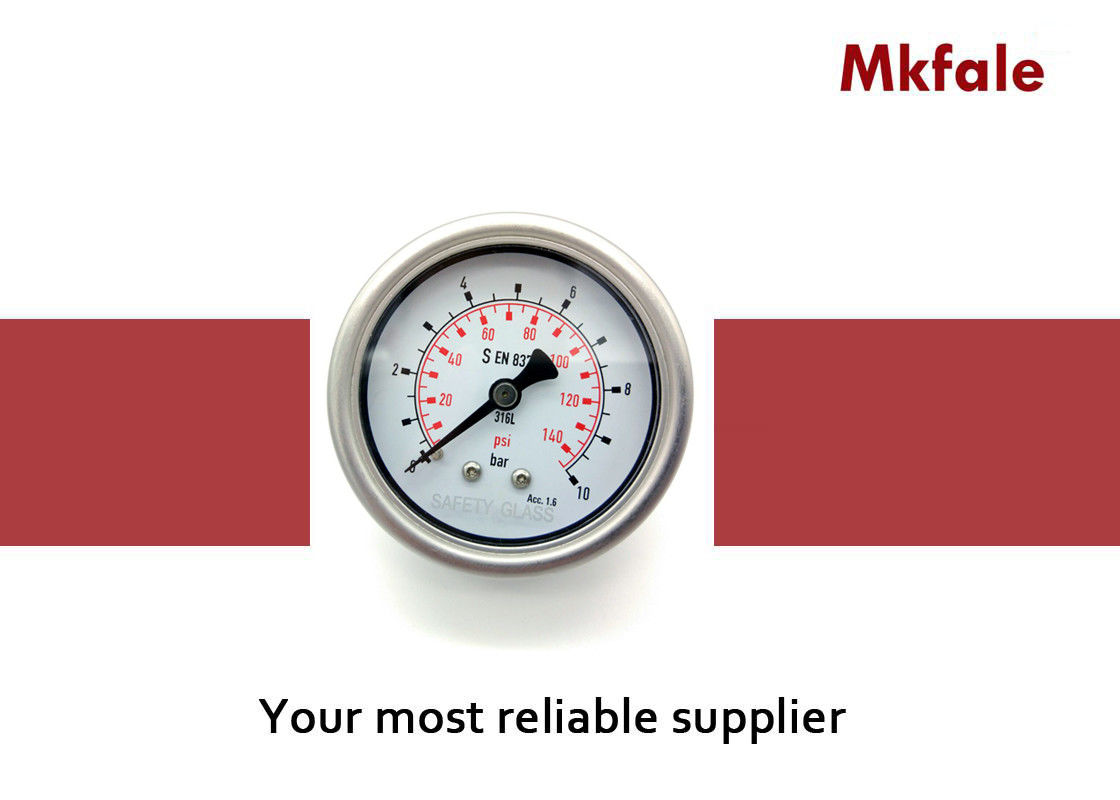

63B / L 2.5 Inch Liquid Filled Fuel Pressure Gauge Laser Welding With CE Certificate
Technical Specification Table
| LASER WELDING ALL STAINLESS STEEL PRESSURE GAUGE |
SMSS |
| Application |
SMSS Series is a premium design pressure gauge with fully stainless steel construction,liquid
fillable and with various option used in extreme corrosive & severe environment.SMSS Series
can be i ncorporate with most accessories such as Diaphragm chemical
seal,Siphon,dampener,etc.. to fur ther extend it usages.commonly,uses in Process
industries,Mining,Power plants,Steel mills,Pulp & Paper,Water & Sewage,Petrochemical
plants,etc..
|
| Features |
Accuracy class 1.0, Wide range application
All stainless steel construction, Knock-down system back and front flange
Bayonet lock case design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Excellent vibration resist with liquid filling
Design scale ranges up to 600 bar
|
| Technical Specification |
Nominal Size |
63,100,150,200 and 250mm |
| Accuracy Class |
Class 1.0 |
| Ingress Protection. |
IP65(Weather tight) |
| Connection Size |
G1/4,G1/2 or NPT or others |
| Scale Range |
Pressure 0..600 bar(SMSS Series), Vacuum -1 bar..0, Compound -1..24 bar |
| Filling |
Dry or liquid filled |
| Tube Element Shape |
P≤100 bar in c tube, P＞100 bar in helicoil |
| Operating Temperature |
Ambient temperature -10° ..+70° C, Medium temperature 70° C Max. |
| Temperature |
Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
|
| Over Pressure Limit |
130% of F.S.P≤100 bar, 115% of F.S.P＞100bar |
| Dial Graduation |
Black graduation on white for single range, Black and red graduation on white for dual ranges |
| Design Material |
Casing and Bezel Ring |
SS304 |
| Sensing Element |
SS316L |
| connection |
SS316L |
| Window |
Plain instrement glass or laminated glass |
| Window gasket |
Industrial rubber seal |
| Pointer |
Black painted aluminium |
| Dial Plate |
Aluminium alloy |
| Mounting Code |
L:Bottom entry, W:Bottom with back flange, B:Back entry
F:Back with front flange, Z:Back with bracket
|
Why choose us
1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
