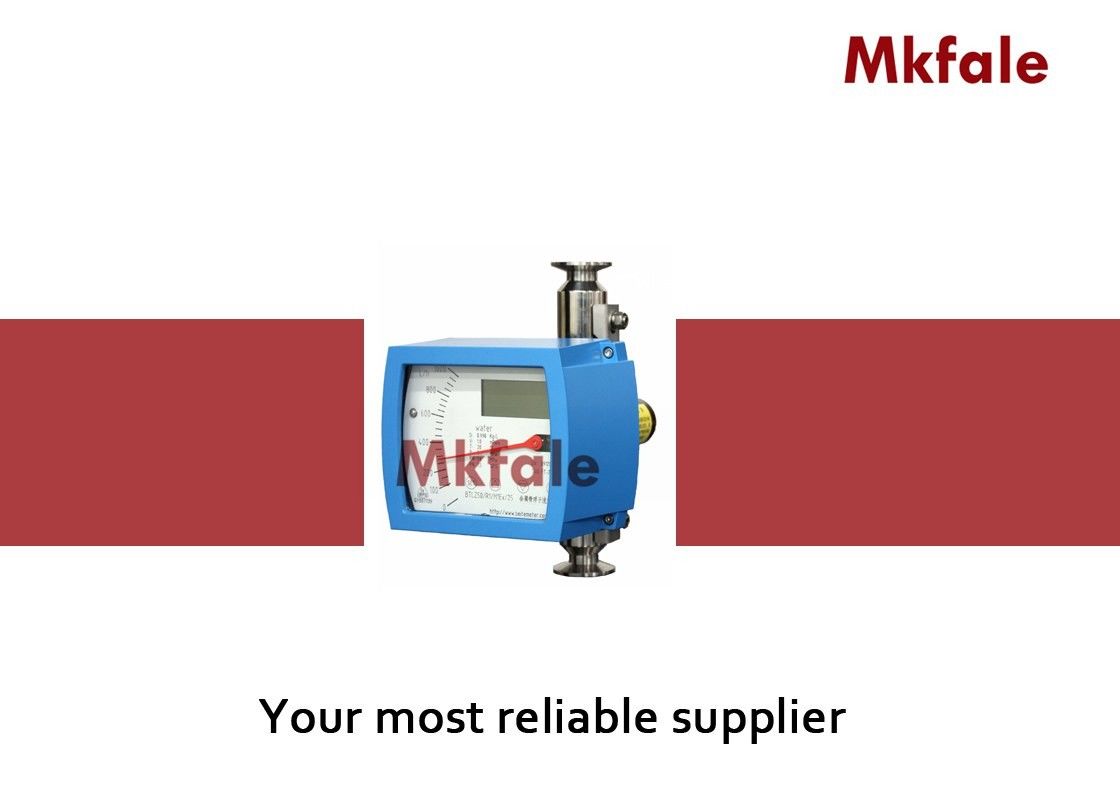

Food Industry Application Variable Area Flow Meter SS316L Metal Tube Rotameter
Standard Specification
Size :
15 , 20 , 25 , 40 , 50, 65 , 80 , 100 , 125 , 150 mm
Measuring Range :
Liquid – 1 ~ 200000 Liter / Hr
Gas – 0.03 ~ 4000 m³ / Hr
Turndown Ratio :
10 : 1 ( 20 : 1 Optional )
Accuracy :
± 1 . 6 % ( Standard )
± 1 . 0 % ( Optional )
Repeatability :
± 0 . 5 % value of reading
Material Tube & Float :
Stainless Steel 304
Stainless Steel 316
Stainless Steel 316L
Stainless Steel + PTFE Liner
Standard Pressure :
40 Kg / cm ² ( 15 mm ~ 50mm )
16 Kg / cm ² ( 65 mm ~ 200mm ).
Temperature :
- 80 ~ +200 ℃ ( Standard )
- 25 ~ + 100 ℃ ( LCD Display )
0 ~ +85 ℃ ( PTFE Liner )
- 80 ~ + 400 ℃ ( Optional )
Flange Type :
JIS 10 K / JIS 20K / JIS 40K
ANSI 150 # / ANSI 300 # / ANSI 600 #
DIN PN 10 / PN 16 / PN25 / PN40
Fluid Viscosity :
300 CP Max .
| Communication |
RS485 ( MODBUS Protocol )
HART signal ( Compatible )
|
| Local Display |
Mechanical Indicator ( Standard ) |
| Digit Dsplay |
4 Digit Flowrate
8 Digit Totalizer
|
|
Current Output
Load
|
4 – 20 mA ( 2 Wire )
Max . 600 Ω
|
|
Pulse Output
Rating
|
Open collector ( Scale Pulse )
3 to 30VDC , 100 mA Max .
|
| Data Storage |
Operation parameters and totalizer figures are stored by EEPROM for more than10 year |
|
Alarm Output
Rating
|
2 point ( Open collector )
3 to 30VDC , 100mA Max .
|
| Keypad |
3 internal keys for programming and display control |
| Ambient Temperature |
- 25 to 60 ℃
|
| Protection Class |
IP65
Intrinsically Safe , Eex ia IIC T5
Explosion Proof , Ex d IIB T6
|
| Housing Material |
Aluminum Alloy |
| Cable Entry |
Standard : M20 Option : 1 / 2 “ NPTF |
| Pressure Loss |
0 . 07 ~ 0 . 7 Kg / cm² |
| Power Supply |
11 ~ 36VDC ( 2 wire 4 – 20 mA )
Ni – MH Battery ( 3 years working hours )
|
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Reliable quality assured and active after-sell service
6: 12-18month quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
