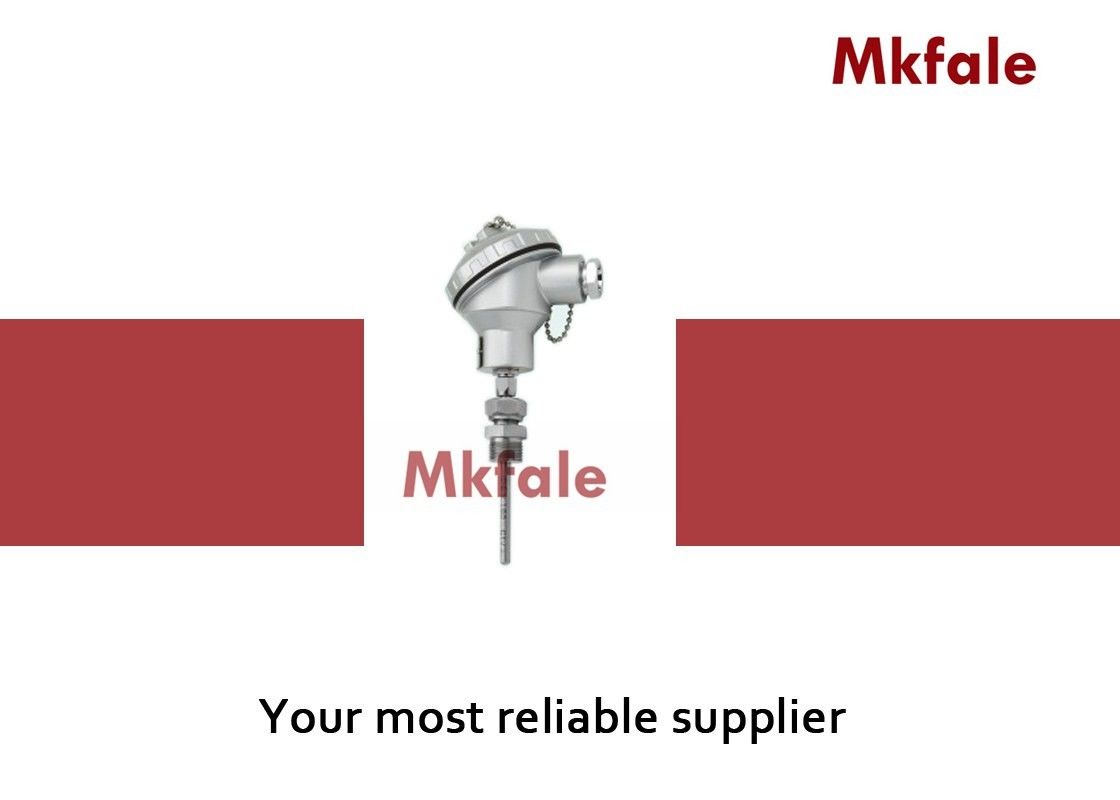

Portable Thermocouple Temperature Transmitter SMITT Clamp Flange , Screw Process Connection Integral

Portable Thermocouple Temperature Transmitter SMITT Clamp Flange , Screw Process Connection Integral

Portable Thermocouple Temperature Transmitter SMITT Clamp Flange , Screw Process Connection Integral

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMITT

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Accuracy: ± 0 . 2 % F S , ± 0 . 5 % F S Output: 4 … 20mA
Power Supply: 12 … 36 VDC ( Or 24VDC ) Humidity: 5 … 95 %
Power Consume: < 0 . 5 W ( 24VDC ) Senor: RTD / TC
High Light:

smart temperature transmitter

,

temperature indicating transmitter

Portable Thermocouple Temperature Transmitter SMITT Clamp Flange , Screw Process Connection Integral







Technical Specification Table



Accuracy : ± 0 . 2 % F S , ± 0 . 5 % F S

( Including linearity , hysteresis and repeatability )



Output ( 2 wires ) : 4 … 20mA



Power supply : 12 … 36 VDC ( Or 24VDC )



Ambient Temp : - 25 … 85 ℃



Storage Temp : - 45 … 125 ℃



Humidity : 5 … 95 %



Accuracy of the indicator :

± 2 . 5 % ( 100 % scale )

± 1 . 0 % ( LED )

± 1 . 0 % ( LCD )



Power consume : < 0 . 5 W ( 24VDC )



Process connection : Clamp , flange , screw



Senor : RTD / TC



RTD : Pt100 , Pt1000 , Pt 5000



Tc : K , E , S , J , T , Etc



Range : Optional



Internal cold junction for TC



Material : 304 , 316 Stainless Steel , Corundum Tube , Etc



Diameter : Φ 4 , Φ 6 , Φ 8 , Φ 10 .



With explosion – proof properties



Local Indicator : LCD , LED



Insert depth , the length and diameter size can be customized



Can be anti – corrosion features : to protect pipe line four fluorine



Why choose us



1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: Various style for each products and completely series industry instruments.
6: Large stock for fast shipping .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
