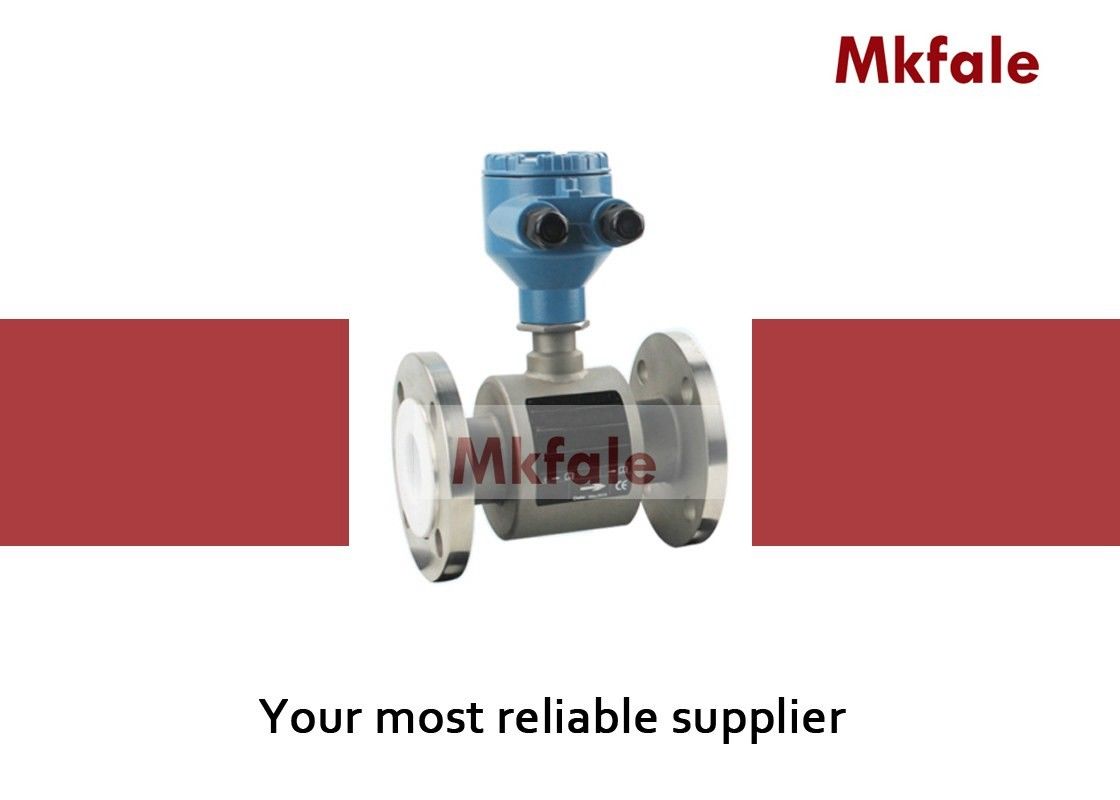

SMEF Remote Separate Type Cold And Heat Measure Function Instrument Flow Meter
Technical Specification Table
| SMEF Electromagnetic Flow Meter |
Remote separate type |
| Application |
Fluid: Any electrically conductive liquid; Conductivity: >=5us/cm;
Temperature: Neoprene/PU: -10C-+60C; PTFE/PFA/F46: -10C-+120C
Standard: JB/T9248-1999
|
| Flange Type |
GB/T9119-2000; JIS 10K; JIS20K; ANSI 150; ANSI 300; DIN Pn10; DIN Pn16; Bs4504; AS4087 |
| Power |
24VDC; 220VAC 50Hz |
|
Output
Communication
|
Flow volume4~20ADC/pulse;
Flow volume4~20ADC/RS232C communication
Flow volume4~20ADC/RS485 communication;
Flow volume HART output/with communication
|
| Converter |
Circular |
| Optional |
Grounding electrode; Coupled flange
Entrance protection flange; Scraper type electrode; Other
|
Description :
Self-diagnosis, intelligent work
Accuracy: +- 5%; Flow rate: +0.3m/s
Low discharge measurement accuracy and two way measurement.
Underground sensor(IP68) installed without building measuring well
Cold and heat measure function
Double frequency excitation, good zero stable
Build-in ground electrode already
Display: Local flow rate & Total & Flow velocity
Nominal Diameter :
DN10~DN3000
Body Material :
Cast steel; SS304; SS316L
Liner Material :
PTFE; PFA; Neoprene; Polyurethane; Ceramic
Electrode Material :
316L; Hastelloy B; Hastelloy C
Titanium; Platinum-iridium; Tantalum
Stainless steel covered with tungsten carbide
Connection Type :
Flange; Clamp; Sanitary; Wafer; Thread
Structure Type :
Integral type; Remote type; Remote type immersion;
Integral type Ex-proof; Remote type Ex-proof
