SMLC Series Water Dispenser Plastic Solenoid Valve Normally Closed 2 Way Special Diaphragm For Foods And Separate Type

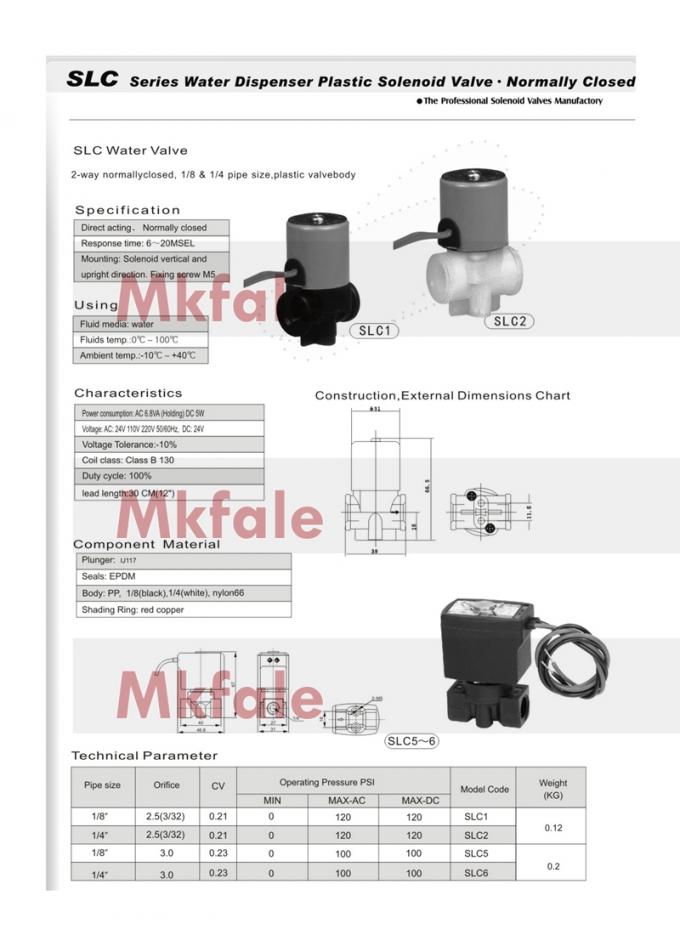

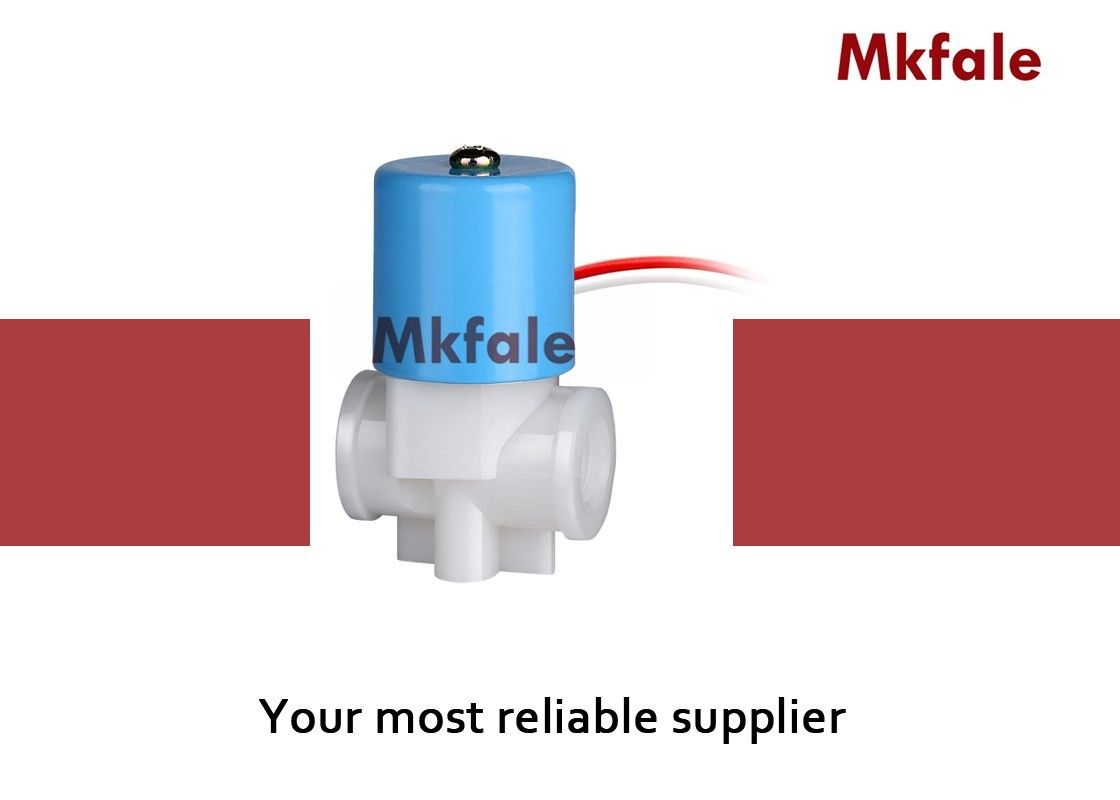

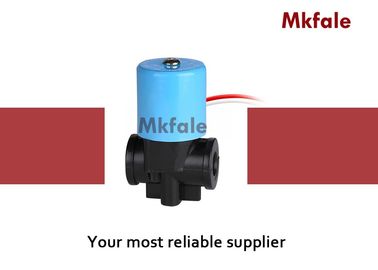

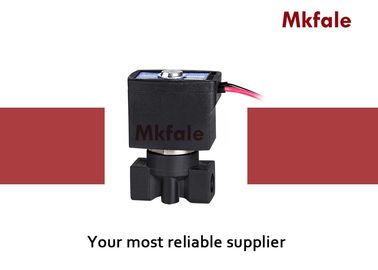

SMLC1 SMLC2 SMLC5 SMLC6
2-way normally closed , 1/8 & 1/4 pipe size , plastic valve body
Specification
Direct acting Normally Closed
Response time : 6~20MSEL
Mounting : Solenoid vertical and upright direction . Fixing screw M5
Using
Fluid media :Water
Fluid Temp :0℃~100 ℃
Ambient Temp :-10 ℃~100 ℃
Characteristics
Power consumption :AC 6.8VA ( Holding ) DC5W
Voltage : AC24V 110V 220V 50/60Hz , DC : 24V
Voltage Tolerance : -10%
Coil class : Class B 130
Duty cycle : 100%
Lead length 30 CM(12")
Component Material
Plunger : IJ117
Seals : EPDM
Body : PP , 1/8(Black) , 1/4(White) , nylon66
Shading Ring : Red copper
Technical Parameter
| Pipe Size |
Orifice |
CV |
Operating Pressure PSI |
Model Code |
| MIN |
MAX-AC |
MAX-DC |
| 1/8” |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC1 |
| 1/4” |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC2 |
| 1/8” |
3.0 |
0.23 |
0 |
120 |
120 |
SMLC5 |
| 1/4” |
3.0 |
0.23 |
0 |
120 |
120 |
SMLC6 |

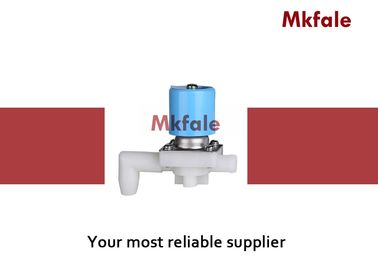

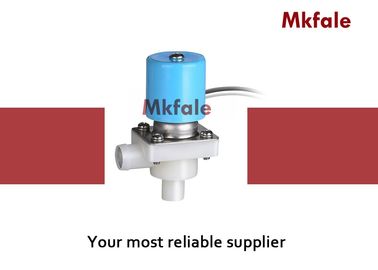

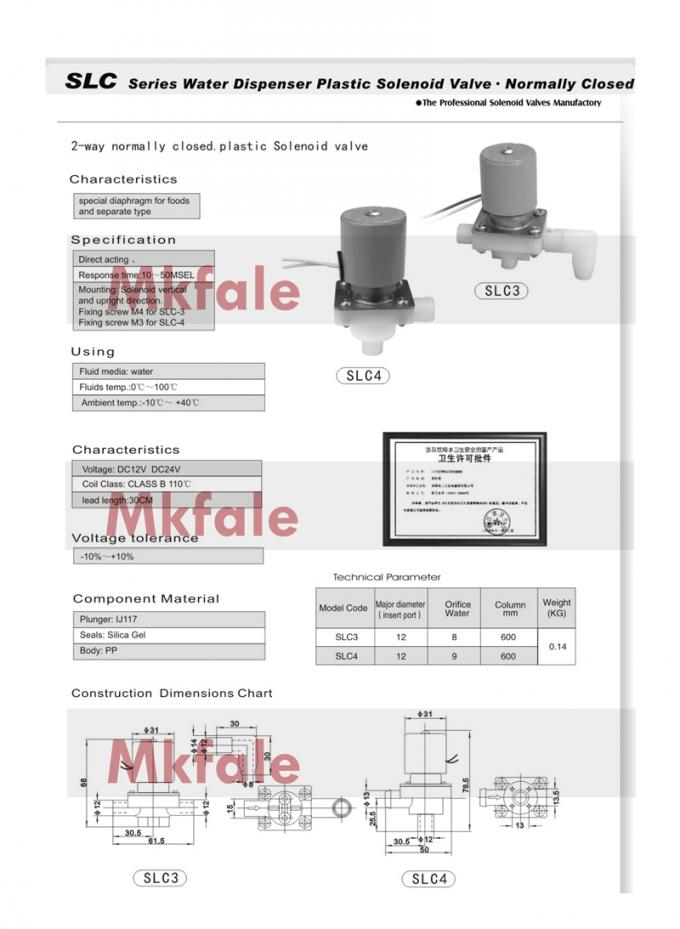

SMLC3 SMLC4
2-Way normally Closed , Plastic Solenoid Valve
Characteristics
Special diaphragm for foods and separate type
Specification
Direct acting
Response time : Solenoid Vertical
Mounting : Solenoid Vertical and upright direction
Fixing screw M4 for SLC-3
Fixing Screw M3 for SLC-4
Using
Fluid media : Water
Fluids Temp : 0℃ ~ 100℃
Ambient Temp : -10℃ ~ +40℃
Characteristics
Voltage : DC12V DC24V
Coil Class : Class B 110℃
Lead Length : 30CM
Voltage tolerance
-10% ~ +10%
Component Material
Plunger : IJ117
Seals : Silica Gel
Body : PP
Techinical Parameter
| Model Code |
Major Diameter (insert port ) |
Orifice Water |
Column mm |
| SMLC3 |
12 |
8 |
600 |
| SMLC4 |
12 |
9 |
600 |

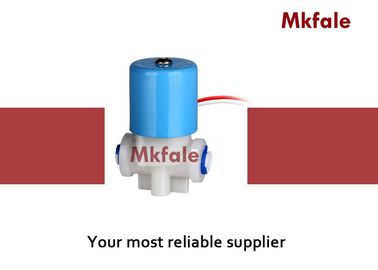

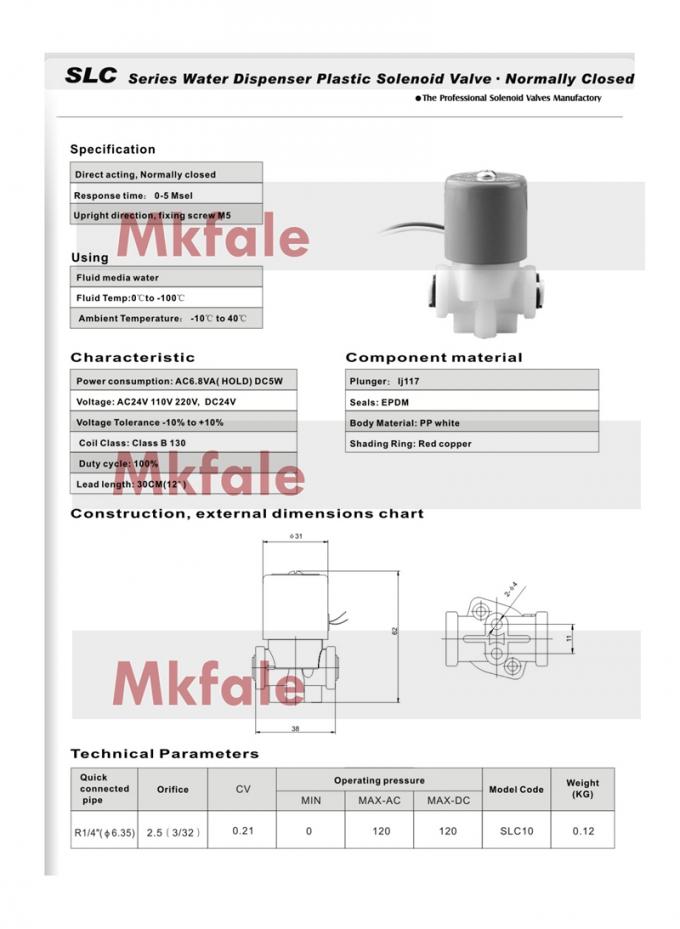

SMLC10
Specification
Direct acting , Normally Closed
Response time : 0-5Msel
Upright direction , Fixing Screw M5
Using
Fluid media water
Fluid Temp : 0℃ to 100℃
Ambient Temperature : -10℃ to 40℃
Characteristic
Power consumption : AC6.8VA (HOLD) DC5W
Voltage : AC24V 110V 220V , DC24V
Voltage Tolerance -10% to + 10 %
Coil Class : Class B 130
Duty cycle : 100%
Lead length : 30cm (12")
Component Material
Plunger : IG117
Seals : EPDM
Body Material : PP white
Shading Ring : Red copper
Technical Parameters
| Quick Connected Pipe |
Orifice |
CV |
Operating Pressure |
Model Code |
| MIN |
MAX-AC |
MAX-DC |
| R1/4” (φ6.35) |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC10
|
