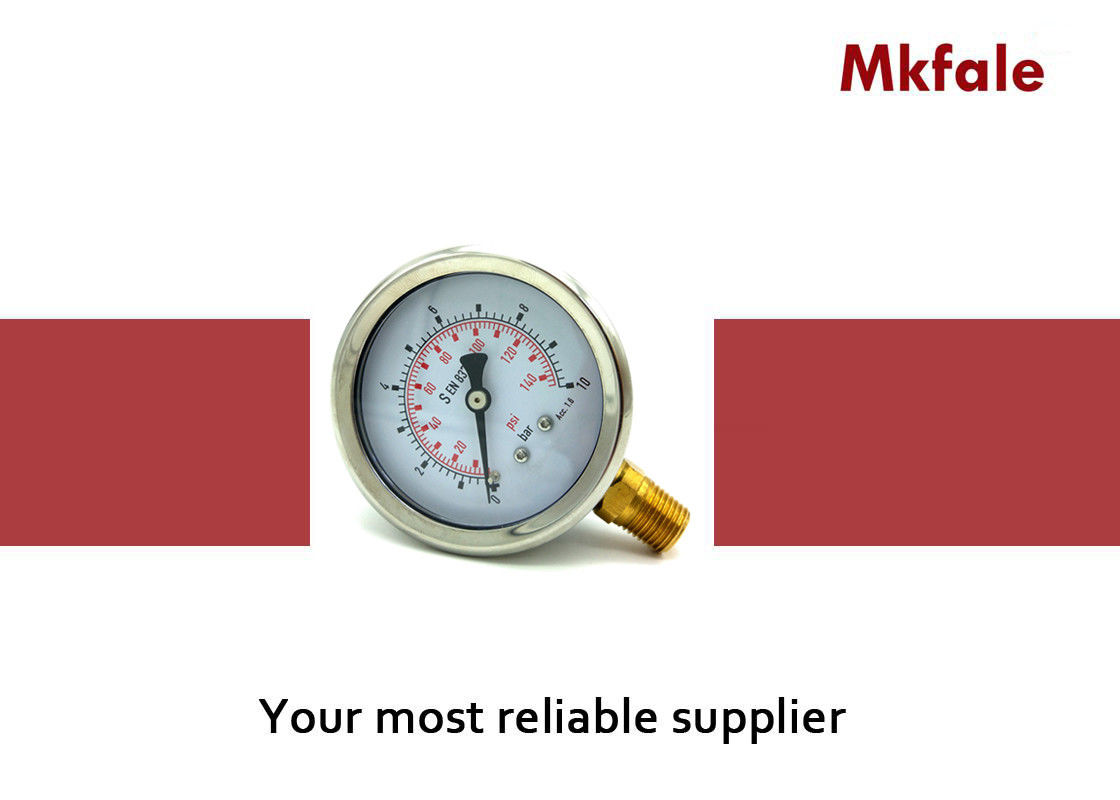

SM1SP - 63mm L / B Liquid Filled Pressure Gauge For Extreme Vibration Application
ONE PIECE CONNECTION STAINLESS STEEL CASE DESIGN
SM1SP One piece connection with crimped case design
A special design with stainless steel case and copper alloy wetted part and fillable option for
extreme vibration aplication and non-corrosive ambient field condition,with bayonet lock
case design.applicable for pneumatic and hydraulic systems, compressors, engines, pumps,
sprinkles system,building automation system and processing unit where vibration is
Accuracy class 1.6,class 1.0, Wide range vibration application
Stainless steel case design, Knock-down system back and front flange
Crimped lock case design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Excellent vibration resist with liquid filling
Design scale ranges up to 600 bar
Technical Specification :
Nominal Size : 63,100 150mm
Accuracy Class : Class 1.6,Class 1.0(Φ>100mm)
Ingress Protection. : IP65 (Weather tight)
Connection Size : G1/4,G1/2 or NPT
Scale Range : Pressure 0..1000 bar, Vacuum -1 bar..0, Compound -1..24 bar
Tube Element Shape : P≤100 bar in c tube, P＞100 bar in helicoil
Filling : Dry or liquid filled
Operating Temperature : Ambient temperature -10° ..+70° C, Medium temperature 90° C Max.
Temperature Error : Additional error when pressure element tmperature deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
Over Pressure Limit : 130% of F.S.P≤100 bar, 115% of F.S.P＞100bar
|Design Material||Casing and Bezel Ring||Casing and Bezel Ring, SS304|
|Sensing Element||Copper alloy|
|Window gasket||Industrial rubber seal|
|Pointer||Black painted aluminium|
|Dial Plate||Aluminium alloy|
L:Bottom entry, W:Bottom with back flange, B:Back entry(centre-back,cower-back)
F:Back with front flange, Z:Back with bracket
